Dell S2722DGM - Pin Assignments

About your monitor | 19

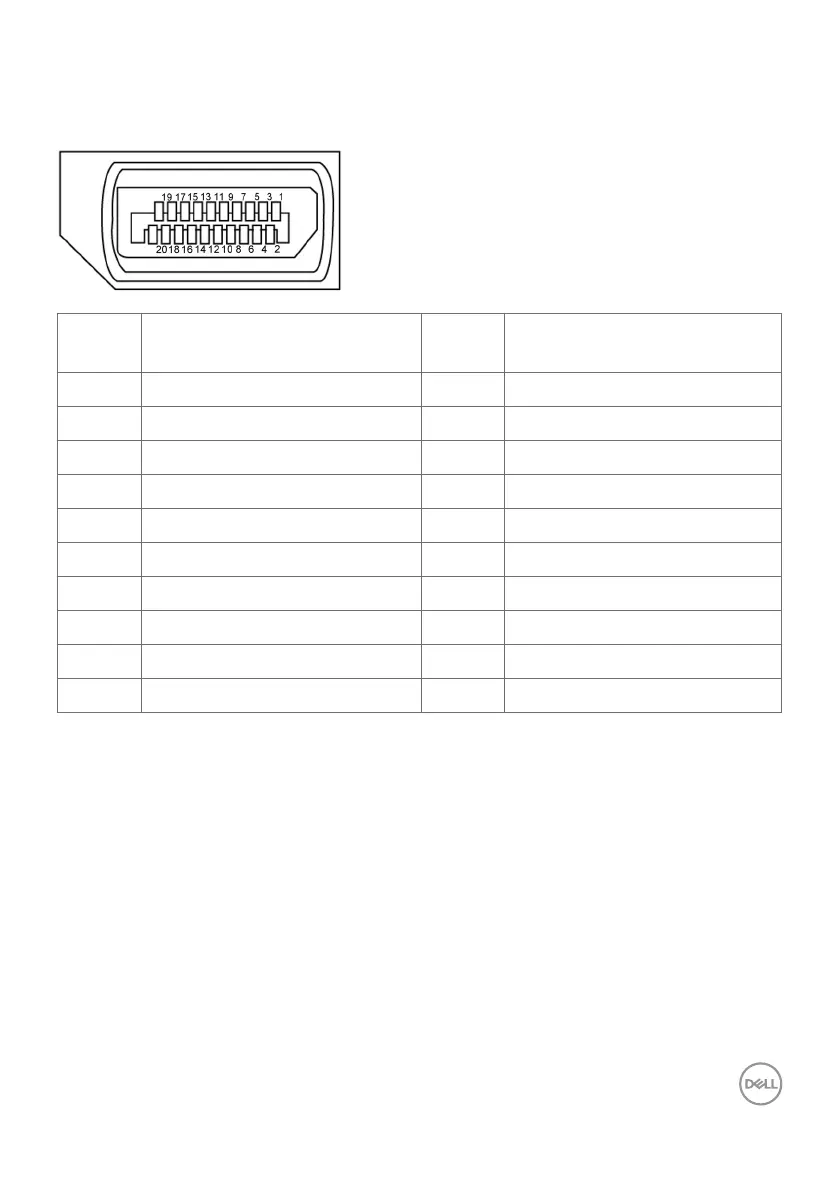

Pin assignments
DisplayPort
Pin
number
20-pin side of theconnected
signal cable
Pin
number
20-pin side of theconnected
signal cable
1 ML3 (n) 11 GND
2 GND 12 ML0 (p)
3 ML3 (p) 13 CONFIG1
4 ML2 (n) 14 CONFIG2
5 GND 15 AUX CH (p)
6 ML2 (p) 16 GND
7 ML1 (n) 17 AUX CH (n)
8 GND 18 Hot Plug Detect
9 ML1 (p) 19 Return
10 ML0 (n) 20 DP_PWR
