Dell SC5020 User Manual

4. Engage the front end of the rail until it fully seats and the latch locks into place.
5. Align the system with the rails and slide the storage system into the rack

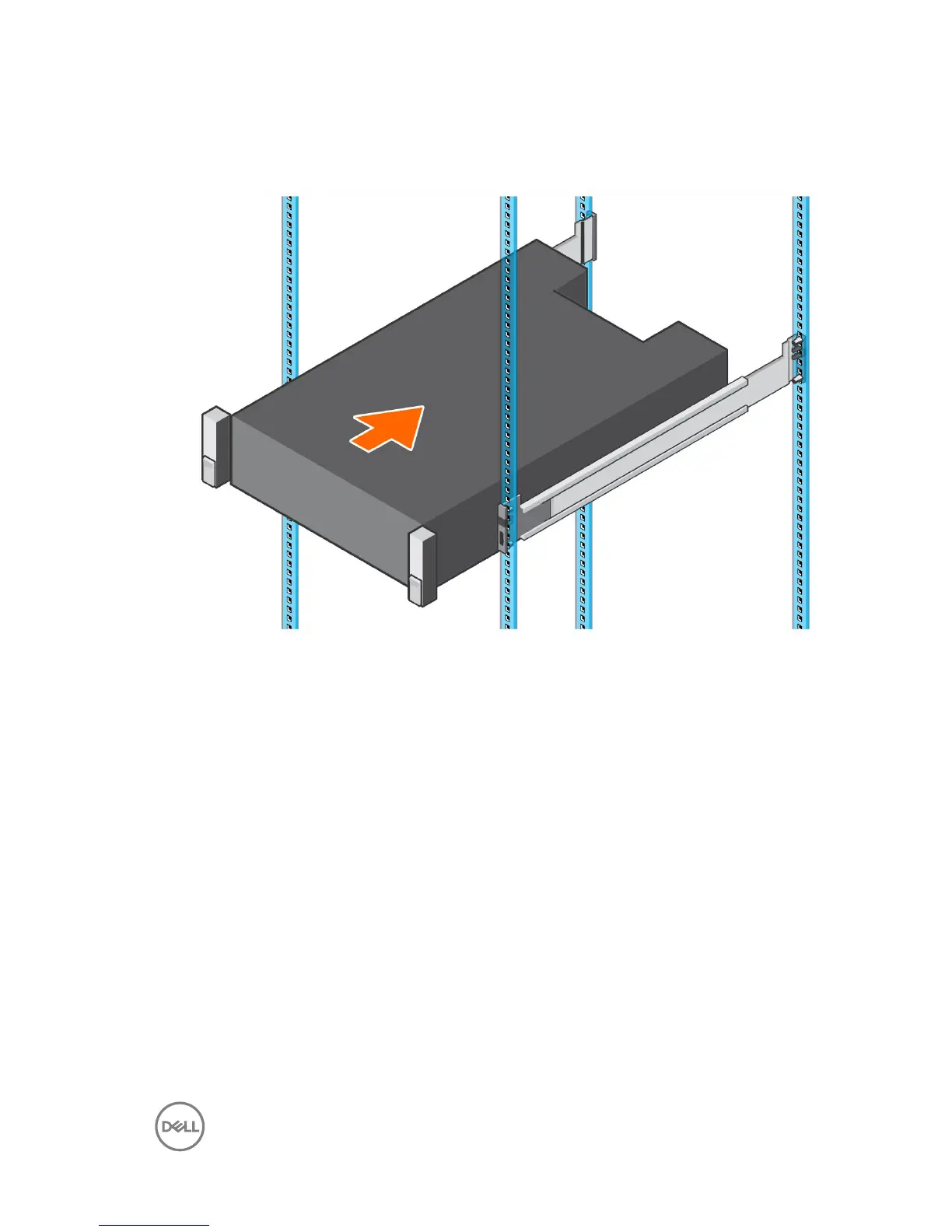

Figure 3. Slide the Storage System Onto the Rails
6. Lift the latches on each side of the front panel and tighten the screws to the
rack.
7

Dell SC5020 Specifications

General

Form Factor	2U
Controllers	Dual controllers
RAID Levels	RAID 0, 1, 5, 6, 10
Drive Bays	30 x 2.5-inch drives
Host Connectivity	8 x 16Gb Fibre Channel or 8 x 10Gb iSCSI
Product Type	Storage Array
Power Supply	Dual, hot-swappable
