Dell SCv2080 Getting Started Guide

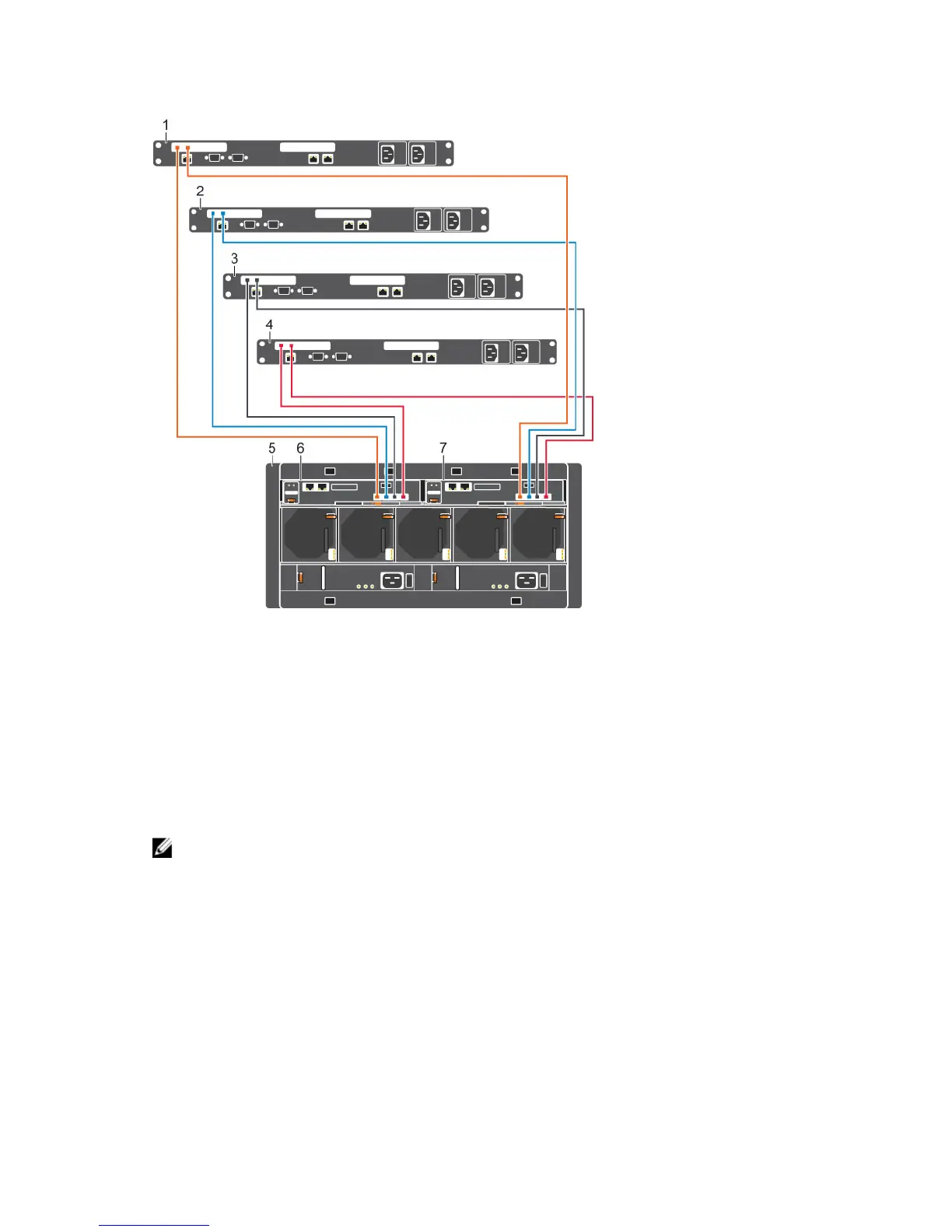

Figure 5. Storage System Connected Directly to Host Servers
1. Server 1 2. Server 2
3. Server 3 4. Server 4
5. SCv2080 storage system 6. Storage controller 1
7. Storage controller 2
Cabling the Ethernet Management Network
The Ethernet management (MGMT) interface of each storage controller must be connected to a
management network.
NOTE: The left storage controller is storage controller 1 and the right storage controller is storage
controller 2.
1. Connect an Ethernet cable from the MGMT port on storage controller 1 to the management network
switch.
2. Connect an Ethernet cable from the MGMT port on storage controller 2 to the management network
switch.
14
