Dell SCv2080 - SCv2080 Storage System Front-Panel Features and Indicators

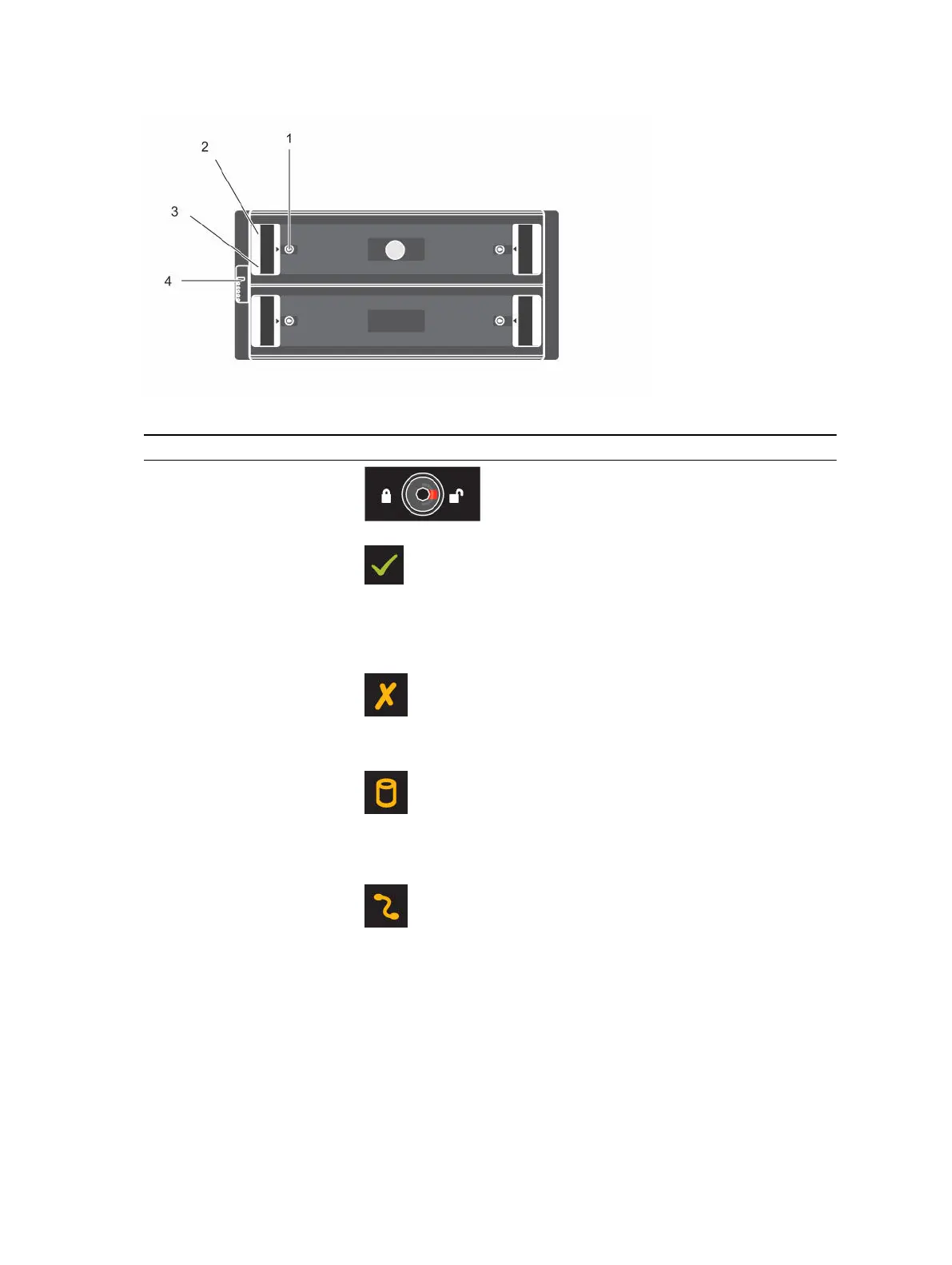

Figure 1. SCv2080 Storage System Front-Panel Features and Indicators
Item Name Panel Description
1 Drawer-specific
anti-tamper locks
Locks the drawer shut using a Torx T20
screwdriver until the red arrows point to the
locked icon (away from the center of the
chassis).
2 Drawer-specific
left and right side
status indicators
• Sideplane OK/Power Good
– Off — Sideplane card or cable fault
– Green — Sideplane card and cable are
functional (though a fault may be
indicated by one or more of the
following LEDs)
• Drawer Fault
– Amber — Sideplane card fault or drive
failure causing loss of availability or
redundancy
• Logical Fault
– Amber (steady) — Host indicated drive
fault
– Amber (flashing) — Arrays in impacted
state
• Cable Fault
– Amber — Cable fault
