Dell SCv2080 User Manual

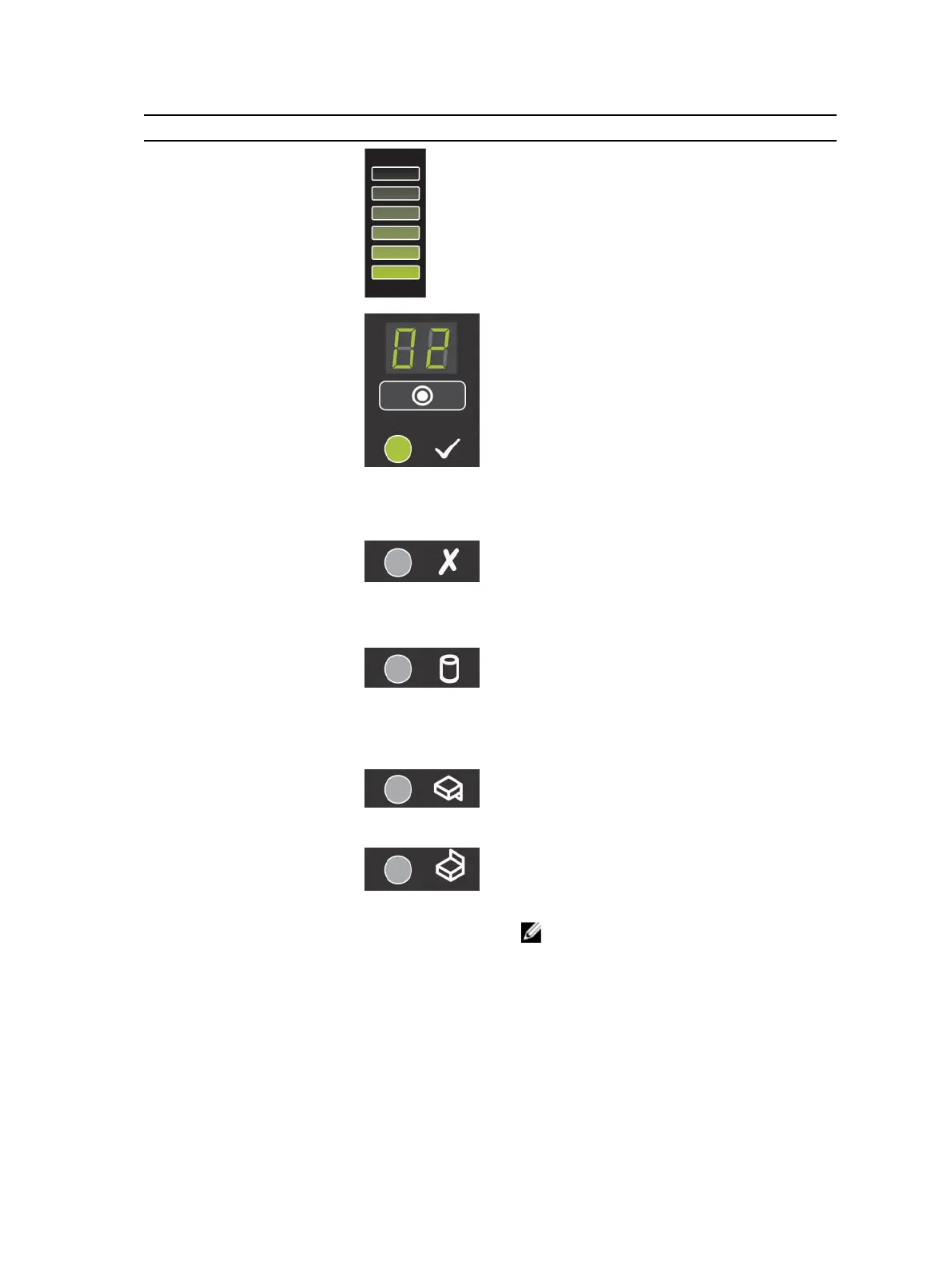

Item Name Panel Description
3 Drawer-specific
left and right side
storage system
activity indicators
Activity Bar Graph — Six variable-intensity
LEDs dynamically displaying access of the
drives in that specific drawer
4 Status indicator
for storage
system
• Unit ID Display — Numerical display
primarily used to display the unit
identification number
• Input Switch — Not used
• Power On/Standby
– Off — Storage system does not have
power
– Green — Storage system is on
(operational)
– Amber — Storage system is in standby
mode (not operational)
• Module Fault
– Amber — Hardware fault (an LED may
be lit on a PSU, drawer, DDIC, fan
module, or IO module indicating the
part at fault)
• Logical Status
– Amber — Change of status or fault from
something other than the storage
system itself (this status is typically
associated with a disk drive as indicated
by its own fault LED)
• Drawer 1 Fault
– Amber — Drive, cable, or sideplane fault
has occurred in drawer 1
• Drawer 2 Fault
– Amber — Drive, cable, or sideplane fault
has occurred in drawer 2
NOTE: Both drawer fault LEDs (and all
contained DDIC LEDs) flash when the
storage system indicator is set to On in
Dell Storage Client.
About the SCv2080 Storage System
9
