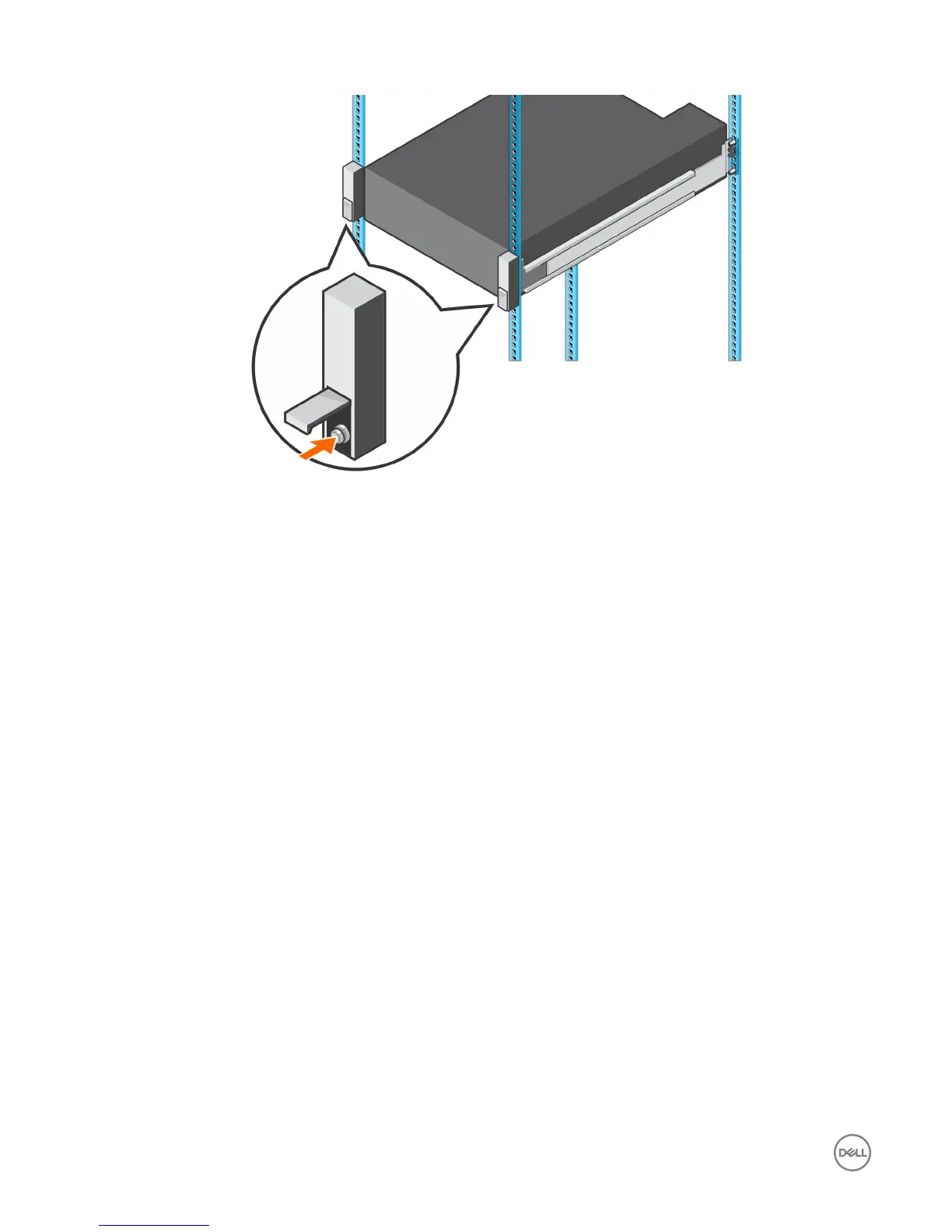

Figure 10. Loosen the Screws
4. Remove the storage system from the rack.
5. Remove the rack rails from the rack.
Install the Rack Rails
Perform the following steps to install rack rails for an SCv3000 and SCv3020 storage system.
Steps
1. Install the replacement rack rails in the rack.
2. Install the storage system in the rack.
3. Tighten the screws in the chassis ears that secure the chassis to the rack.
16
Replacing SCv3000 and SCv3020 Storage System Components

Dell SCv3020 Specifications

General

Controller	Dual controllers
RAID Support	RAID 0, 1, 5, 6, 10
Product Type	Storage array
Processor	Intel Xeon
Form Factor	2U
Maximum Capacity	460TB
Memory	64GB per controller
Connectivity	iSCSI, Fibre Channel, SAS
Power Supply	Dual, hot-plug, redundant power supply (1+1)
Drive Support	SAS
Protocols	iSCSI, FC
Operating System	Storage Center Operating System (SCOS)
