Dell SCv3020 User Manual

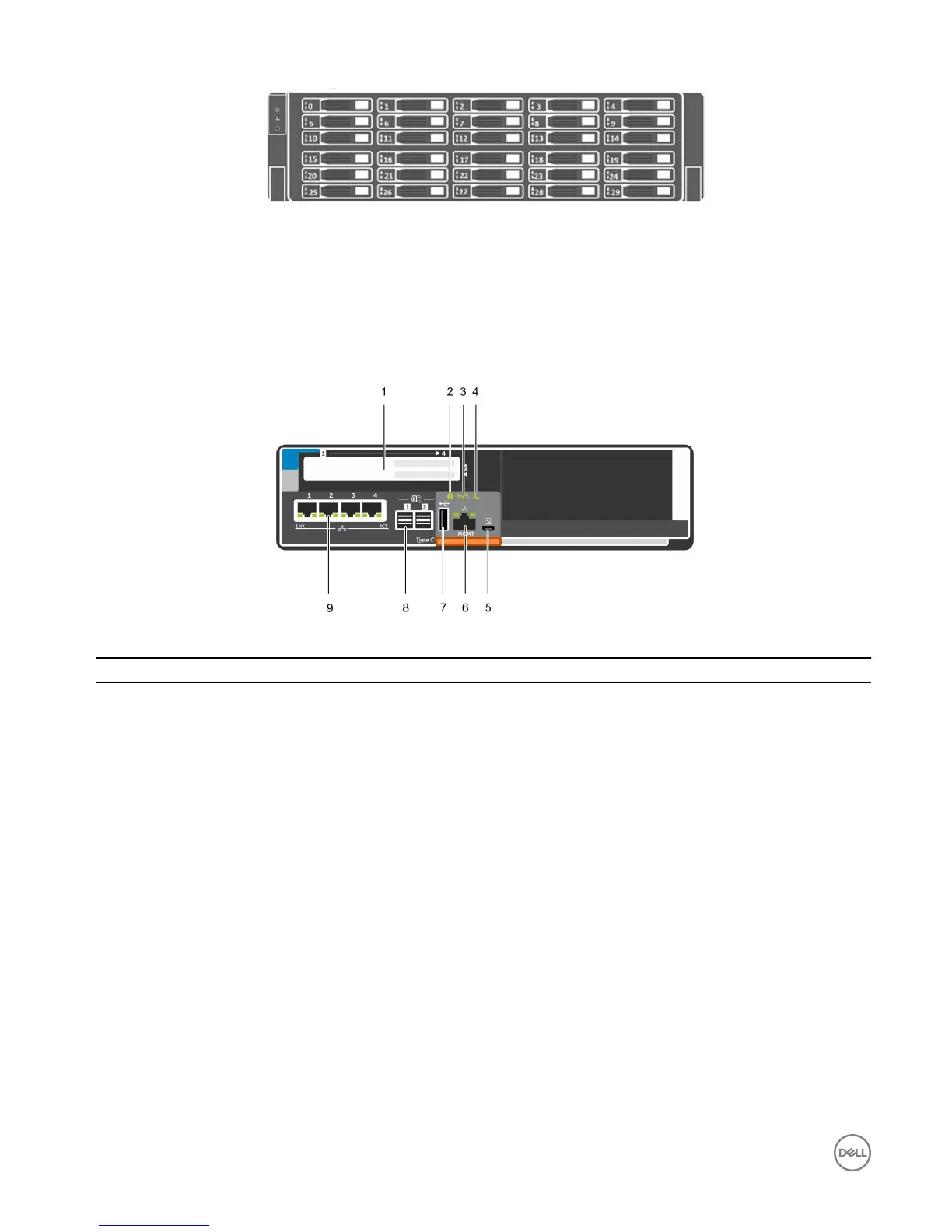

Figure 5. SCv3020 Storage System Drive Numbering
SCv3000 and SCv3020 Storage Controller Features and Indicators
The SCv3000 and SCv3020 storage system includes two storage controllers in two interface slots.
SCv3000 and SCv3020 Storage Controller
The following gure shows the features and indicators on the storage controller.
Figure 6. SCv3000 and SCv3020 Storage Controller
Item
Control/Feature Icon Description
1 I/O card slot
Fibre Channel I/O card – Ports are numbered 1 to 4 from left to right
• The LEDs on the 16 Gb Fibre Channel ports have the following meanings:
– All o – No power
– All on – Booting up
– Blinking amber – 4 Gbps activity
– Blinking green – 8 Gbps activity
– Blinking yellow – 16 Gbps activity
– Blinking amber and yellow – Beacon
– All blinking (simultaneous) – Firmware initialized
– All blinking (alternating) – Firmware fault
• The LEDs on the 32 Gb Fibre Channel ports have the following meanings:
– All o – No power
– All on – Booting up
– Blinking amber – 8 Gbps activity
– Blinking green – 16 Gbps activity
– Blinking yellow – 32 Gbps activity
– Blinking amber and yellow – Beacon
– All blinking (simultaneous) – Firmware initialized
– All blinking (alternating) – Firmware fault
8
SCv3000 and SCv3020 Storage System Hardware

Dell SCv3020 Specifications

General

Controller	Dual controllers
RAID Support	RAID 0, 1, 5, 6, 10
Product Type	Storage array
Processor	Intel Xeon
Form Factor	2U
Maximum Capacity	460TB
Memory	64GB per controller
Connectivity	iSCSI, Fibre Channel, SAS
Power Supply	Dual, hot-plug, redundant power supply (1+1)
Drive Support	SAS
Protocols	iSCSI, FC
Operating System	Storage Center Operating System (SCOS)
