Dell SCv3020 User Manual

1
SCv3000 and SCv3020 Storage System Hardware
The SCv3000 and SCv3020 storage system ships with Dell Enterprise Value drives, two redundant power supply/cooling fan
modules, and two redundant storage controllers.
Each storage controller contains the front-end, back-end, and management communication ports of the storage system.
SCv3000 and SCv3020 Storage System Front-Panel View
The front panel of the storage system contains power and status indicators, and a system identication button.
In addition, the hard drives are installed and removed through the front of the storage system chassis.

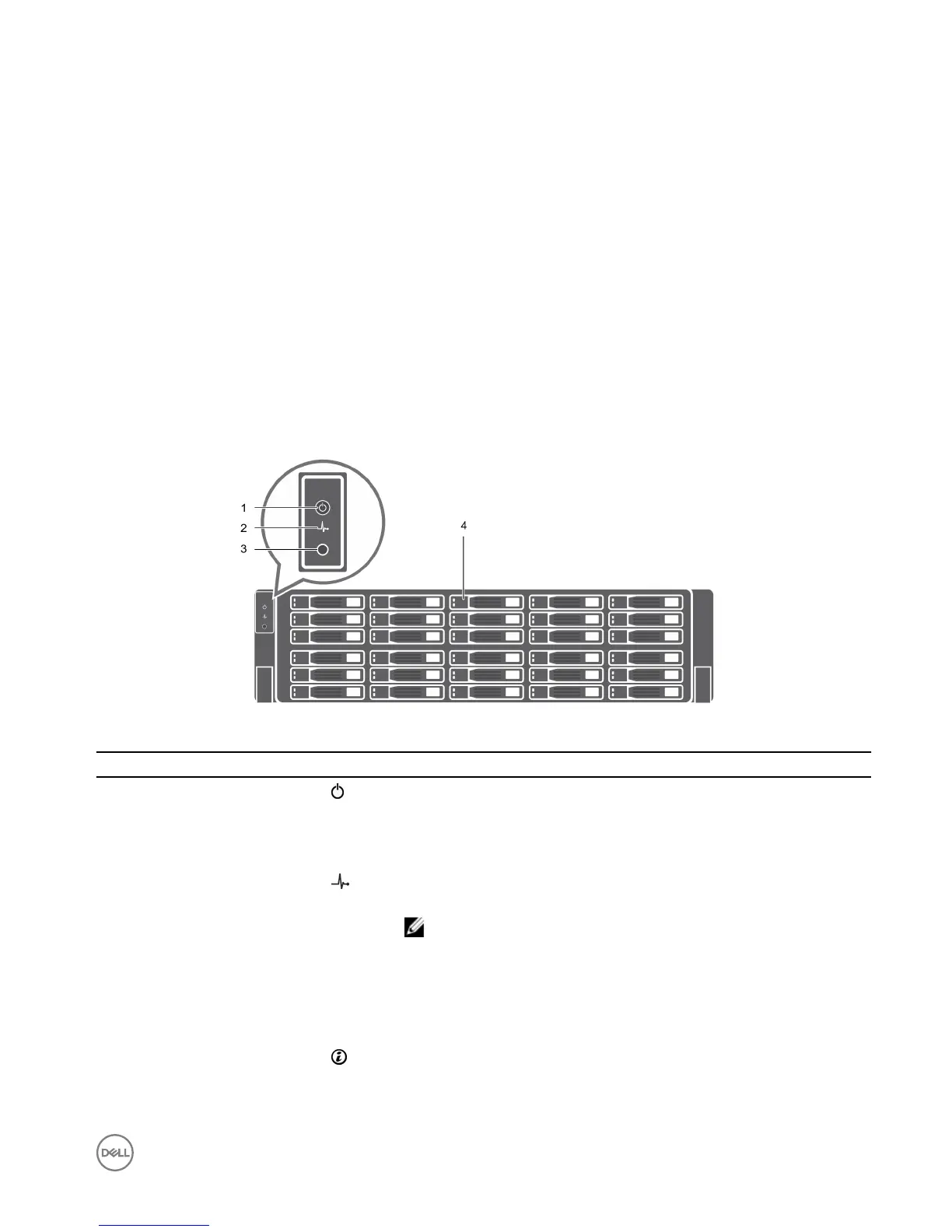

Figure 1. SCv3000 and SCv3020 Storage System Front-Panel View
Item
Name Icon Description
1 Power indicator Lights when the storage system power is on
• O – No power
• On steady green – At least one power supply is providing power to the
storage system
2 Status indicator Lights when the startup process for both storage controllers is complete with
no faults detected.
NOTE: The startup process can take 5–10 minutes or more.
• O – One or both storage controllers are running startup routines, or a
fault has been detected during startup
• On steady blue – Both storage controllers have completed the startup
process and are in normal operation
• Blinking amber – Fault detected
3 Identication button Blinking blue continuously – A user sent a command to the storage system to
make the LED blink so that the user can identify the storage system in the
rack.
SCv3000 and SCv3020 Storage System Hardware
5

Dell SCv3020 Specifications

General

Controller	Dual controllers
RAID Support	RAID 0, 1, 5, 6, 10
Product Type	Storage array
Processor	Intel Xeon
Form Factor	2U
Maximum Capacity	460TB
Memory	64GB per controller
Connectivity	iSCSI, Fibre Channel, SAS
Power Supply	Dual, hot-plug, redundant power supply (1+1)
Drive Support	SAS
Protocols	iSCSI, FC
Operating System	Storage Center Operating System (SCOS)
