Dell SCv3020 User Manual

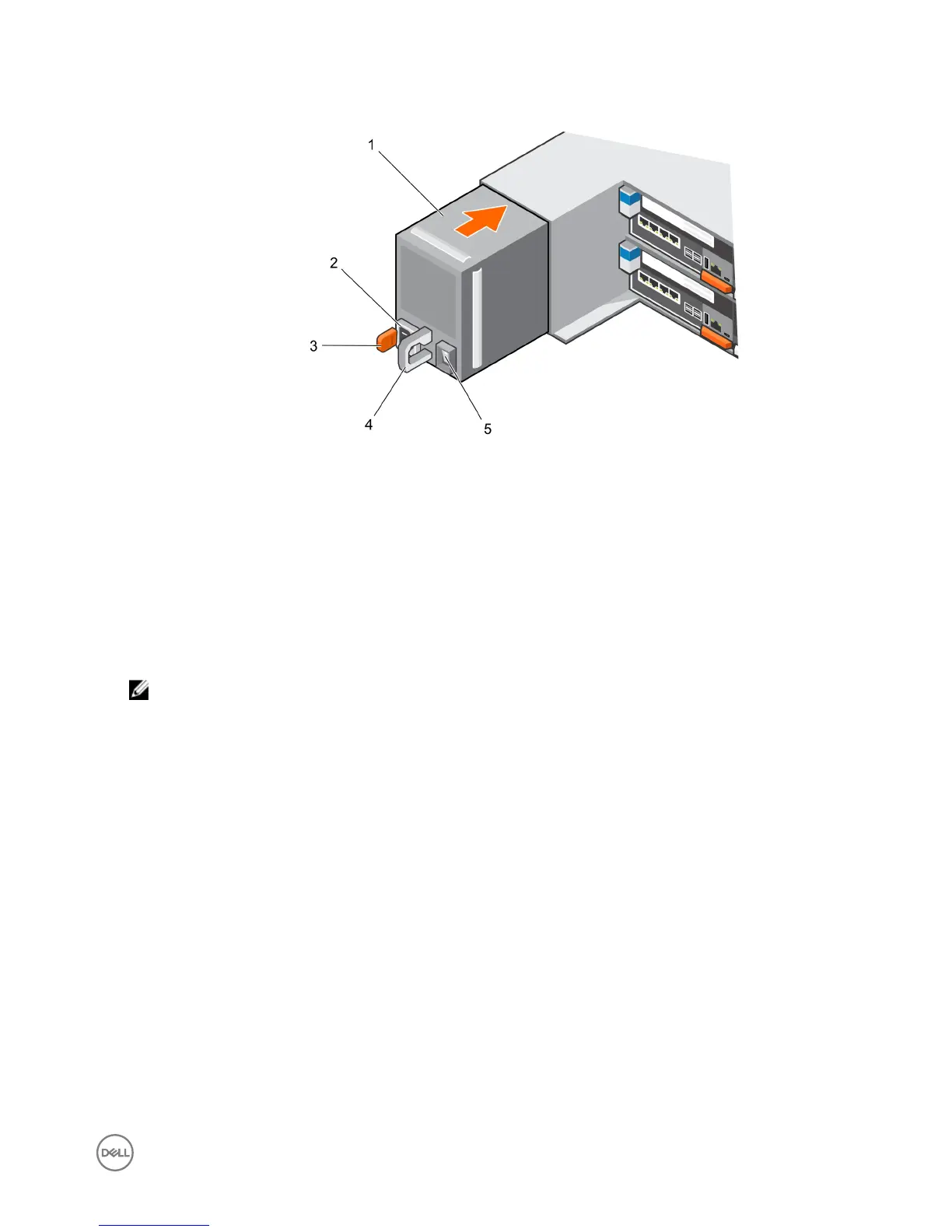

Figure 13. Removing a Power Supply/Cooling Fan Module
1. Power supply/cooling fan module 2. Power socket
3. Release tab 4. Power supply/cooling fan module LED handle
5. Power switch
4. Slide the replacement power supply/cooling fan module into the chassis until it is fully seated and the release tab clicks into
place.
5. Connect the power cable to the power supply/cooling fan module and make sure the cable is plugged into a power outlet.
6. Secure the power cable using the hook-and-loop strap.
7. Press the power switch on the power supply/cooling fan module to turn it on.
NOTE: Allow several seconds for the storage system to recognize the power supply/cooling fan module and
determine its status. When the power supply/cooling fan module is functioning properly, the AC power status
indicator turns green and the power supply/cooling fan status indicator is o.
8. In Dell Storage Manager, make sure that the replacement power supply is recognized and shows as up and running.
Next step
1. Use Dell Storage Manager to edit the Storage Center settings and set the operation mode of the Storage Center to Normal
mode.
2. Use Dell Storage Manager to send SupportAssist information to Dell Technical Support.
Replacing SCv3000 and SCv3020 Storage System Components
19

Dell SCv3020 Specifications

General

Controller	Dual controllers
RAID Support	RAID 0, 1, 5, 6, 10
Product Type	Storage array
Processor	Intel Xeon
Form Factor	2U
Maximum Capacity	460TB
Memory	64GB per controller
Connectivity	iSCSI, Fibre Channel, SAS
Power Supply	Dual, hot-plug, redundant power supply (1+1)
Drive Support	SAS
Protocols	iSCSI, FC
Operating System	Storage Center Operating System (SCOS)
