Dell Secure Mobile Access 6200/7200 Getting Started Guide
12

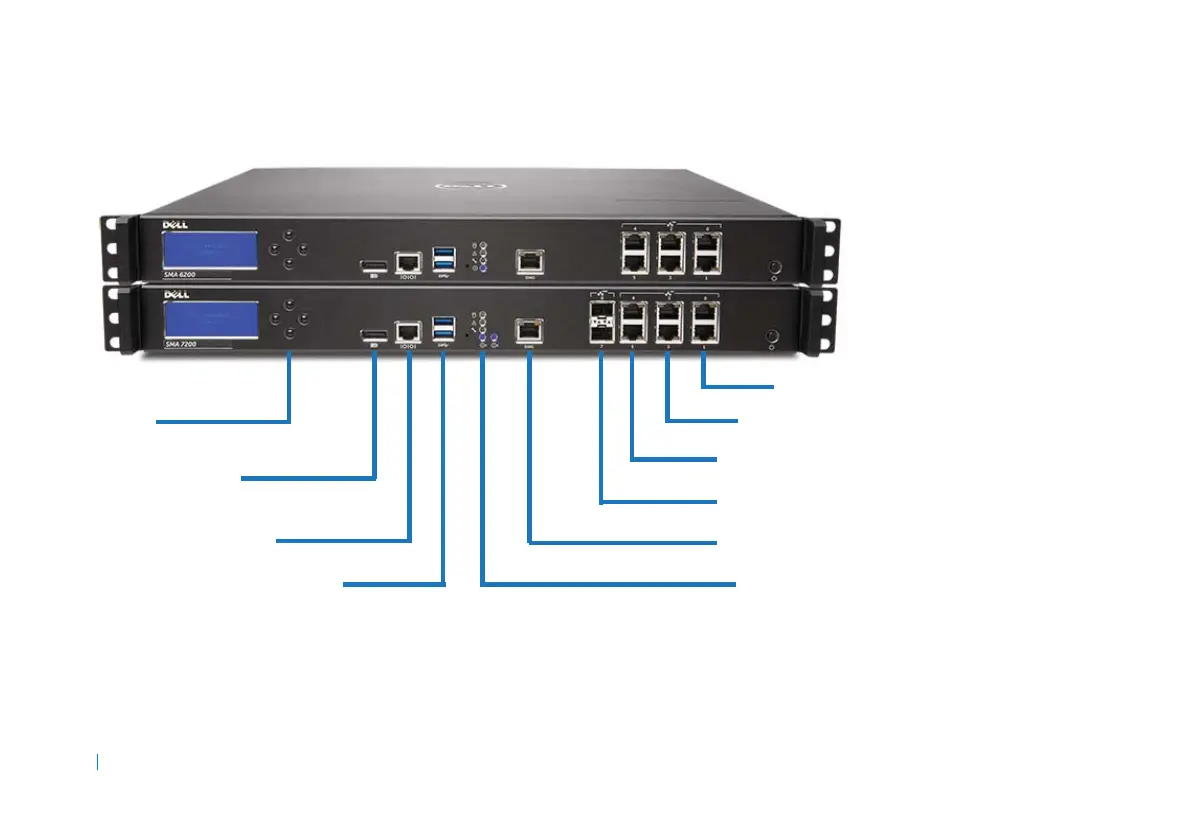

SMA 6200/7200 front panels
LCD controls
Console port
DisplayPort
USB ports
LED Indicators
(top to bottom)
Hard disk drive activity
Alarm condition
Test - Quick blinking: Initializing;
Solid: Test mode
Power 1/2 - Blue: operating correctly;
Yellow: Unconnected power supply or failure
X1 / X0
X3 / X2
X5 / X4
SFP+ ports
(10 Gb)
Diagnostics port (for future use)
(1 Gb)
(1 Gb)
(1 Gb)
Digital audio/video
