 Top Cover
Dell™StudioXPS™8100ServiceManual
Removing the Top Cover
Replacing the Top Cover




Removing the Top Cover

1. Follow the procedures in Before You Begin.

2. Remove the computer cover (see Removing the Computer Cover).

3. Remove the front bezel (see Removing the Front Bezel).

4. Remove the optical drive (see Removing the Optical Drive).


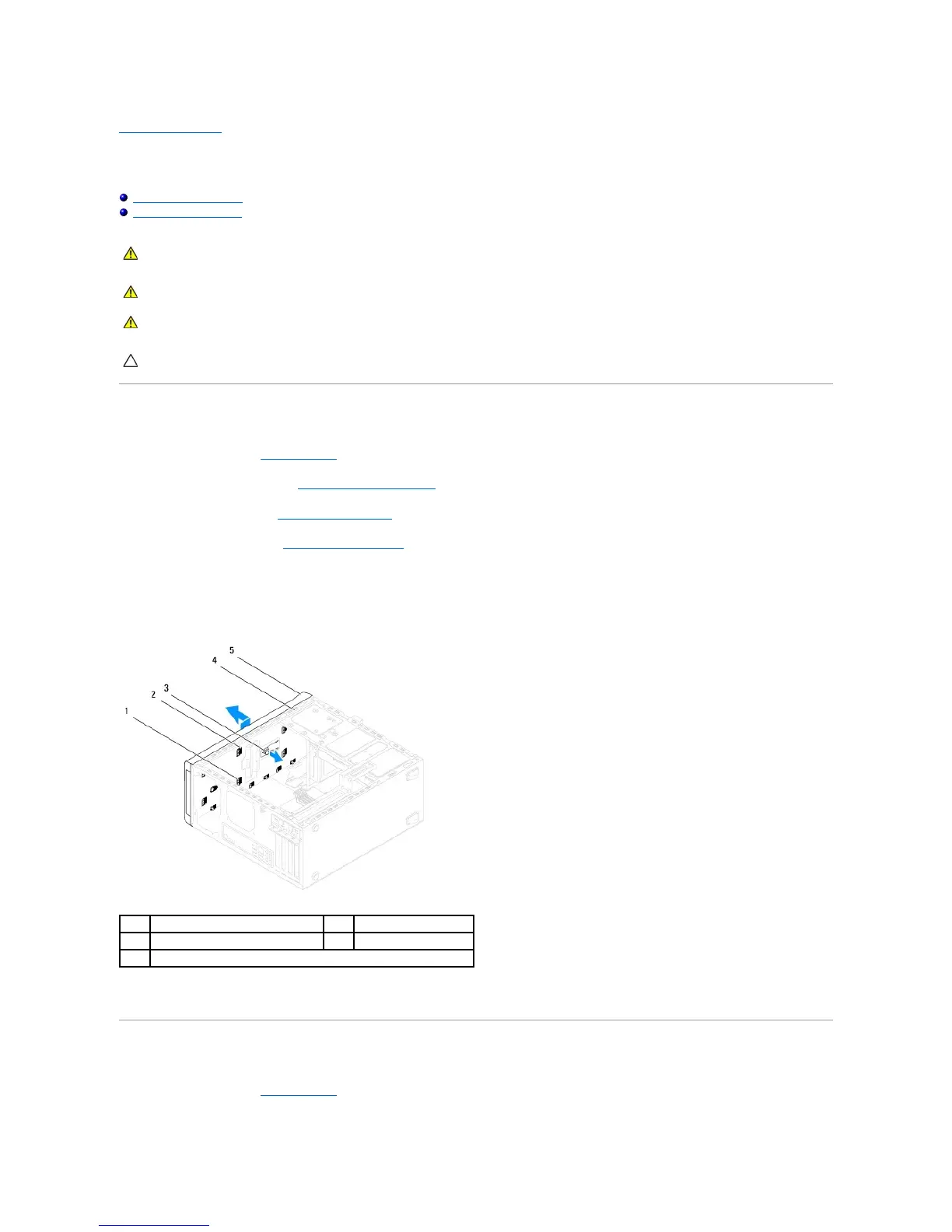

5. Pull the release tab, and slide the top cover towards the front of the computer to release the top cover tabs from the slots on the top panel.

6. Pull the top cover away from the top panel.

7. Set the top cover aside in a secure location.
Replacing the Top Cover

1. Follow the procedures in Before You Begin.

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the cover.
WARNING: Do not operate your computer with any cover(s) (including computer covers, bezels, filler brackets, front-panel inserts, etc.)
removed.
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
1
top cover tabs
2
slots
3
release tab
4
top panel
5
top cover

Dell Studio XPS 8100 Specifications

General

Optical Drive	16x DVD+/-RW Drive
Audio	Integrated 7.1 Channel Audio
Networking	Integrated 10/100/1000 Ethernet
Processor	Intel Core i5 or i7
Chipset	Intel H57
Memory	Up to 16GB DDR3 SDRAM
Storage	Up to 2TB HDD
Graphics	NVIDIA GeForce GT 220 or ATI Radeon HD 5770
Ports	8 x USB 2.0, 1 x eSATA, 1 x HDMI
Operating System	Windows 7 Home Premium
