Dell U2413 - Pin Assignments

Pin Assignments

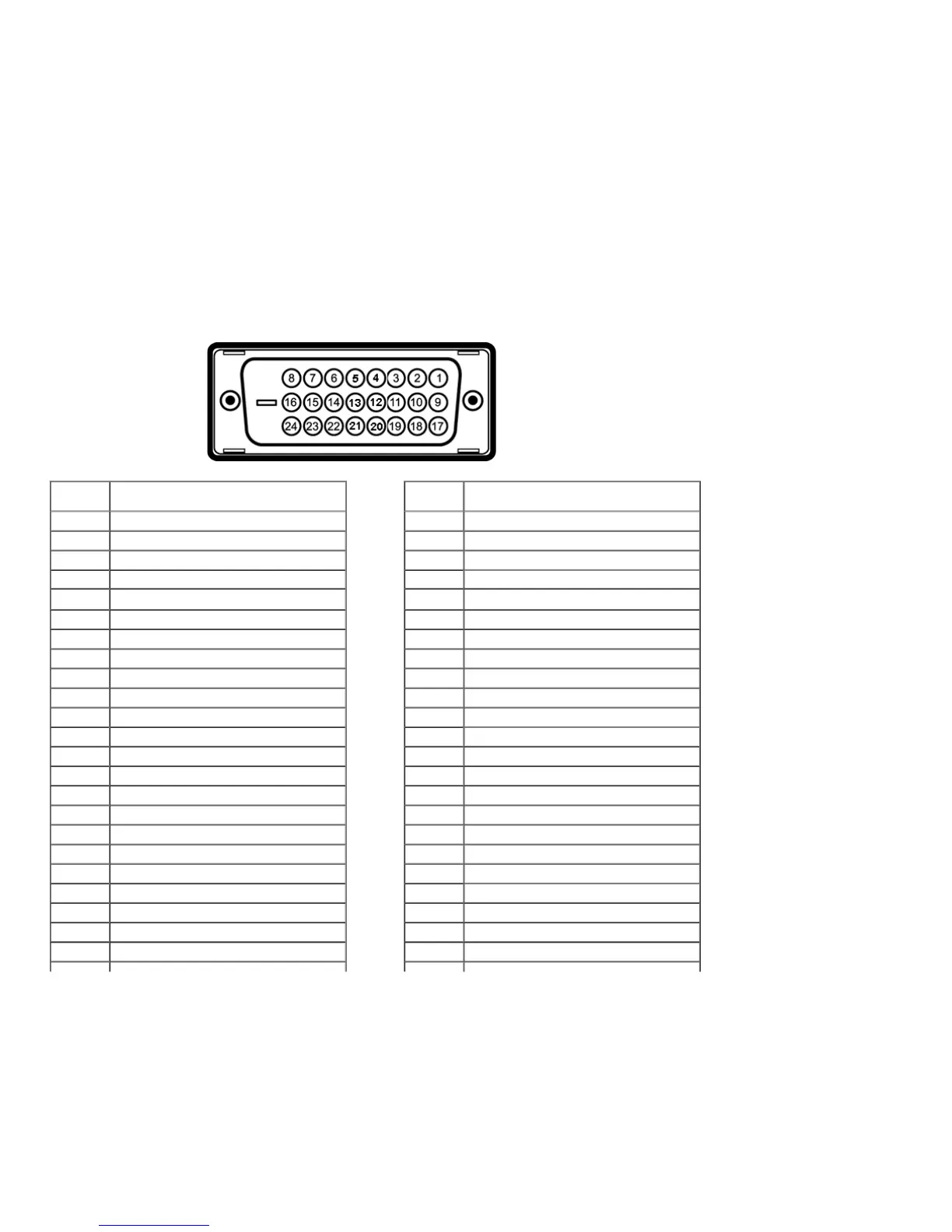

U2413 DVI Connector U2713H DVI (Dual link) Connector
Pin
Number
24-pin Side of the Connected Signal Cable
1 TMDS RX2-
2 TMDS RX2+
3 TMDS Ground
4 No Connection
5 No Connection
6 DDC Clock
7 DDC Data
8 No Connection
9 TMDS RX1-
10 TMDS RX1+
11 TMDS Ground
12 No Connection
13 No Connection
14 +5 V power
15 Self test
16 Hot Plug Detect
17 TMDS RX0-
18 TMDS RX0+
19 TMDS Ground
20 No Connection
21 No Connection
22 TMDS Ground
23 TMDS Clock+
Pin
Number
24-pin Side of the Connected Signal Cable
1 TMDS RX2-
2 TMDS RX2+
3 TMDS Ground
4 TMDS RX4-
5 TMDS RX4+
6 DDC Clock
7 DDC Data
8 No Connection
9 TMDS RX1-
10 TMDS RX1+
11 TMDS Ground
12 TMDS RX3-
13 TMDS RX3+
14 +5 V power
15 Self test
16 Hot Plug Detect
17 TMDS RX0-
18 TMDS RX0+
19 TMDS Ground
20 TMDS RX5-
21 TMDS RX5+
22 TMDS Ground
23 TMDS Clock+
