34 | Setting Up the Monitor
Wall Mounting (Optional)
(Screw dimension: M4 x 10 mm).
Refer to the instructions that come with the VESA-compatible wall mounting kit.
1 Place the monitor panel on a soft cloth or cushion on a stable, flat table.
2 Remove the stand.

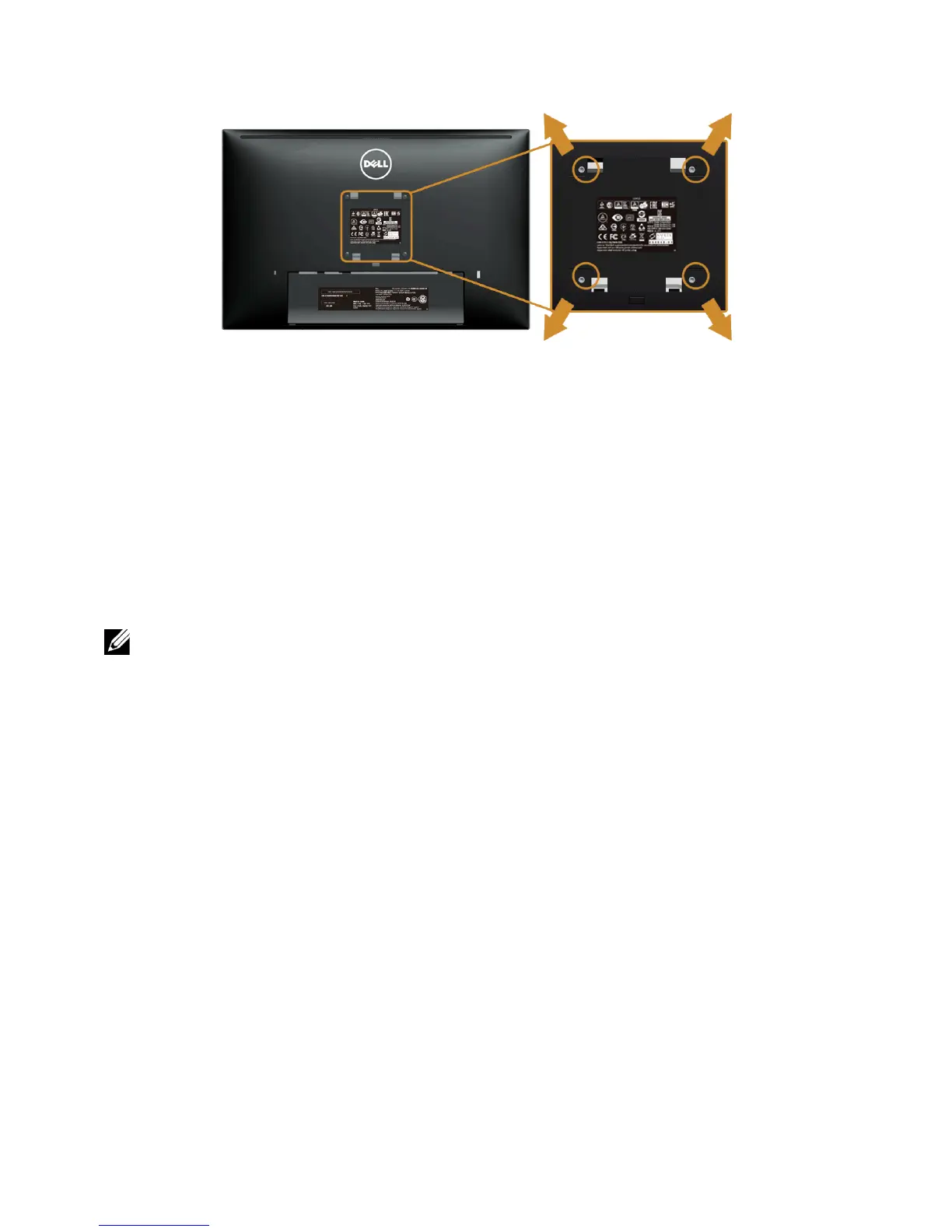

3 Use a Phillips crosshead screwdriver to remove the four screws securing the plastic
cover.
4 Attach the mounting bracket from the wall mounting kit to the monitor.
5 Mount the monitor on the wall by following the instructions that comes with the
wall mounting kit.
NOTE: For use only with UL-listed wall mount bracket with minimum weight/load
bearing capacity of 5.88 kg.
