30 | Setting Up the Monitor

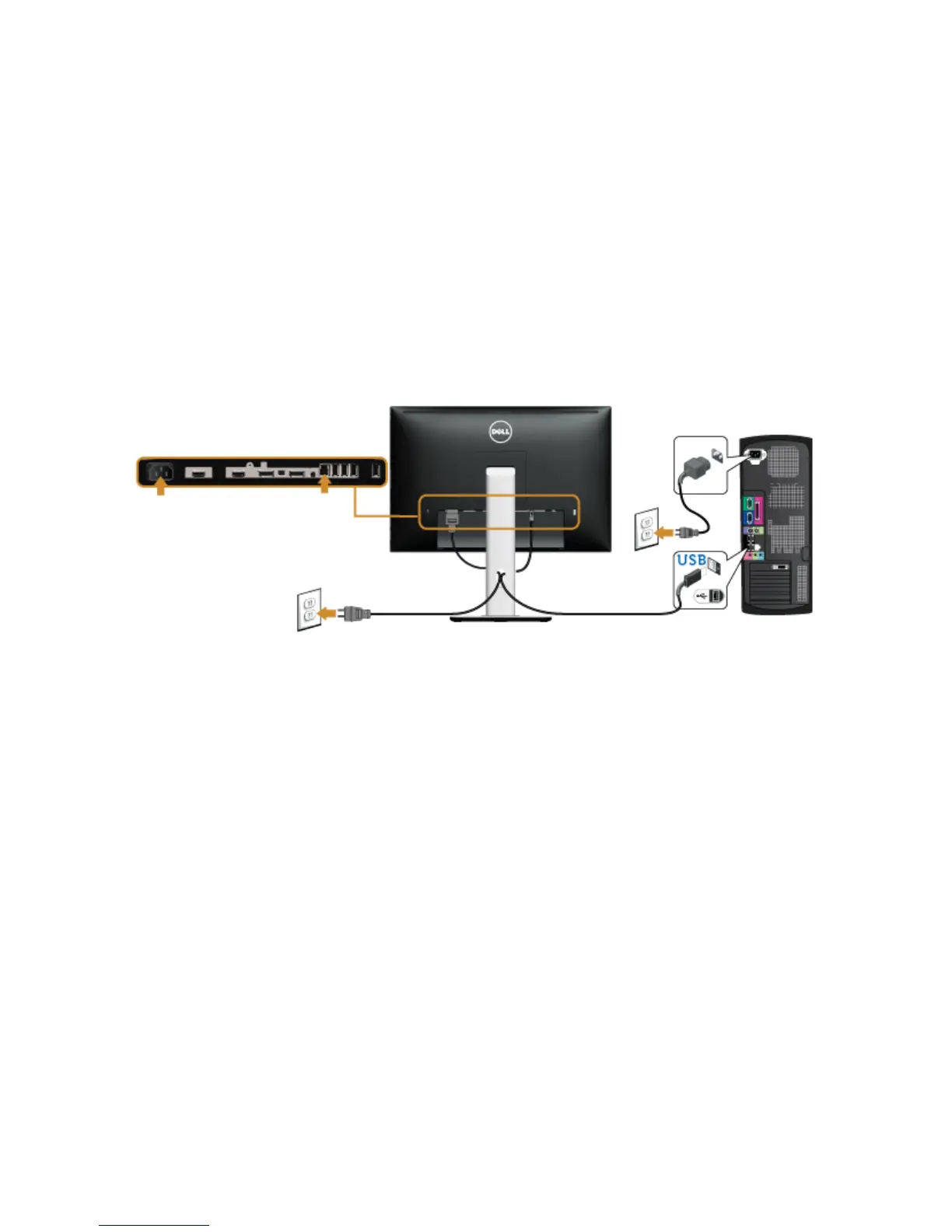

Connecting the USB 3.0 cable
After you have completed connecting the Mini-DP to DP/DP/HDMI cable, follow the
procedures below to connect the USB 3.0 cable to the computer and complete your
monitor setup:
1 Connect the upstream USB 3.0 port (cable supplied) to an appropriate USB 3.0 port
on your computer. (See
Bottom View
for details.)
2 Connect the USB 3.0 peripherals to the downstream USB 3.0 ports on the monitor.
3 Plug the power cables for your computer and monitor into a nearby outlet.
4 Turn On the monitor and the computer.
If your monitor displays an image, installation is complete. If it does not display an
image, see
Universal Serial Bus (USB) Specific Problems
.
5 Use the cable slot on the monitor stand to organize the cables.
