Display
Dell™Vostro™1014/1015ServiceManual


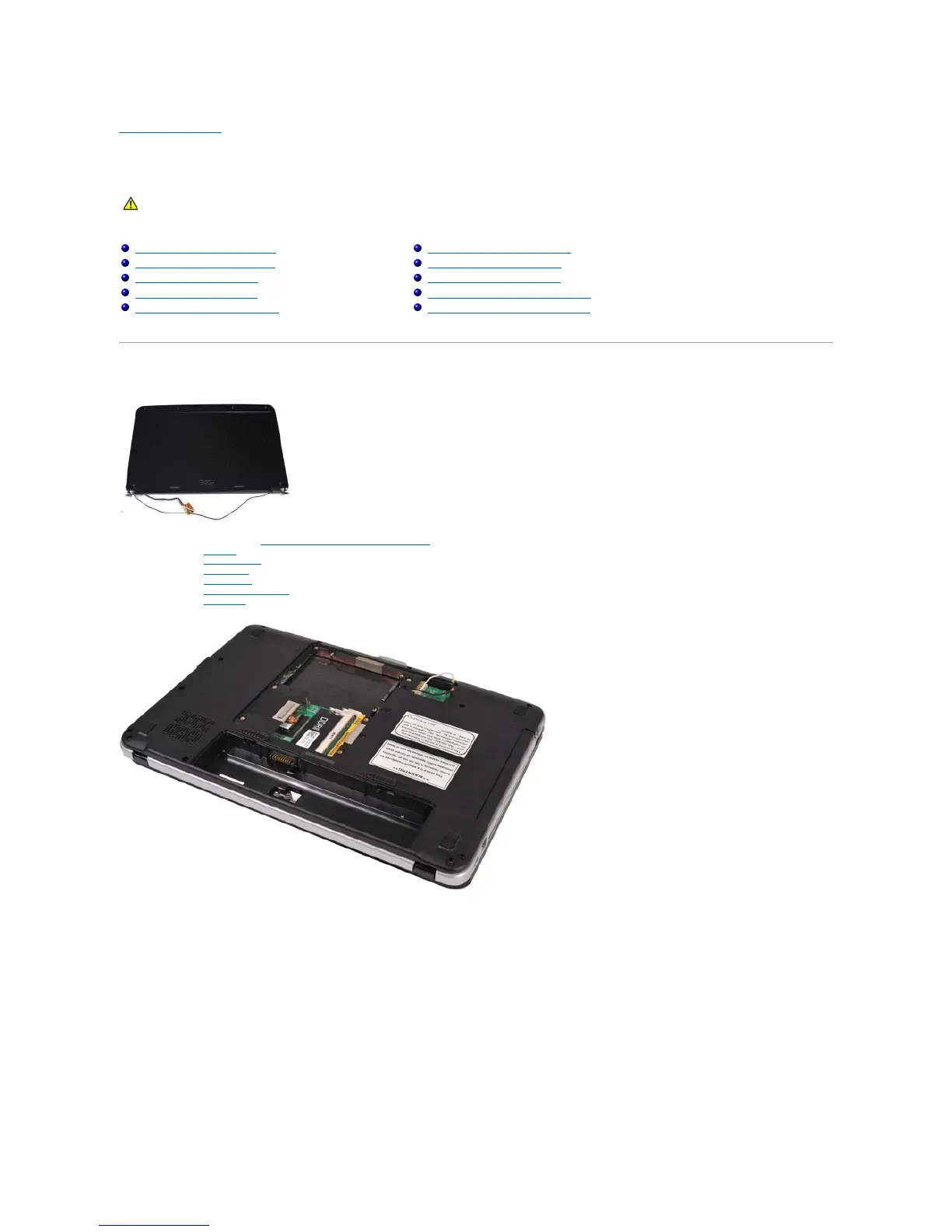

Removing the Display Assembly
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the battery.
3. Remove the access panel.
4. Remove the hard drive.
5. Remove the WLAN card.
6. Remove the control panel cover.
7. Remove the keyboard.
8. Disconnect the wireless cables.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
Removing the Display Assembly
Replacing the Display Assembly
Removing the Display Bezel
Replacing the Display Bezel
Removing the LED Display Panel
Replacing the LED Display Panel
Removing the Display Camera
Replacing the Display Camera
Removing the Display Inverter Cable
Replacing the Display Inverter Cable
