Dell Vostro 15-3568 User Manual

2. Tighten the four captive screws to secure it to the system board.
NOTE: Secure the screws in the order of the callout numbers [1, 2, 3, 4].
3. Install the:
a. base cover
b. keyboard
c. optical drive
d. battery
4. Follow the procedures in After working inside your computer.
System fan
Removing the system fan
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. battery
b. optical drive
c. keyboard
d. base cover

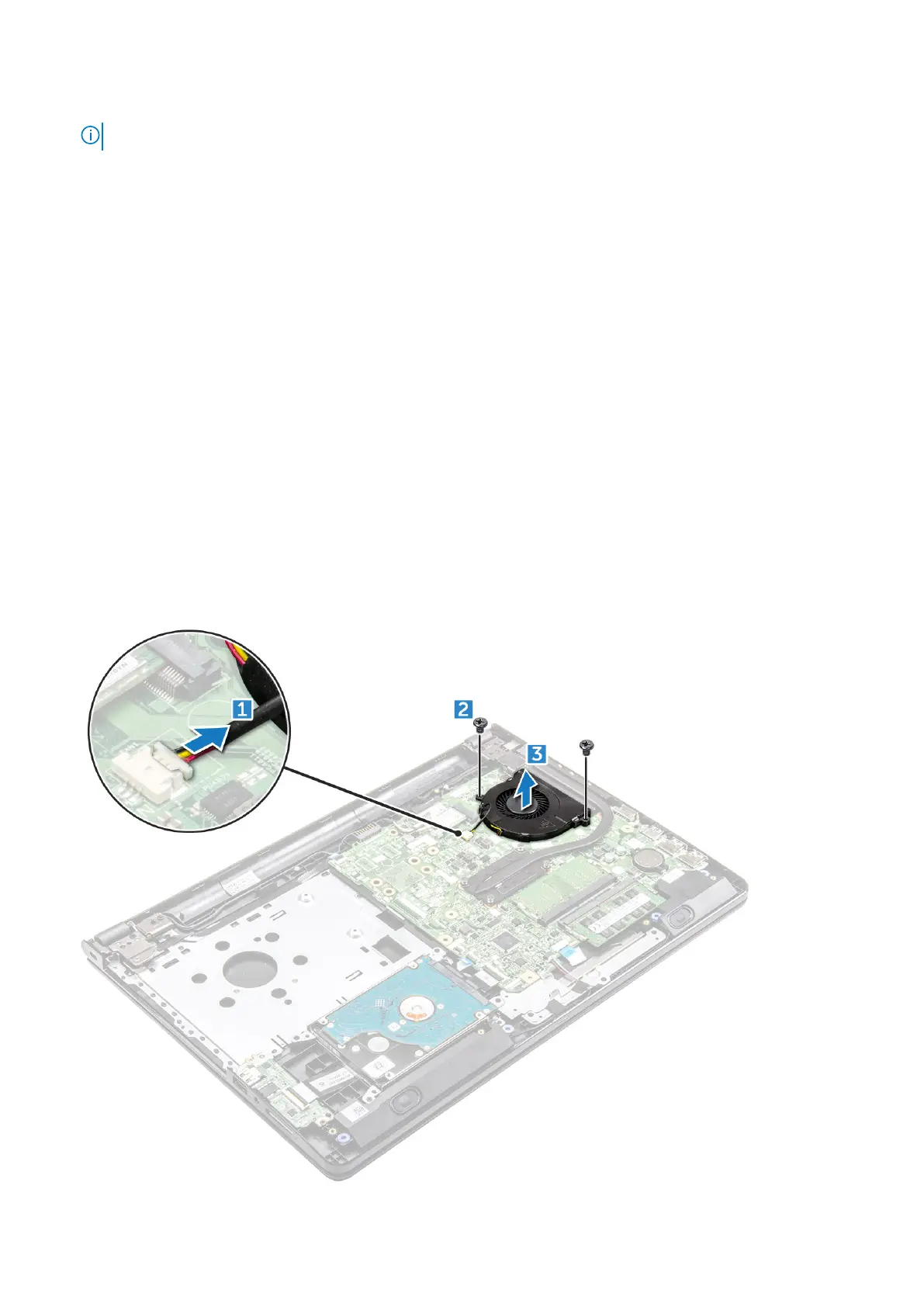

3. To remove the system fan:
a. Disconnect the system fan connector cable from the system board [1].
b. Remove the two M2L5 screws that secure the system fan to the computer [2].
c. Lift and remove the system fan from the chassis [3].
Disassembly and reassembly
29

Dell Vostro 15-3568 Specifications

General

Weight	2.18 kg (4.81 lbs)
Wireless	802.11ac Wi-Fi, Bluetooth 4.2
Optical drive	DVD-RW
Processor	Intel Core i3-6006U
RAM	4GB DDR4
Storage	1TB HDD
Display	15.6-inch HD (1366 x 768)
Graphics	Intel HD Graphics 620
Operating System	Windows 10 Home
Battery	4-cell 40 WHr
Ports	2 x USB 3.0, 1 x USB 2.0, HDMI, RJ-45, SD card reader, Headphone/microphone combo jack
Dimensions	Width: 380 mm (14.96")
