Camera

Removing the camera

1. Follow the procedure in Before working inside your computer.

2. Remove the:

a. battery

b. optical drive

c. keyboard

d. base cover

e. WLAN card

f. display assembly

g. display bezel

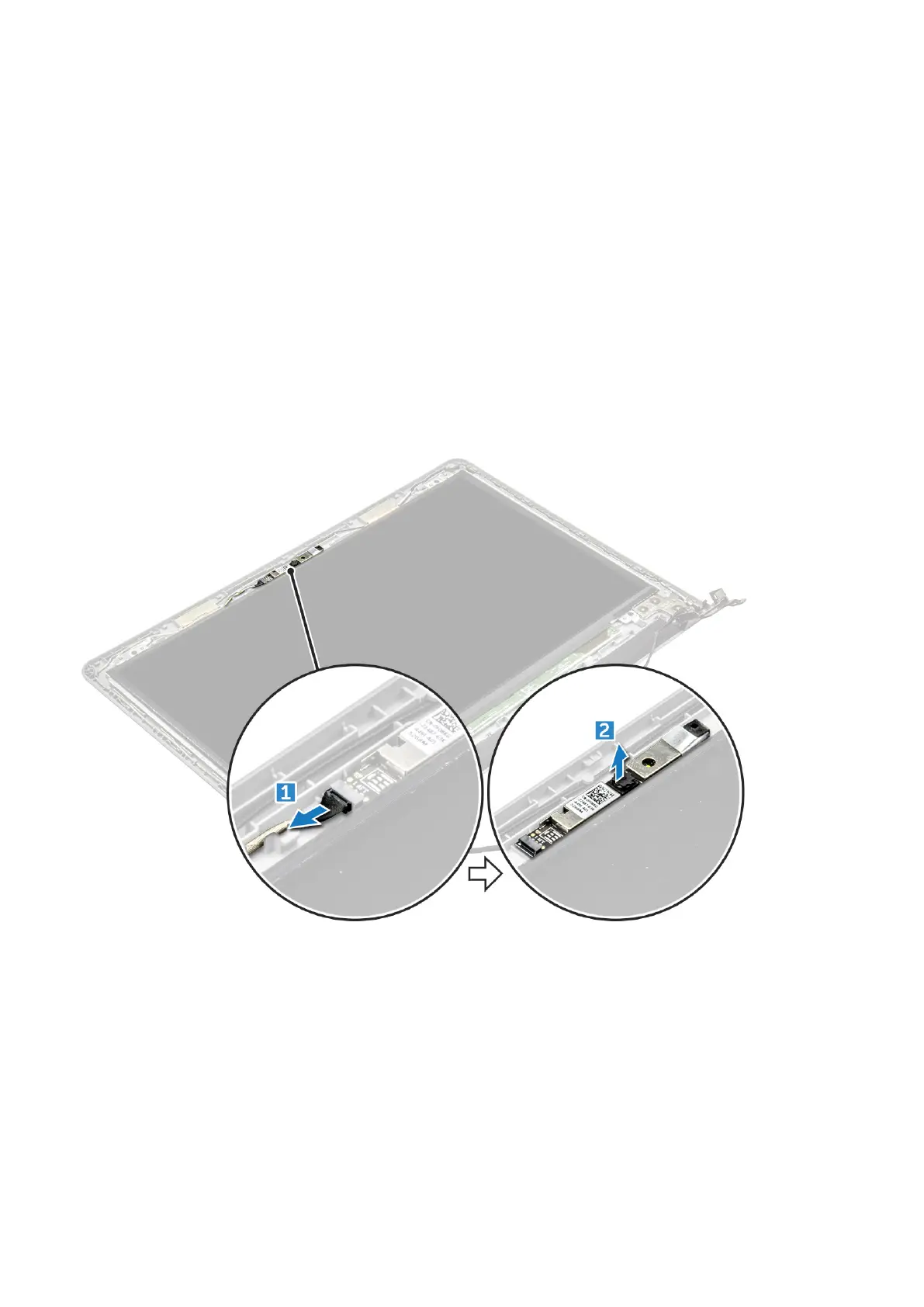

3. To remove the camera:

a. Disconnect the camera cable from the camera [1].

b. Remove the camera from the display assembly [2].

Installing the camera

1. Install the camera into the slot on the display assembly.

2. Connect the camera cable.

3. Install the:

a. display bezel

b. display assembly

c. WLAN Card

d. base cover

e. keyboard

f. optical drive

Disassembly and reassembly
