f. display assembly
g. display bezel
h. display panel
3. To remove the hinges:

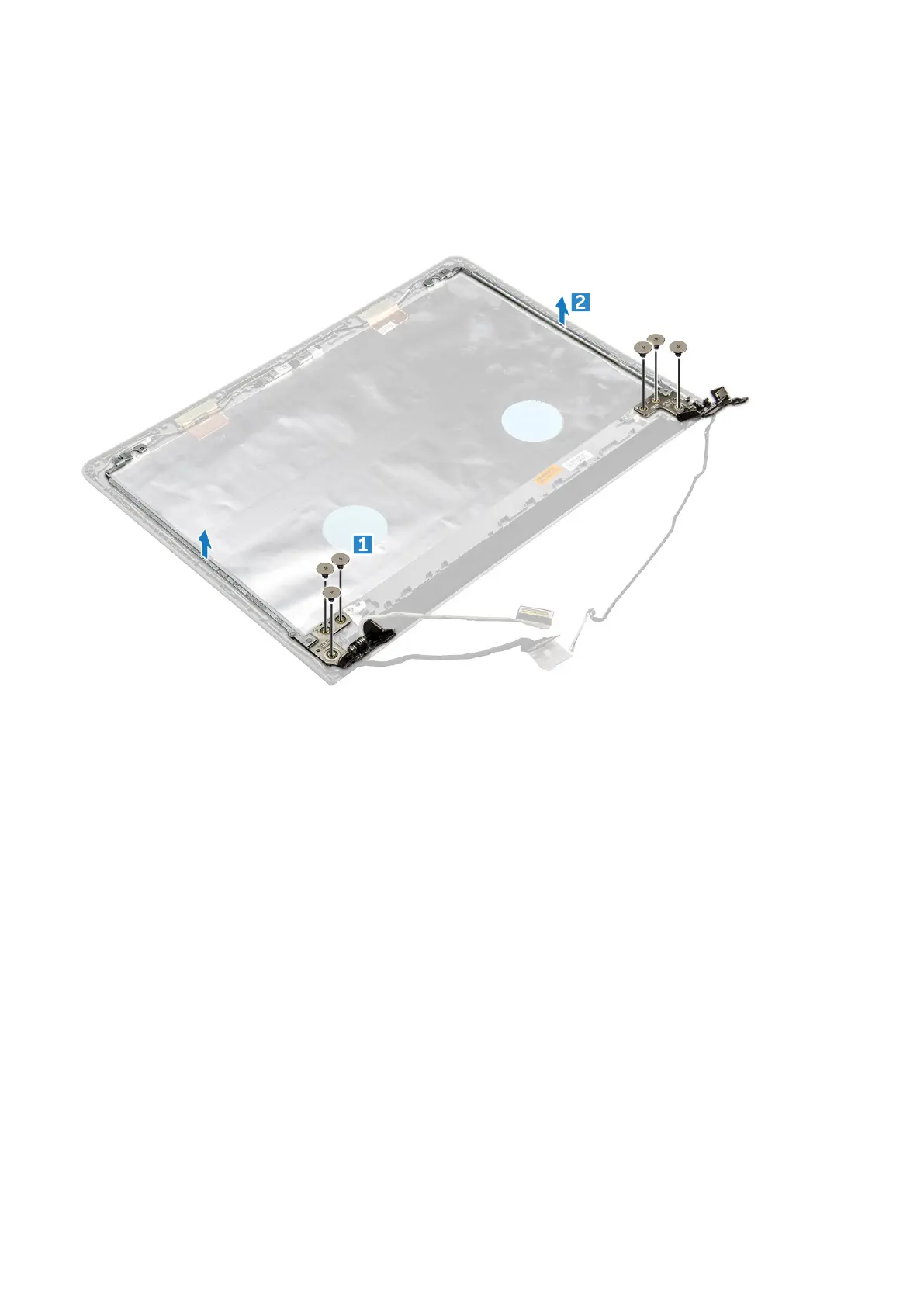

a. Remove the six M2.5L2.5 screws that secure the display hinges to the display assembly [1].
b. Remove the display hinges [2].
Installing the display hinges
1. Tighten the six M2.5L2.5 screws to secure the display hinges to the display assembly.
2. Install the:
a. display panel
b. display bezel
c. display assembly
d. WLAN Card
e. base cover
f. keyboard
g. optical drive
h. battery
3. Follow the procedure in After working inside your computer.
Touchpad
Removing the touchpad
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. battery
Disassembly and reassembly
45

Dell Vostro 15-3568 Specifications

General

Weight	2.18 kg (4.81 lbs)
Wireless	802.11ac Wi-Fi, Bluetooth 4.2
Optical drive	DVD-RW
Processor	Intel Core i3-6006U
RAM	4GB DDR4
Storage	1TB HDD
Display	15.6-inch HD (1366 x 768)
Graphics	Intel HD Graphics 620
Operating System	Windows 10 Home
Battery	4-cell 40 WHr
Ports	2 x USB 3.0, 1 x USB 2.0, HDMI, RJ-45, SD card reader, Headphone/microphone combo jack
Dimensions	Width: 380 mm (14.96")
