Dell Vostro 15-3568 User Manual

Input-Output board
Removing the Input-Output board
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. battery
b. optical drive
c. keyboard
d. base cover
e. hard drive assembly

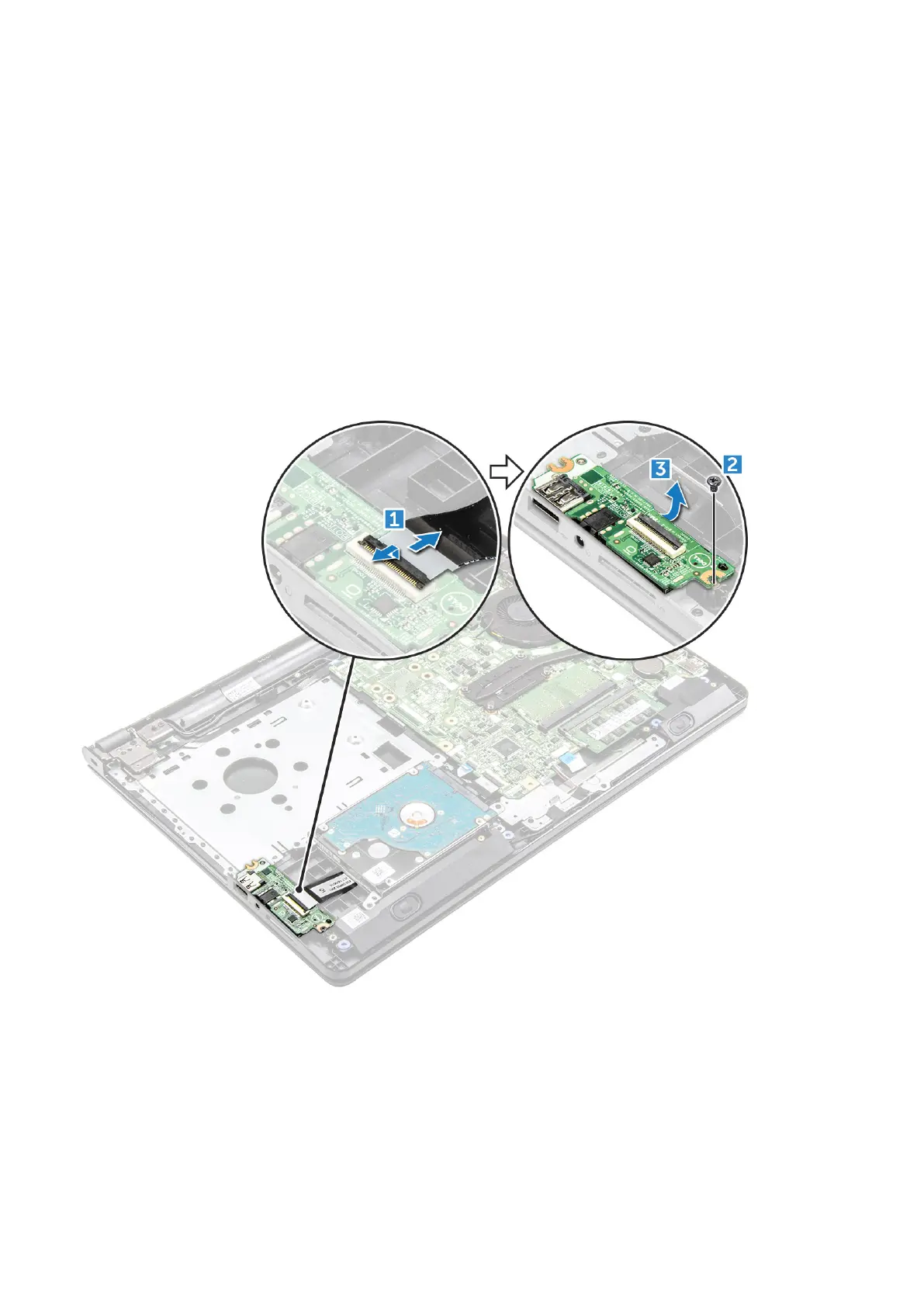

3. To remove the Input/Output board (I/O board):
a. Disconnect the I/O board cable [1].
b. Remove the (M2L3) screw and lift I/O board from the computer [2, 3].
Installing the Input-Output board
1. Place the I/O board on the computer.
2. Connect the input/output (I/O board) cable and tighten the (M2L3) screw.
3. Install the:
a. hard drive assembly
b. base cover
c. keyboard
36
Disassembly and reassembly

Dell Vostro 15-3568 Specifications

General

Weight	2.18 kg (4.81 lbs)
Wireless	802.11ac Wi-Fi, Bluetooth 4.2
Optical drive	DVD-RW
Processor	Intel Core i3-6006U
RAM	4GB DDR4
Storage	1TB HDD
Display	15.6-inch HD (1366 x 768)
Graphics	Intel HD Graphics 620
Operating System	Windows 10 Home
Battery	4-cell 40 WHr
Ports	2 x USB 3.0, 1 x USB 2.0, HDMI, RJ-45, SD card reader, Headphone/microphone combo jack
Dimensions	Width: 380 mm (14.96")
