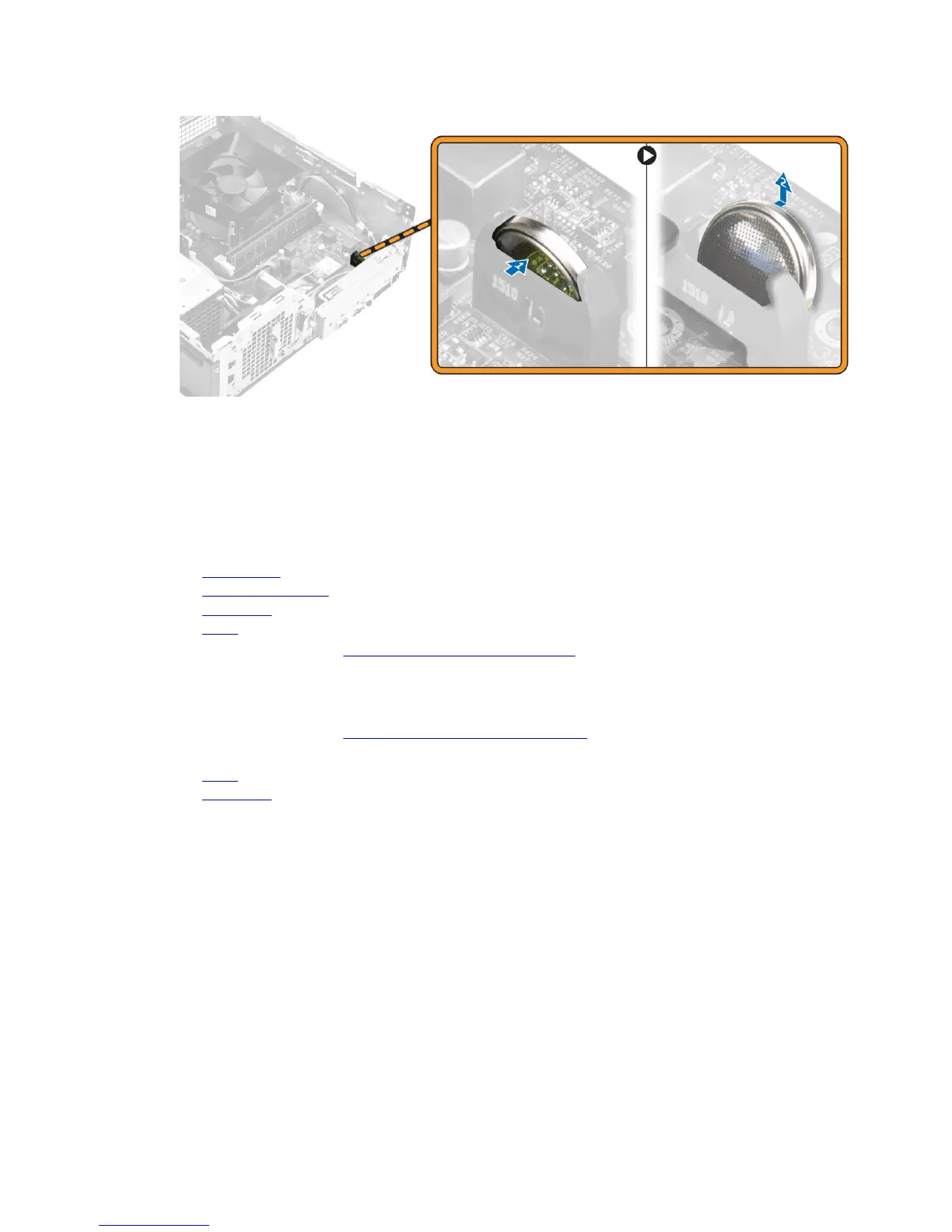

Figure 12.
Installing the coin cell battery
1. Insert the coin cell battery in the slot on the system board.
2. Press the coin cell battery downward until it snaps in.
3. Install:
a. optical drive
b. hard drive assembly
c. front bezel
d. cover
4. Follow the procedures in After Working Inside Your Computer.
Removing the expansion card
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove:
a. cover
b. front bezel
3. Perform the following steps to remove the expansion card:
a. Pull the metal tab to release the expansion card. [1]
b. Push the tab forward [2] and remove the expansion card from the slot on the computer [3].
