Heat Sink and Fan Assembly
Dell™Vostro™3500ServiceManual
Removing the Heat Sink and Fan Assembly
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the battery.
3. Remove the base cover.
4. Remove the hard drive.
5. Remove the optical drive.
6. Remove the wireless local area network (WLAN) card.
7. Remove the wireless wide area network (WWAN) card.
8. Remove the keyboard.
9. Remove the palm rest.
10. Remove the display assembly.
11. Remove the ExpressCard cage.
12. Remove the system board.

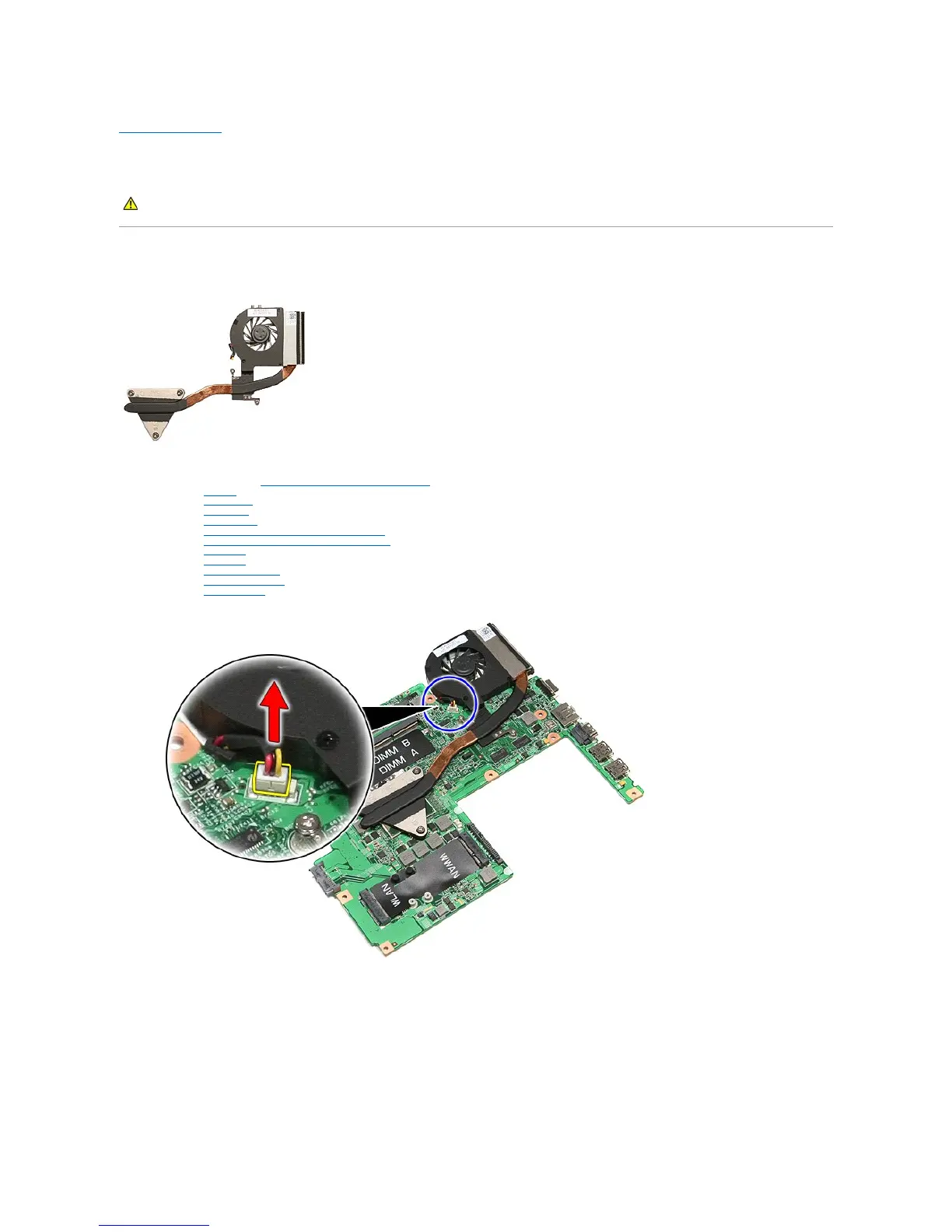

13. Disconnect the fan cable from the system board.
14. Remove the screws that secure the heat sink and fan assembly to the system board.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
