Installing the Coin-Cell Battery
1. Place the coin-cell battery on the system board until it snaps in place.
2. Install the cover.
3. Follow the procedures in After Working Inside Your Computer.
Removing the Hard Drive
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the:
• cover
• bezel

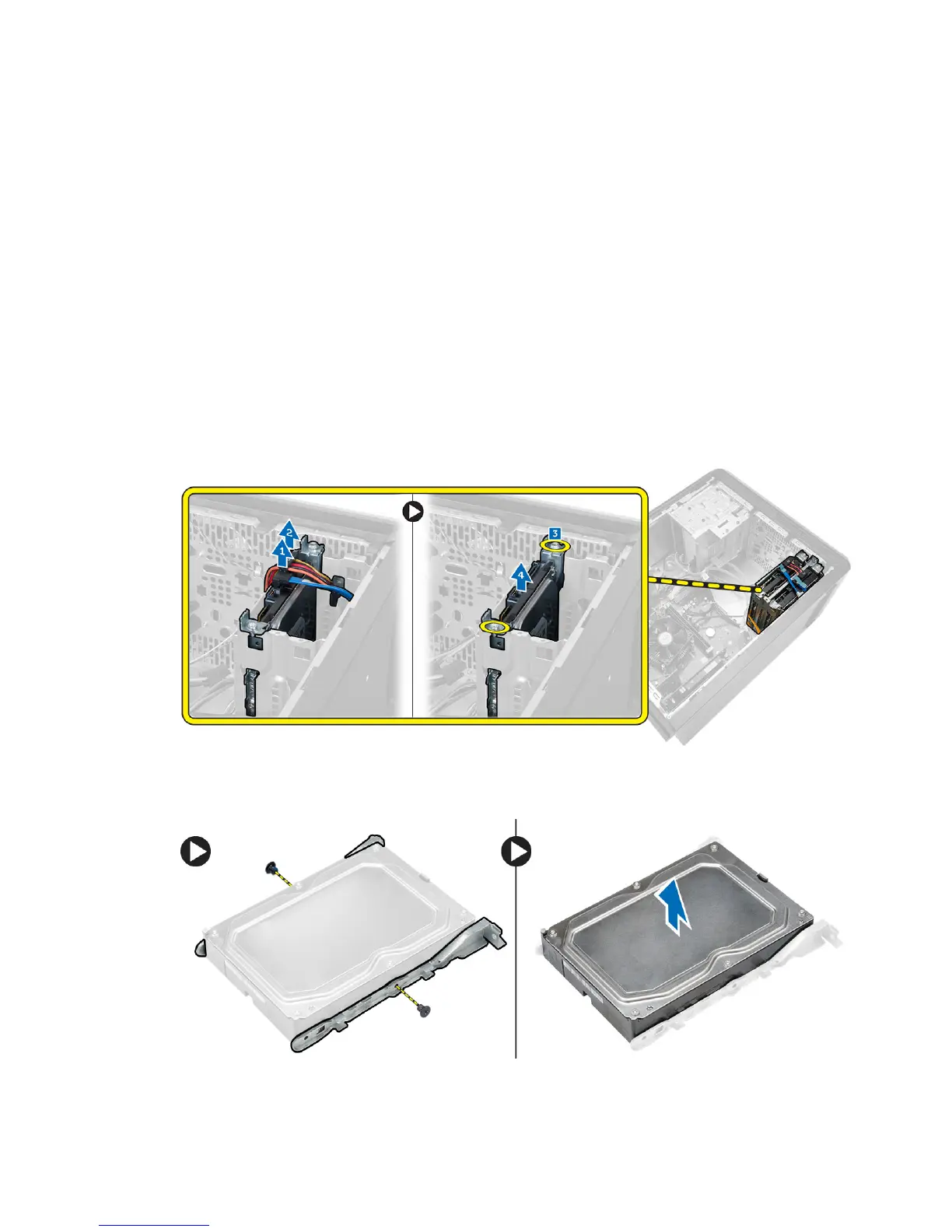

3. Follow the steps to remove the SATA cable and the power cable:
a. Disconnect the SATA cable and power cable from the hard drive [1] [2].
b. Remove the screws that secure the hard-drive bracket [3] and lift it upwards to remove it from the
computer [4].
4. Follow the steps to remove the hard-drive bracket.
a. Remove the screws that secure the hard-drive bracket.
b. Lift and remove the hard drive from the hard-drive bracket.
