Installing the Power Switch
1. Insert the power-switch cable through the front of the computer.
2. Push the power button into its slot and press it in, until it snaps into place.
3. Route the power-switch cable through the metal clip.
4. Connect the power-switch cable to the system board.
5. Install the:
• bezel
• cover
6. Follow the procedures in After Working Inside Your Computer.
Removing the Input/Output (I/O) Panel
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the:
• cover
• bezel

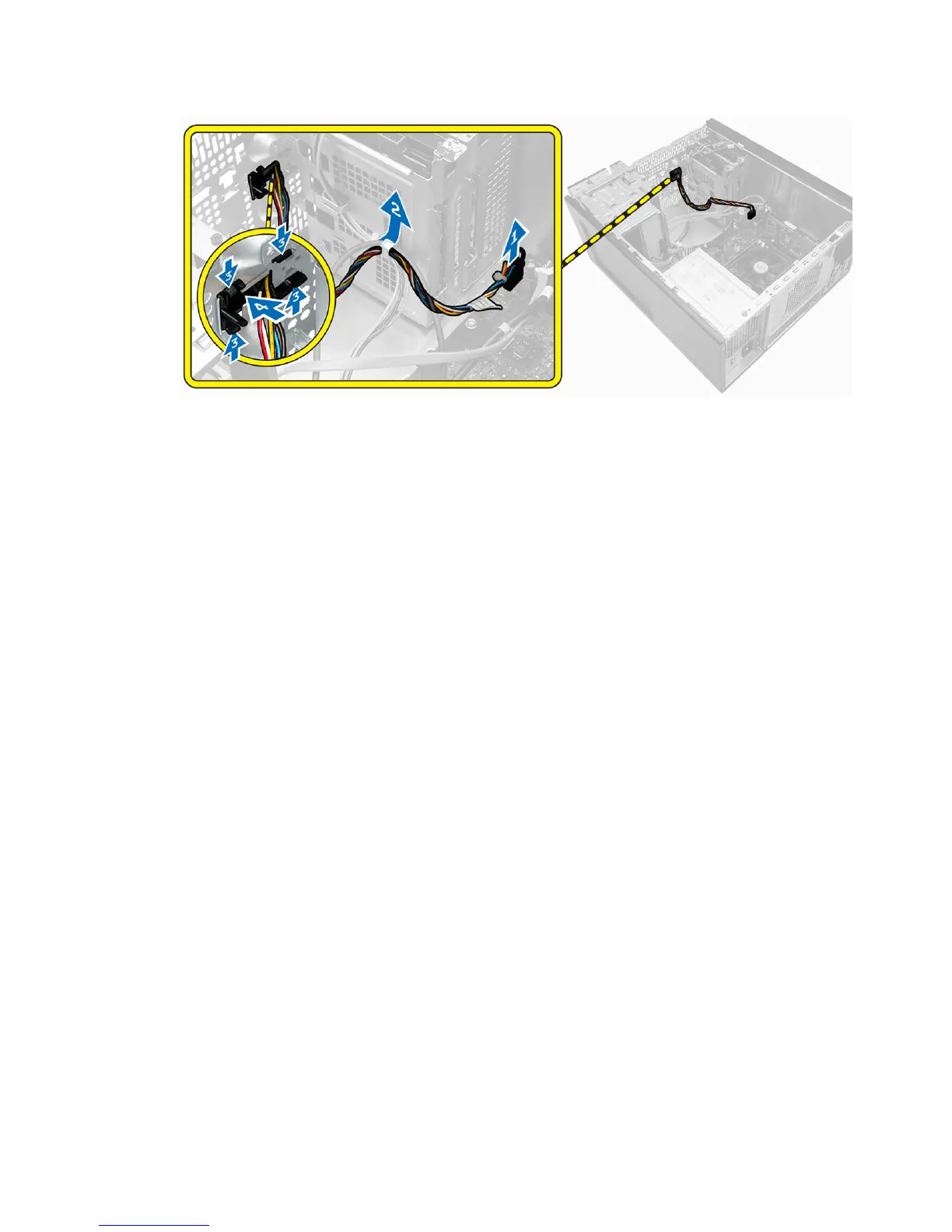

3. Follow the steps to remove the I/O panel cables:
a. Disconnect the I/O panel and FlyWire cables from the system board [1, 3].
b. Un-thread the cables from the metal retention clips [2, 4].
