Expansion Cards
Dell™Vostro™430ServiceManual
Removing an Expansion Card
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the Cover.
3. Disconnect any cables that may be connected to the card.

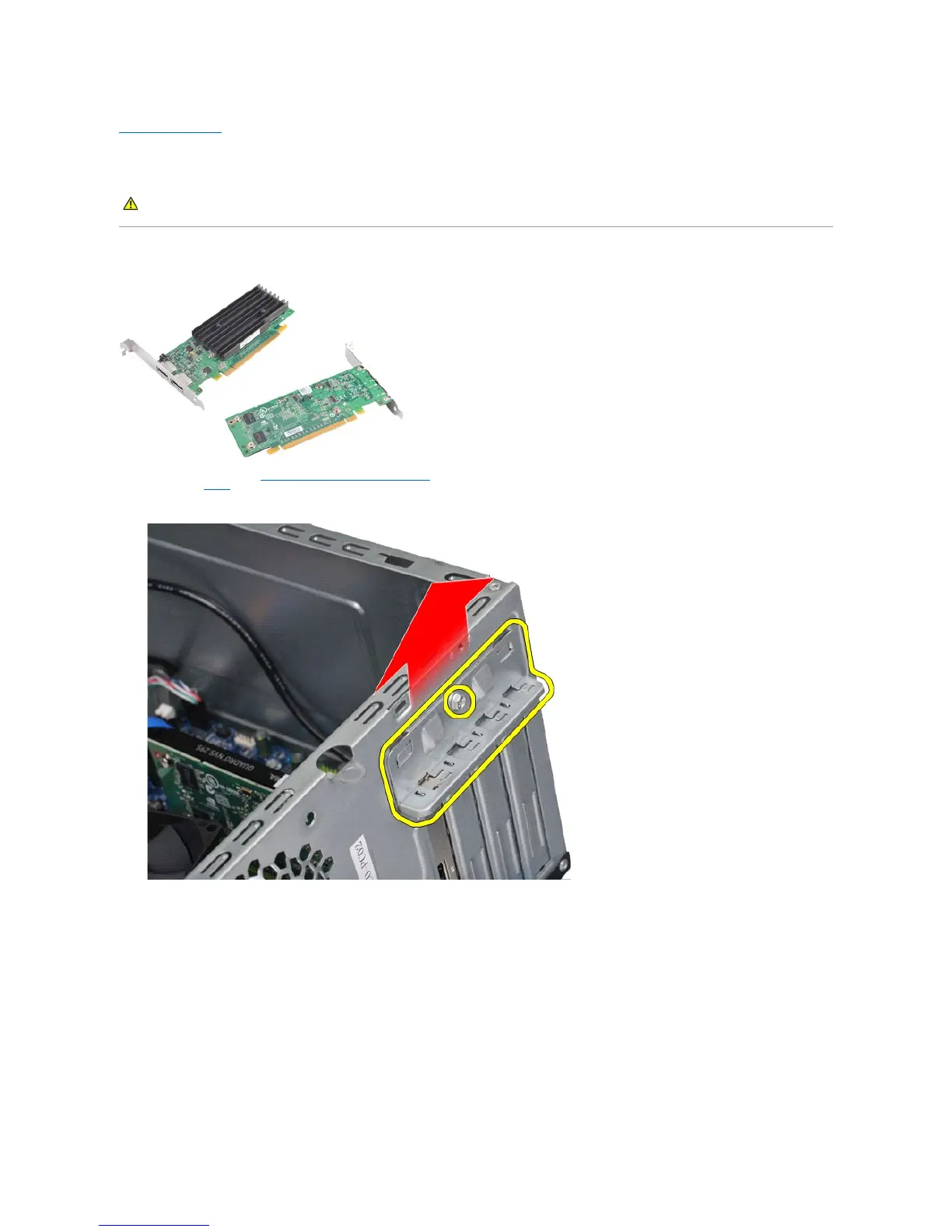

4. Using a Phillips head screwdriver, remove the screw and metal tab that secure the expansion card to the chassis.
5. To remove a PCI-Express x16 video card, press the securing tab on the system board connector as you grasp the card by its top corners, and then ease
the card out of the connector.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
