Installing the power button
Prerequisites
CAUTION: The information in this section is intended for authorized service technicians only.
If you are replacing a component, remove the existing component before performing the installation process.
About this task

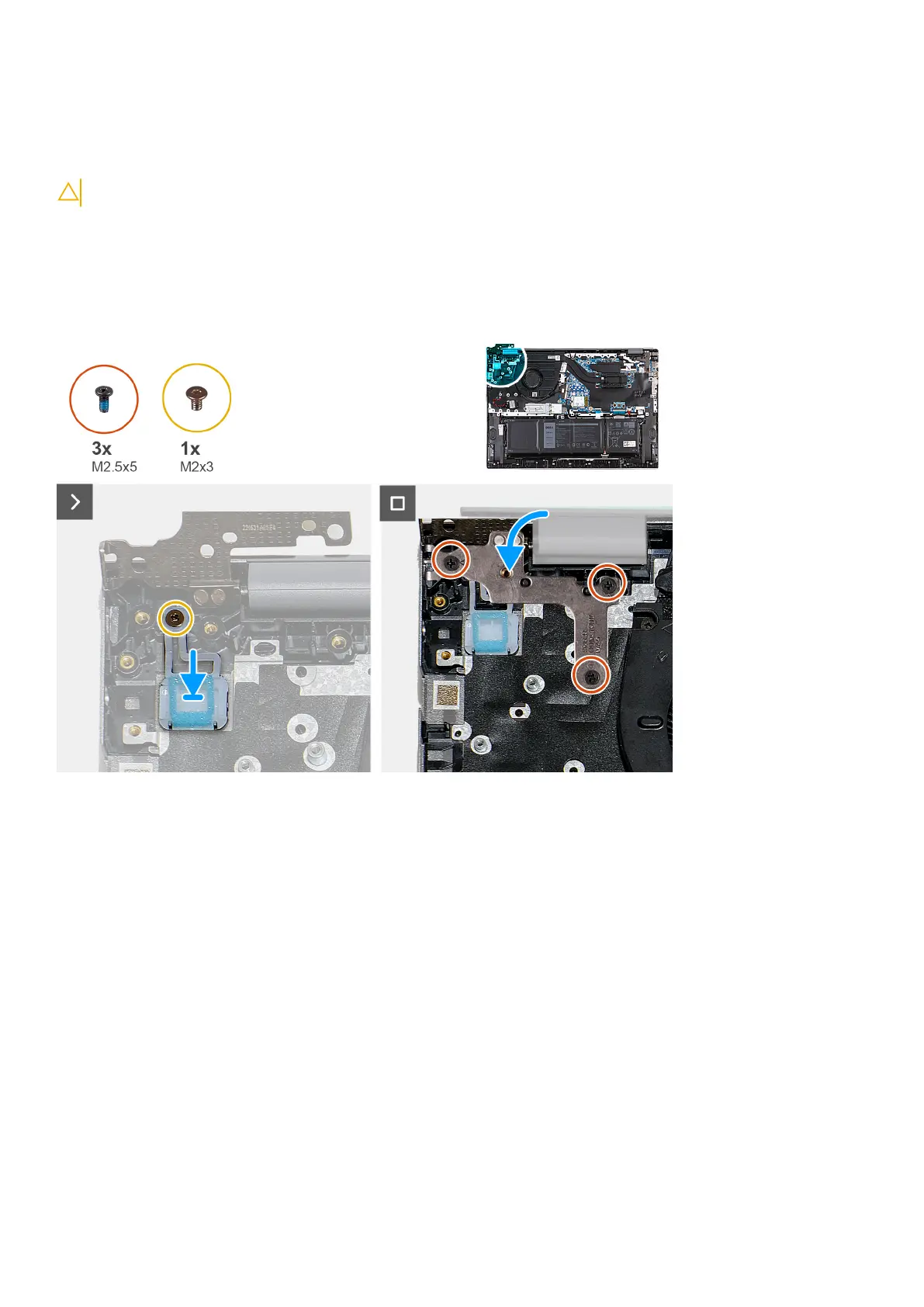

The following image(s) indicate the location of the power button and provides a visual representation of the installation
procedure.
Steps
1. Place the power button on the palm-rest and keyboard assembly.
2. Align the screw hole on the power button with the screw hole on the palm-rest and keyboard assembly.
3. Replace the screw (M2x3) that secures the power buttonto the palm-rest and keyboard assembly.
4. Close the left display hinge and align the screw holes on the left display hinge with the screw holes on the palm-rest and
keyboard assembly.
5. Replace the three screws (M2.5x5) that secure the left display hinge to the palm-rest and keyboard assembly.
Next steps
1. Install the I/O board.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
