Steps
1. Remove the two screws (M2x3.5) that secure the TPM board to the system board.
2. Lift the TPM board off the system board.
Installing the Trusted Platform Module (TPM) board
Prerequisites
CAUTION: The information in this section is intended for authorized service technicians only.
If you are replacing a component, remove the existing component before performing the installation process.
About this task

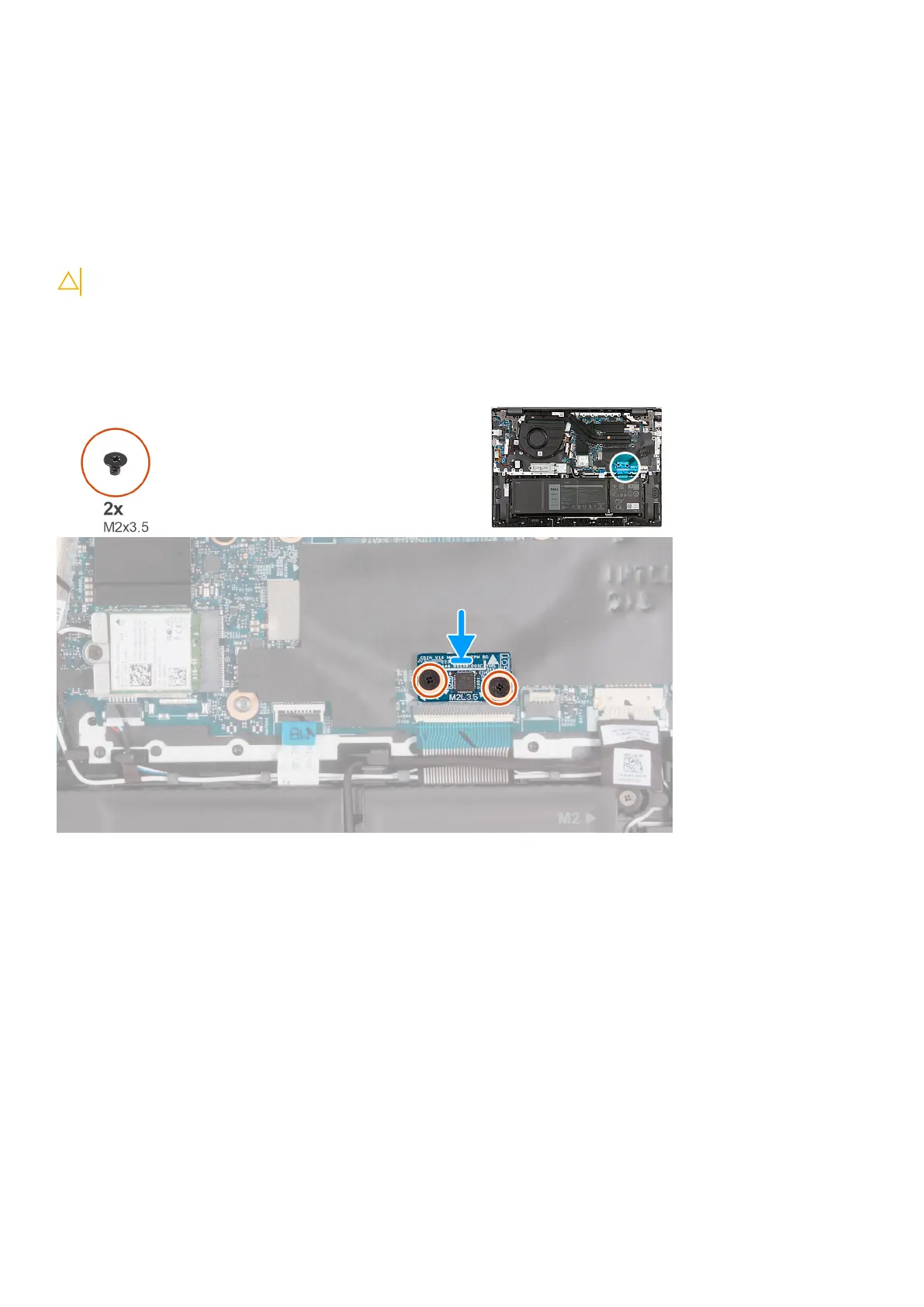

The following image(s) indicate the location of the TPM board and provides a visual representation of the installation procedure.
Steps
1. Align the screw holes on the TPM board with the screw holes on the system board.
2. Align the ports on the TPM board with the slots on the system board.
3. Place the TPM board on the system board.
4. Replace the two screws (M2x3) that secure the TPM board to the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
