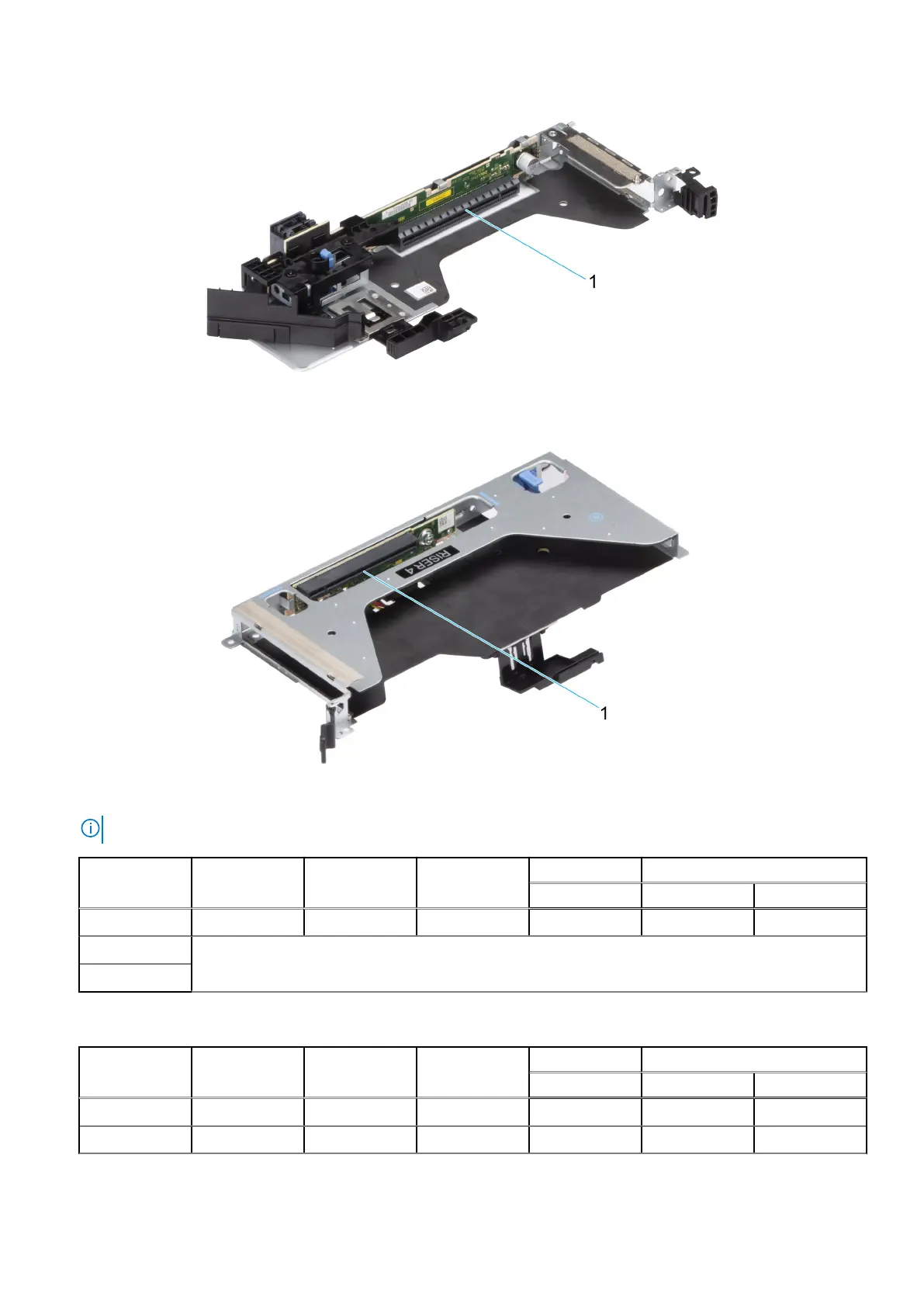

Riser 4 -Full height
1. Slot 2
The VxRail E660 and VxRail E660F supports the following riser configurations:
● Riser configuration 0-1: R2A + R3A
NOTE: PCIe slot-1 supports single-socket configuration only.
Location Width Length Height Processor 1 Processor 2
Riser 2A Riser 2A Riser 3A
PCIe Slot-1 SW HL LP x16 - -
PCIe Slot-2
DO NOT USE
PCIe Slot-3
● Riser configuration 0-2: R2A + R3A
Location
Width Length Height Processor 1 Processor 2
Riser 2A Riser 2A Riser 3A
PCIe Slot-1 SW HL LP x16 - -
PCIe Slot-2 SW HL LP - x16 -
