Steps

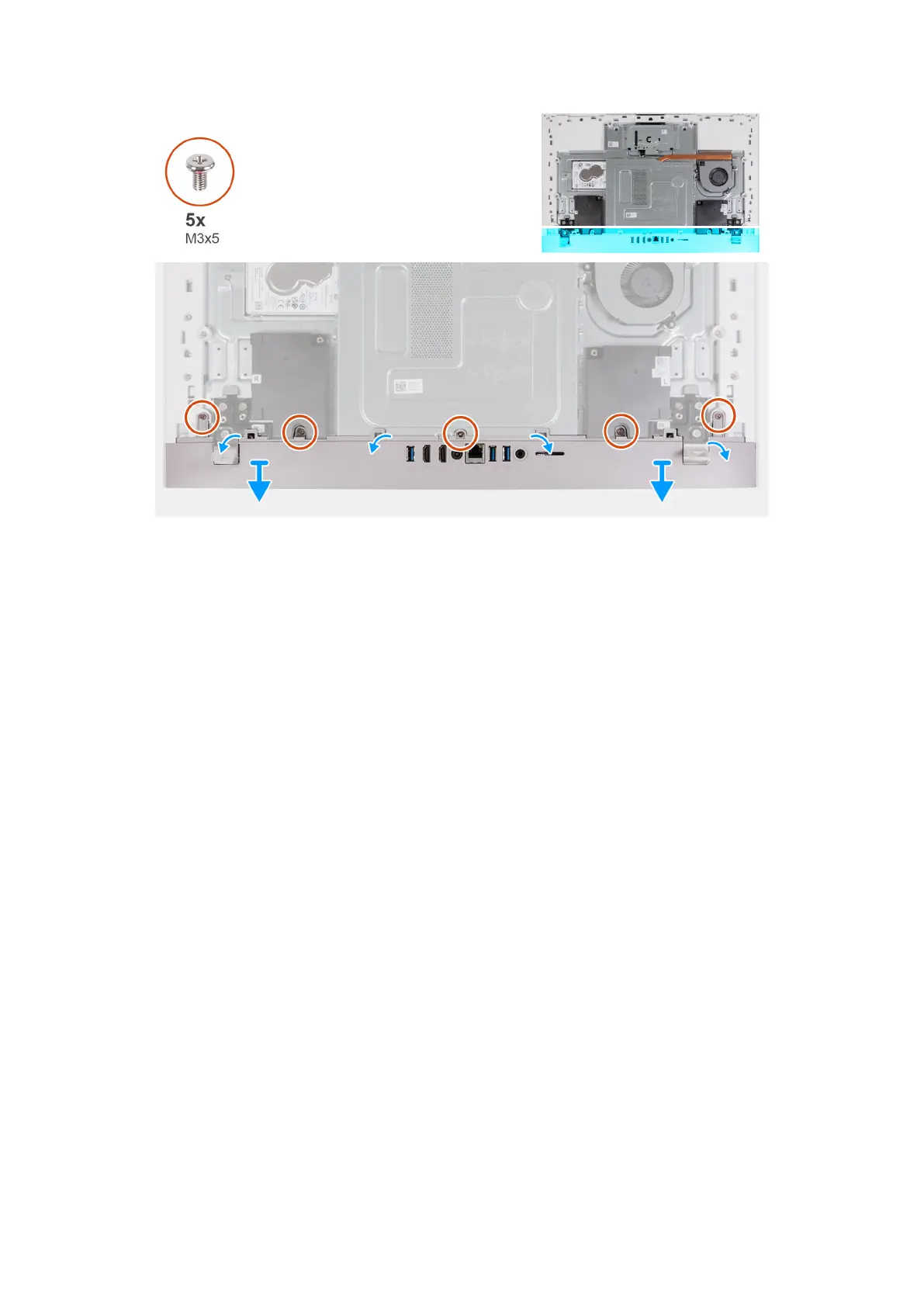

1. Remove the five screws (M3x5) that secure the I/O cover to the display-assembly base.
2. Lift the I/O cover off the display-assembly base.
Installing the I/O cover
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the I/O cover and provides a visual representation of the installation procedure.
50
Removing and installing Customer Replaceable Units (CRUs)
