About this task
NOTE: This procedure is only applicable if you are installing an M.2 2230 solid-state drive into the solid-state drive slot (M.2
PCIe SSD 0) on the system board.
NOTE: Ensure that the M.2 screw mount is in the proper location to install the M.2 2230 solid-state drive, refer to Location
of the screw mount.

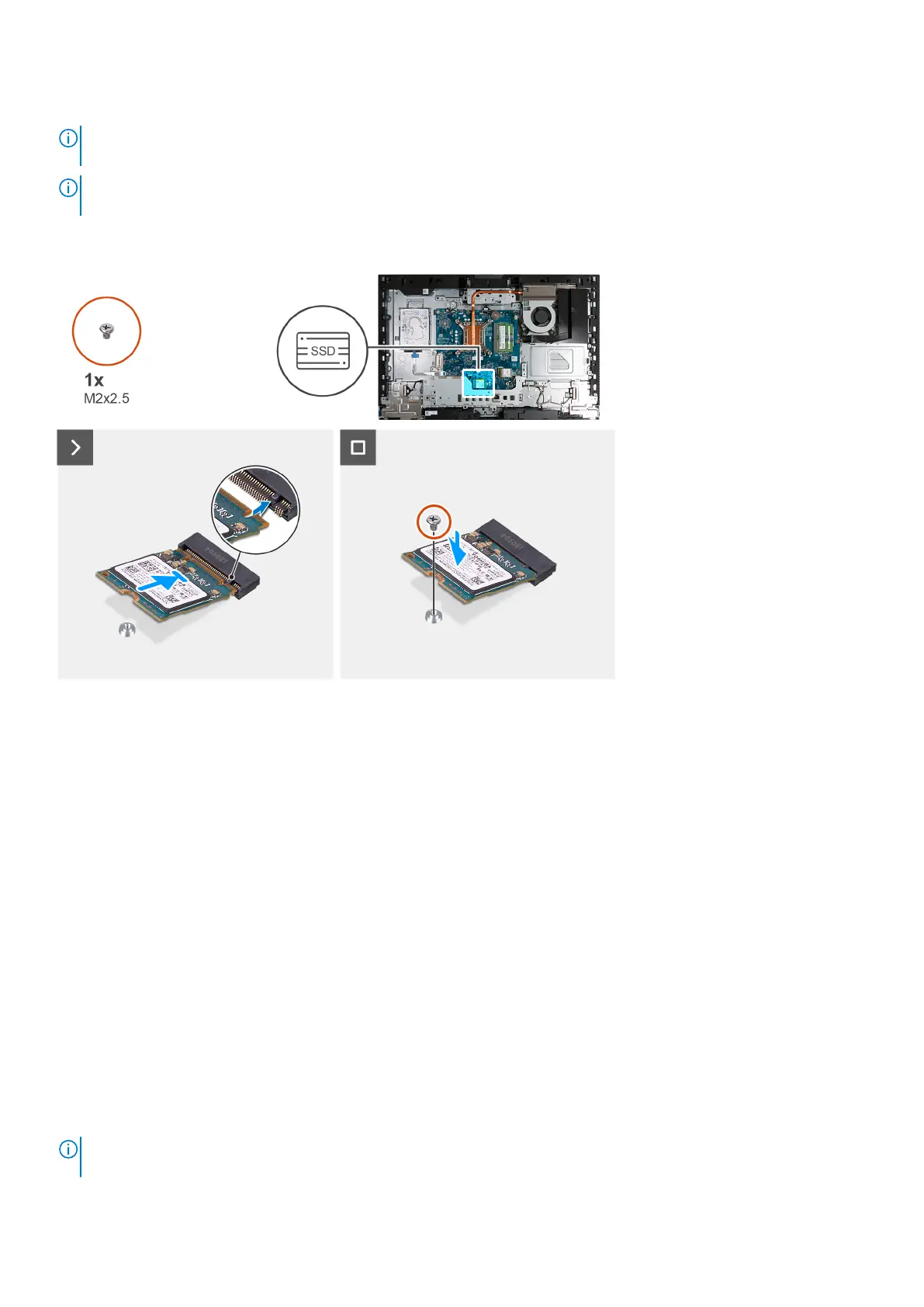

The following image(s) indicate the location of the M.2 2230 solid-state drive and provides a visual representation of the
installation procedure.
Steps
1. Align the notch on the M.2 2230 solid-state drive with the tab on the solid-state drive slot (M.2 PCIe SSD 0).
2. Slide the M.2 2230 solid-state drive into the solid-state drive slot (M.2 PCIe SSD 0) on the system board.
3. Replace the screw (M2x3.5) that secures the M.2 2230 solid-state drive to the system board.
Next steps
1. Install the system-board shield.
2. Install the back cover.
3. Install the stand.
4. Follow the procedure in After working inside your computer.
Removing the 2280 solid-state drive
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the stand.
3. Remove the back cover.
4. Remove the system-board shield.
About this task
NOTE:
Depending on the configuration ordered, your computer may have an M.2 2230 or a 2280 solid-state drive installed
in the solid-state drive slot (M.2 PCIe SSD 0) on the system board.
Removal and installation procedures for Energy Efficient processors 117
