Steps

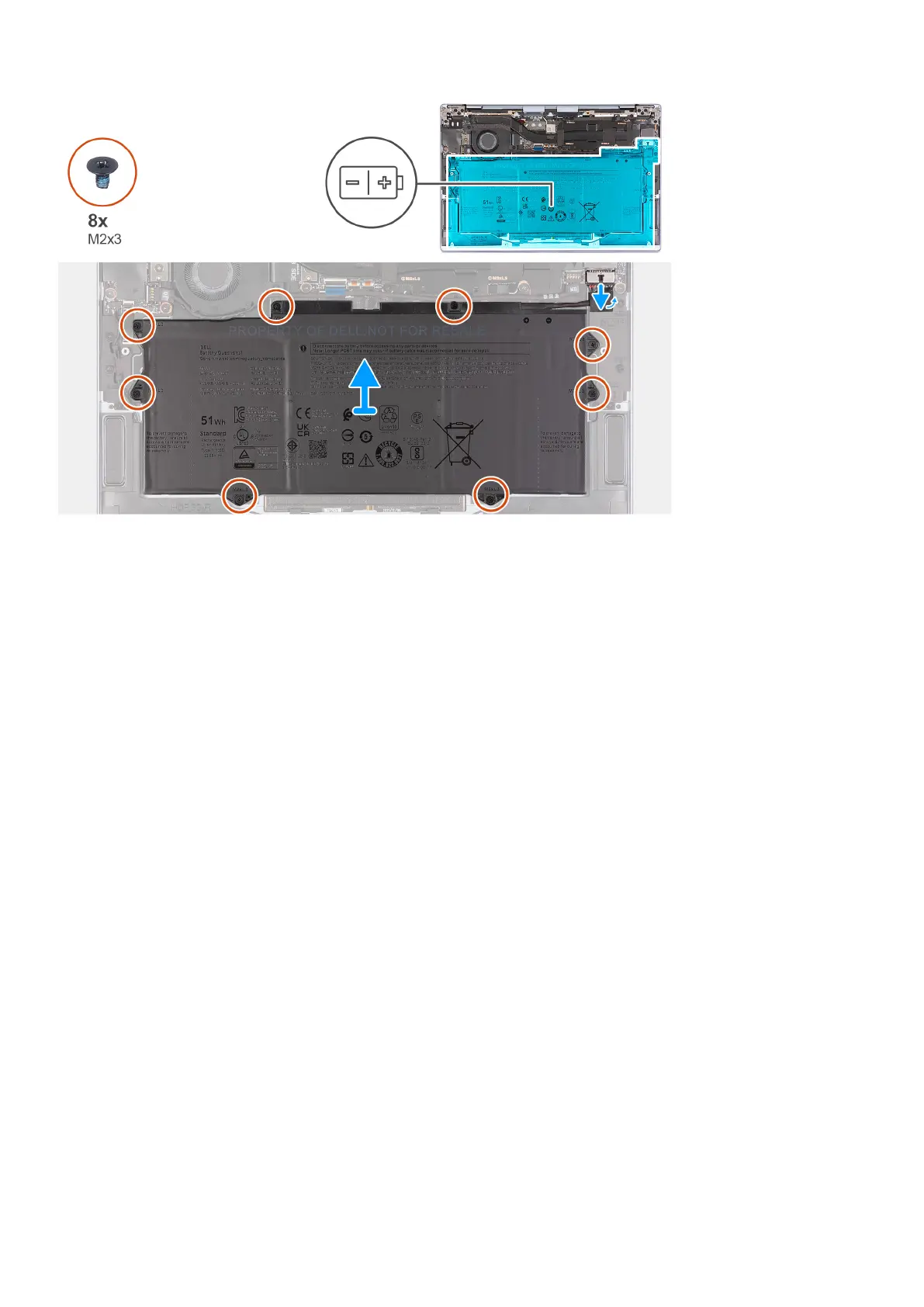

1. Use the pull tab on the battery power cable to disconnect the battery cable from the battery connector.
2. Remove the eight screws (M1.6x2.5) that secure the battery to the palm-rest and keyboard assembly.
3. Lift the battery off the palm-rest and keyboard assembly.
Installing the battery
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image indicates the location of the battery and provides a visual representation of the installation procedure.
Removing and installing components
17
