Dell XPS 8960 User Manual

2. Push the coin-cell battery-release lever on the coin-cell battery socket to release the coin-cell battery out of the socket.
3. Remove the coin-cell battery.
Installing the coin-cell battery
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

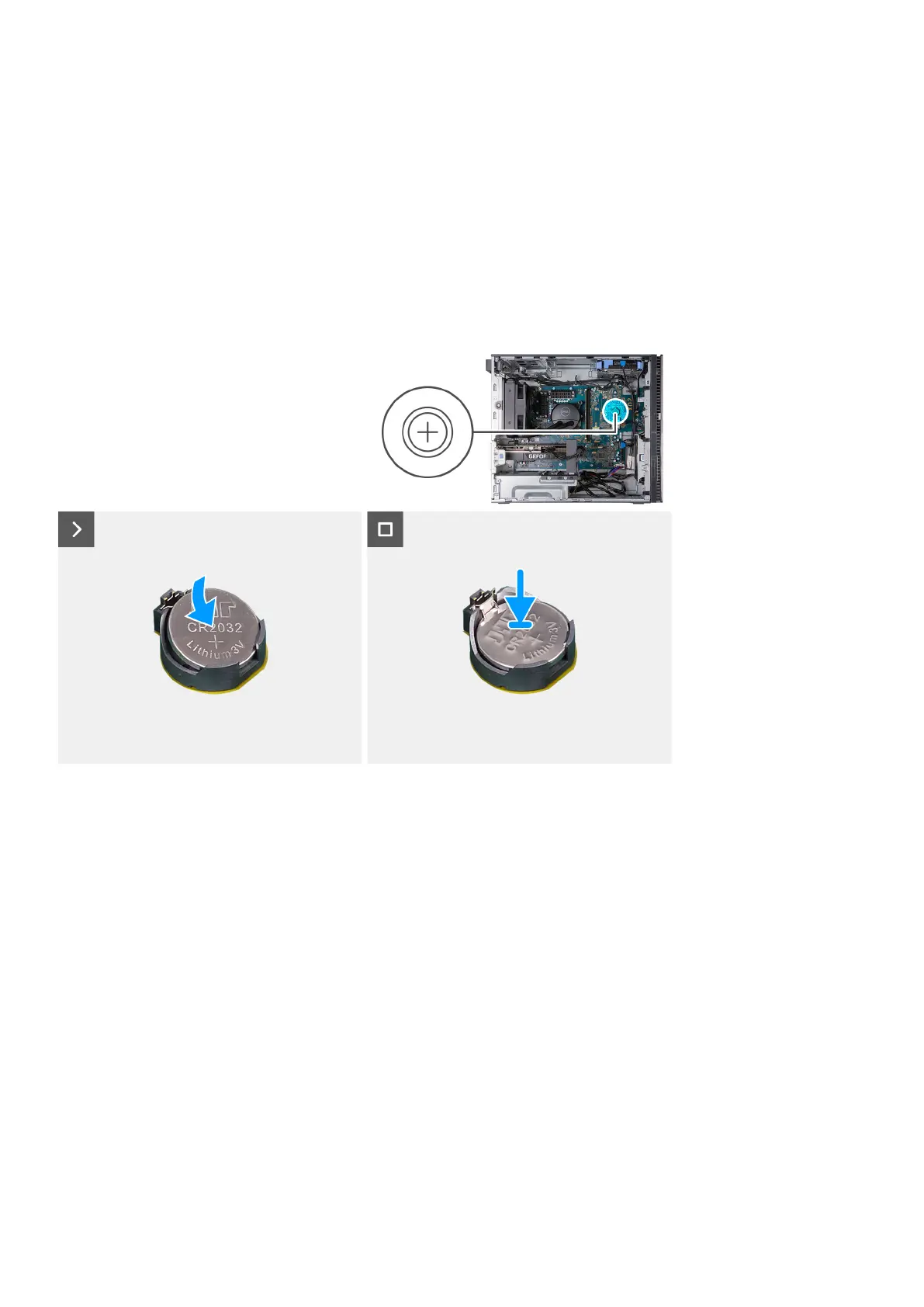

The following image(s) indicate the location of the coin-cell battery and provides a visual representation of the installation
procedure.
Steps
1. Insert the coin-cell battery into the socket with the positive side (+) label facing up and snap the battery in the socket.
2. Place the computer in an upright position.
Next steps
1. Install the left-side cover.
2. Follow the procedure in After working inside your computer.
Front-chassis fan
Removing the front-chassis fan
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left-side cover.
Removing and installing components
35

Dell XPS 8960 Specifications

General

Processor	13th Gen Intel Core i7
Graphics	NVIDIA GeForce RTX 3060
Memory	Up to 64GB DDR5
Storage	512GB SSD
Operating System	Windows 11 Pro
Wireless	Wi-Fi 6E, Bluetooth
Power Supply	460W
Ports (Front)	USB 3.2 Gen 1 Type-A, USB 3.2 Gen 1 Type-C, Headphone/Microphone combo jack
Ports (Rear)	USB 2.0, USB 3.2 Gen 1, USB 3.2 Gen 2, HDMI, DisplayPort, Ethernet
Expansion Slots	PCIe x16
