Installing the processor fan and heat-sink assembly (125 W, liquid
cooler)
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
NOTE: If either the processor or the fan and heat-sink assembly is replaced, use the thermal grease provided in the kit to
ensure that thermal conductivity is achieved.
NOTE: The processor fan and heat-sink assembly (125 W, liquid cooler) consists of one radiator fan and one heat sink that
is linked by tubing containing water. Ensure that there is no damage to the tubing and there is no leaks before replacing the
processor fan and heat-sink assembly
NOTE: This procedure only applies for computers shipped with a 125 W processor.

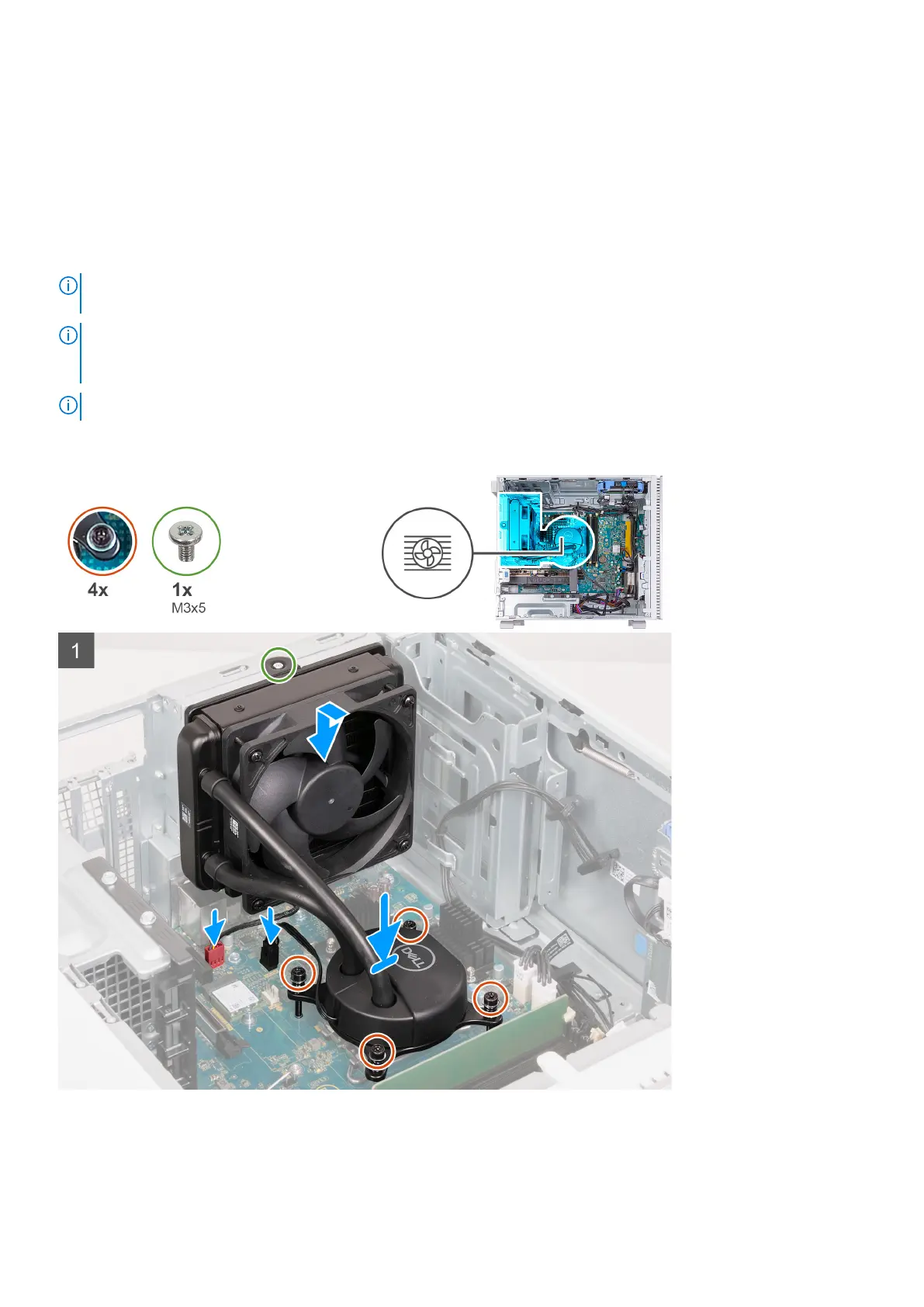

The following image(s) indicate the location of the processor fan and heat-sink assembly (125 W, liquid cooler) and provides a
visual representation of the installation procedure.
Steps
1. Place the heat sink on the system board and align the captive screws to the screw holes on the system board.
2. In reverse sequential order (4>3>2>1), tighten the four captive screws that secure the heat stink to the system board.
