NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching
an unpainted metal surface (such as a connector on the back of the computer).
1. Align the notch in the module edge connector with the tab in the connector slot.
2. Slide the module firmly into the slot at a 45-degree angle, and rotate the module down until it clicks into place. If you
do not feel the click, remove the module and reinstall it.
NOTE: If the memory module is not installed properly, the computer may not boot. No error message indicates this
failure.

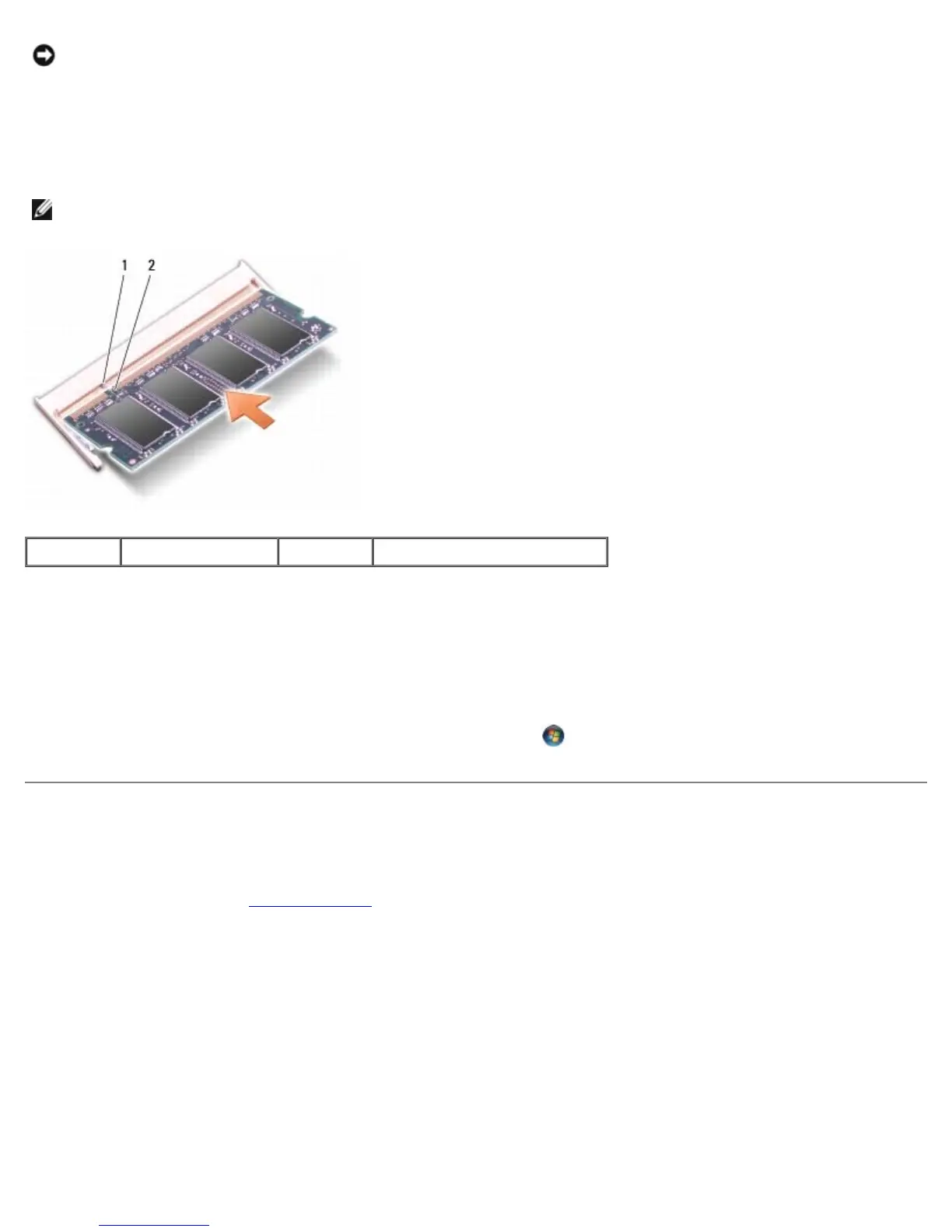

1 tab 2 notch
3. Replace the module cover.
4. Insert the battery into the battery bay, or connect the AC adapter to your computer and an electrical outlet.
5. Turn on the computer.
As the computer boots, it detects the additional memory and automatically updates the system configuration information.
To confirm the amount of memory installed in the computer, click Start
® Help and Support® Dell System
Information.
Removing the DIMM 2 Memory Module
The DIMM 2 memory module is located directly above the DIMM 1 memory module located on the bottom of the computer.
1. Follow the procedures in Before You Begin
.
2. Turn the computer over and loosen the three captive screws along with the M2.5 x 5-mm screw. Remove the module
cover.
