Dell XPS M1330 Service Manual

Pin Assignments for I/O Connectors: Dell XPS M1330 Service Manual
file:///C|/Users/SIIES/Downloads/Dell XPS 1330/pin.htm#wp999820[16/07/2010 06:30:46 p.m.]
Back to Contents Page

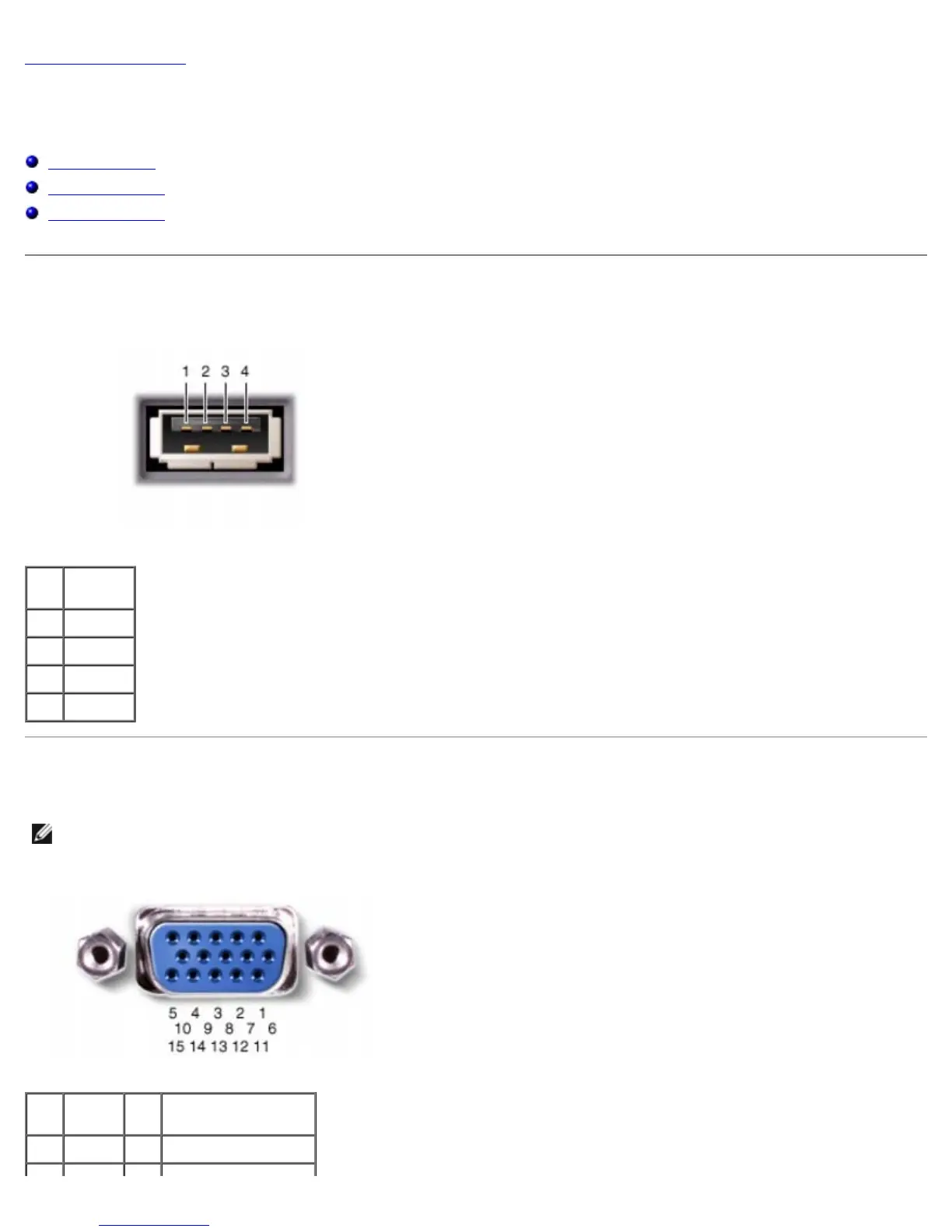

Pin Assignments for I/O Connectors
Dell™ XPS™ M1330 Service Manual
USB Connector
Video Connector
HDMI Connector
USB Connector
Pin Signal
1 USB5V+
2 USBP–
3 USBP+
4 GND
Video Connector
NOTE: The color of the video connector may vary in color between blue and black.
Pin Signal Pin Signal
1 CRT_R 9 5V+

Dell XPS M1330 Specifications

General

Processor	Intel Core 2 Duo (various models)
Display	13.3-inch
RAM	Up to 4GB DDR2
Optical Drive	Slot-loading DVD+/-RW
Card Reader	8-in-1 card reader
Resolution	1280 x 800
Graphics	Intel GMA X3100 or NVIDIA GeForce 8400M GS
Storage	64GB SSD
Operating System	Windows Vista
Weight	1.8 kg (4 pounds)
Battery	6-cell lithium-ion
Wireless	Wi-Fi 802.11a/g/n
Ports	HDMI, VGA, Ethernet
Bluetooth	Bluetooth 2.0
Audio	Integrated stereo speakers
Webcam	2.0 MP
Battery Life	Up to 4 hours
