The Frist Installation
1. Install the seven screws in the following order (Use the screws in the parts bag.):
1.1 Six screws installed through the front frame;
1.2 One screw installed in the rear base.

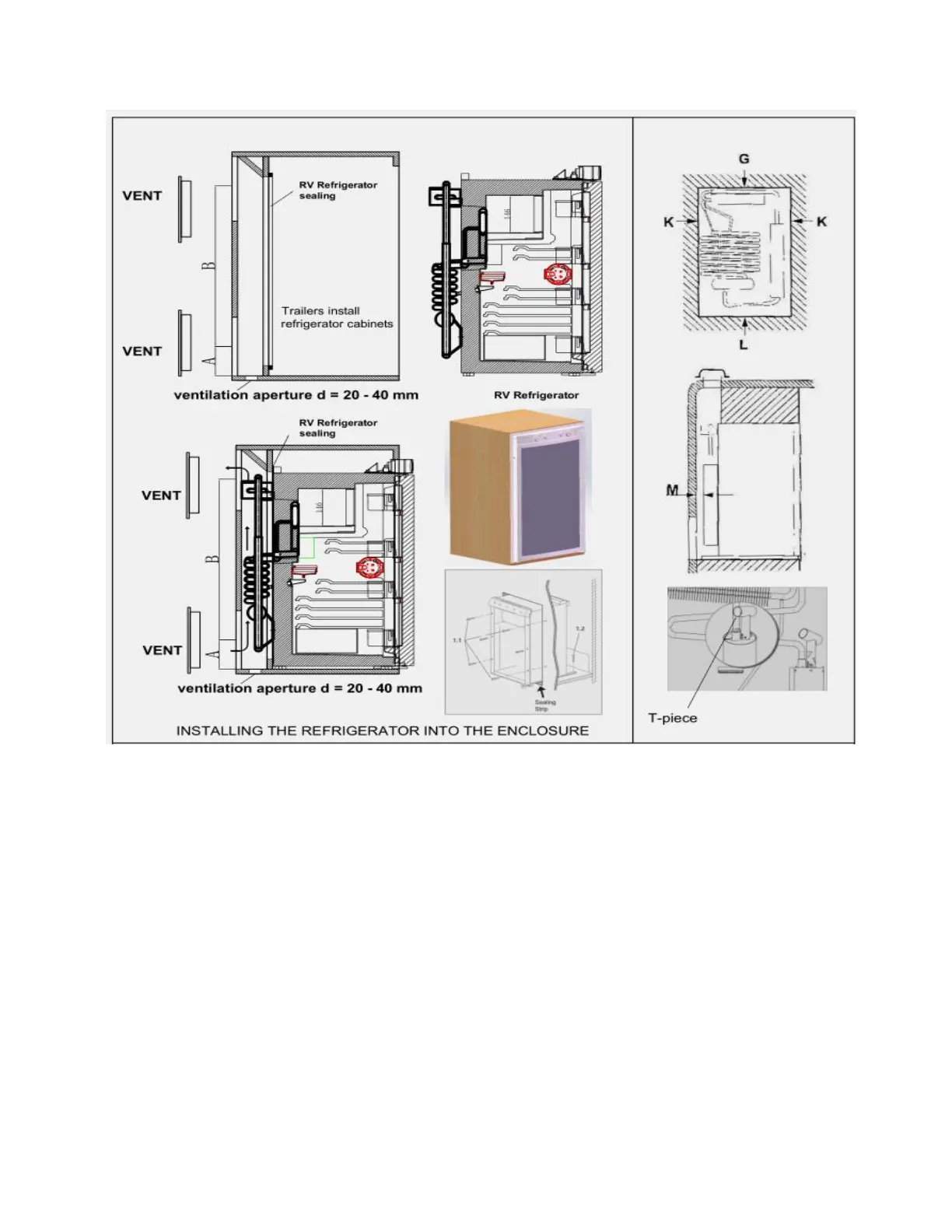

2. To install the ventilation grills, cut two rectangles17.8" x 6.2” (452 mm x 158 mm) in the outer wall of the vehicle. The
distance between the two holes is defined as: take the bottom of the refrigerator cabinet as the reference for opening,
size A is 3.1" (79mm), and size B is 24.1" (612mm); The ventilation grilles must have an open cross section of at least
400 cm².
3. The refrigerator is certified to operate in an enclosure with zero clearance to combustible materials refrigerator as
illustrated in for the top (G), sides (K), bottom (L) of the refrigerator; Allow a gap of 0.6- 0.8" (15-20 mm) between the
back wall (M) of the recess and the refrigeration unit.
4. The exhaust gas duct system must be made in such a manner as to achieve a complete extraction of combustion
products to the outside of living space. The flue gas is vented directly through the upper grille. Do not use any kind of
aluminium flue pipe to lead the flue gas out. The T-piece must be turned towards the outer wall.
5. The opening of the enclosure for installation should be at least 20.7" (526 mm) wide, 22.8" (580mm) deep and 29.8"
(758mm) high.
