3. Installation Instructions
（
See the schedule 1. 2
）
1. The refrigerator is designed to install into enclosure in the vehicle. No clearance is required on both sides. Bottom must be
leveled very well. Particularly a cut-out should be left for hinge to access.
2. The floor must be solid and level and must be able to support the weight of the refrigerator and contents. Never install the
refrigerator directly on carpeting.
3. When installing the refrigerator into the enclosure recess, all areas within the recess must be sealed to prevent exhaust fumes
from entering the living space. It is recommended to use sponge strip to seal the rear part, including the combustion system, from
the living space. Make sure the sponge is compressed well for good seal.
4. A T shape exhaust pipe extension is provided and should be fitted.
5. The refrigerator must be secured in place with four screws, two on each side.
6. The opening of the enclosure for installation should be at least 20.7
"
（526 mm）wide, 22.8
"
(580mm) deep and 29.8
"
(758mm)
high.
7. A lower vent and an upper vent are required for ventilation. Opening of the both vents should be 250cm
2
minimum.
8. After installation, the connection of main supply shall be accessible and the plug can be easily unplugged.

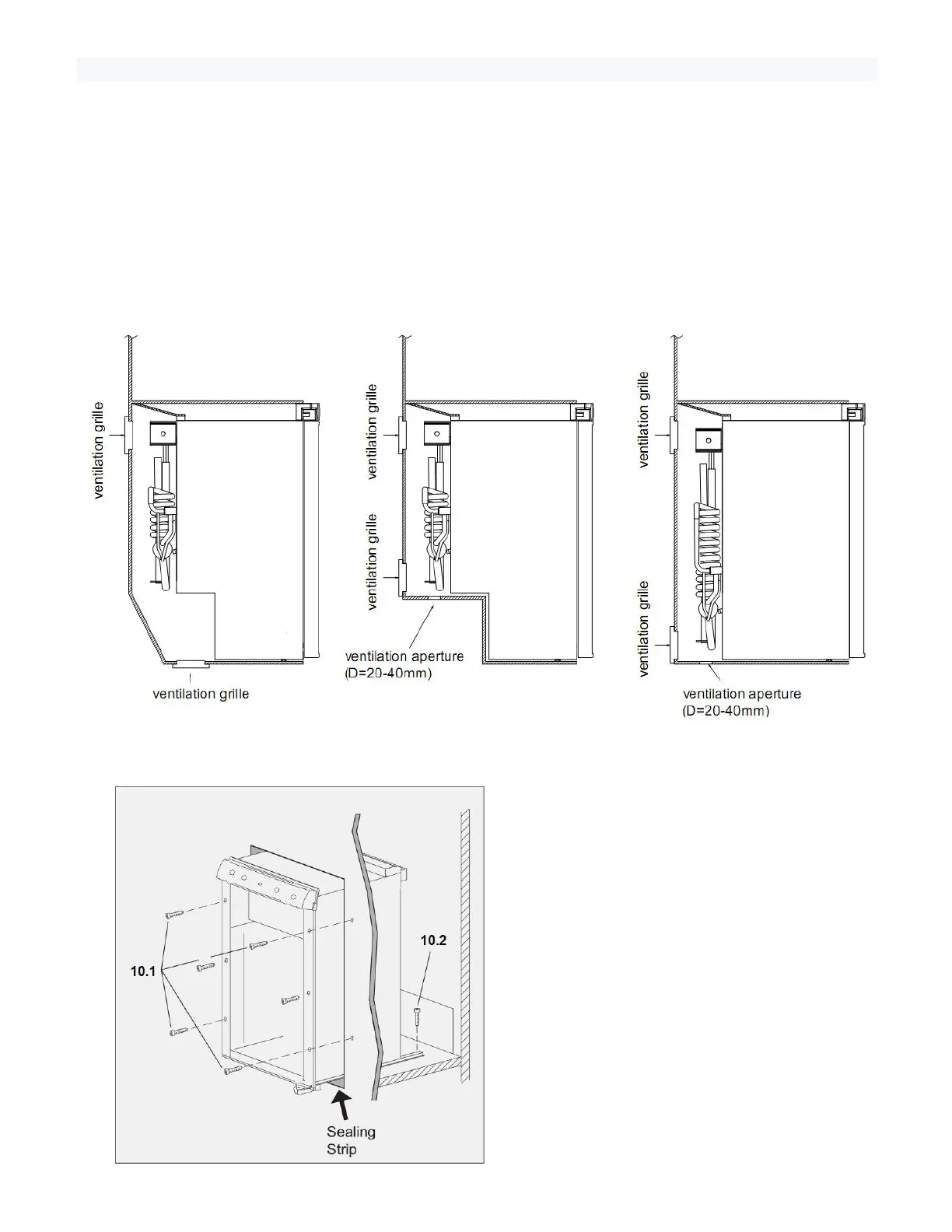

9. Three typical installations are illustrated as below.
10. Install the seven screws in the following order (Use the screws in the parts bag):
10.1 Six screws installed through the front frame;
10.2 One screw installed in the rear base.
7
