REMOVING THE OVEN
DOOR - Type “B”
To facilitate oven cleaning, it is possible
to remove the door.
Please follow the instructions carefully:
■ Open the door completely.

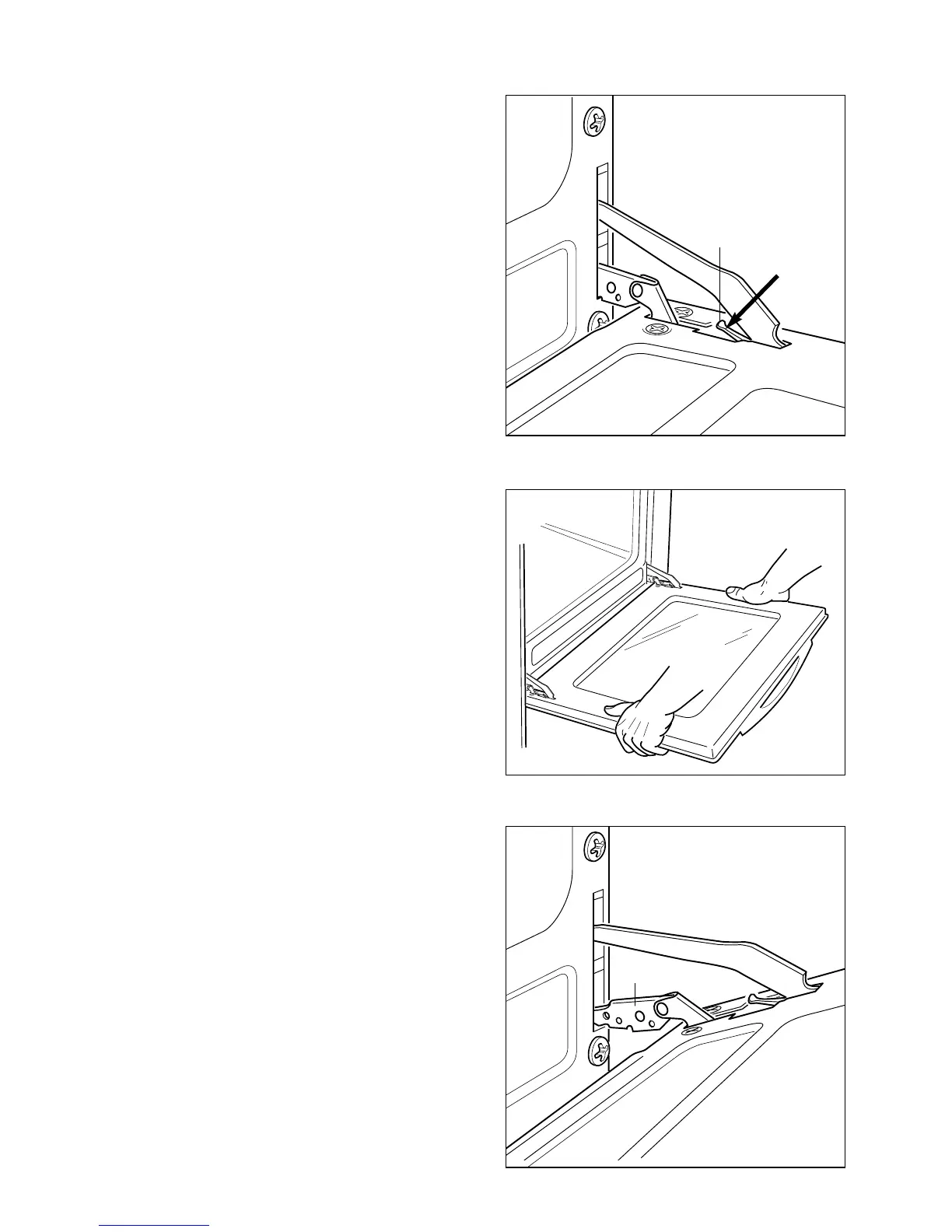

■ Push down the lever “L” (fig. 28) and,
keeping it in this position, slowly
close the door in order to block the
hinge.
■ Grip the door (as indicated in fig. 29)
and, while closing it, release the two
hinges as shown in fig. 30.
DOOR ASSEMBLY
■ Grip the door with your hands
placed near the hinges and raise the
levers “H” with your forefingers (fig.
30)
■ Insert the hinges in their position until
levers “H” are hooked.
■ Open the door completely to obtain
the release of levers “L”.
Figure 30
Figure 28
Figure 29
