HALOGEN HOTPLATE
Incorporating 1 halogen lamp and 2 heat-
ing elements (fig. 8 - type A or fig. 9-type
B).
Instantly reaches the working temperature.
Controlled by energy regulator switch.
HALOGEN HOTPLATE
CONTROL KNOB

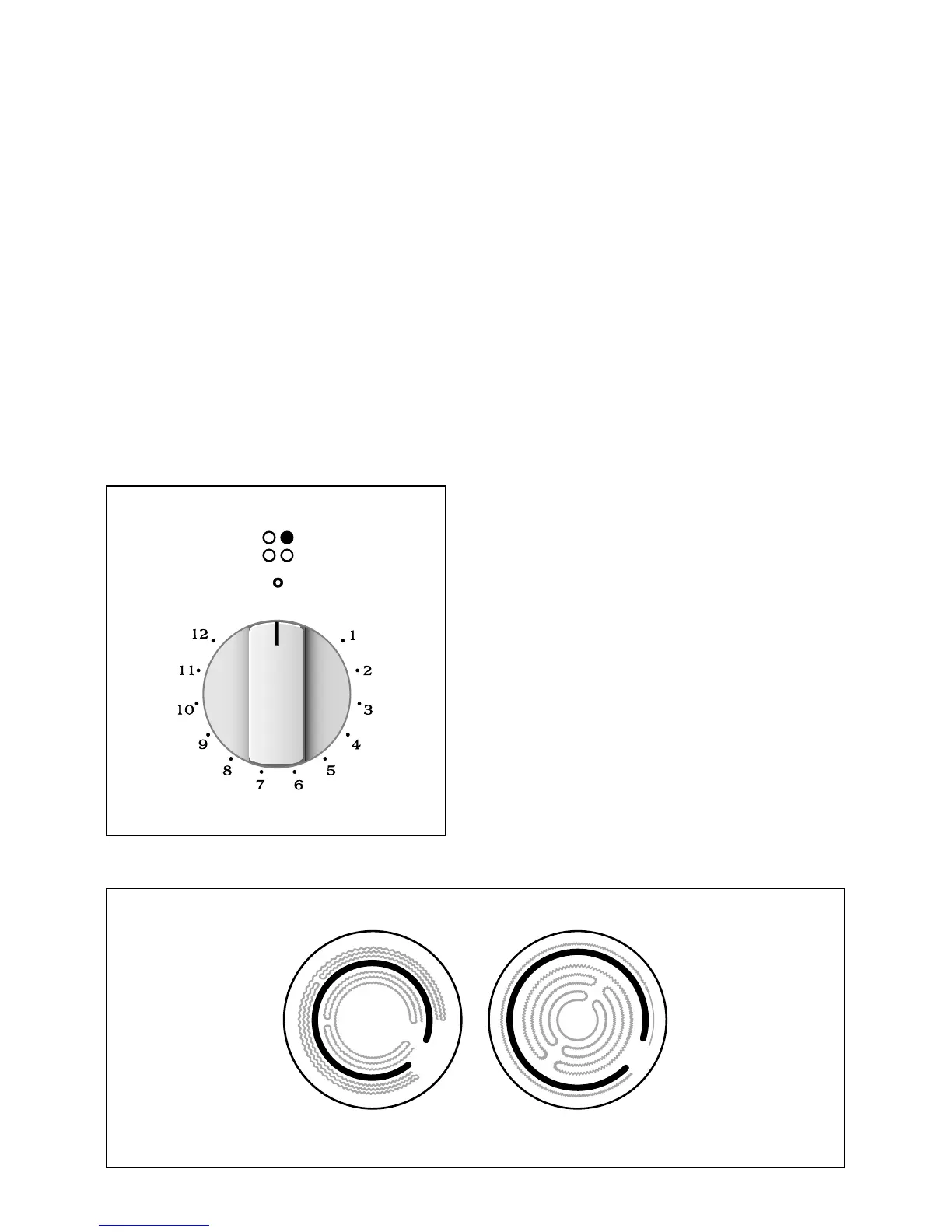

The halogen hotplate is controlled by a
energy regulator switch (fig. 7).
The heat power of the halogen hot-
plate can be adjusted within steps from
“0” to its max “12”.
Type A
Type B
