DeLonghi D 61 E - Wiring Diagram; Electric Diagram Key

33
ELECTRIC DIAGRAM KEY
F1 Oven switch
F2/3/5 Radiant heaters switches
F4 Halogen regulator
LF Oven lamp
TM Oven thermostat
TL Oven thermolimiter
PR Programmer
C Top element
G Grill element
S Bottom element
V Fan
CIR Circular element
CR Residual heat lamps
S1 Thermostat pilot lamp
S2 Radiant heaters pilot lamp
P1/P2/P4 Radiant heaters
P3 Halogen heater
CF Cooling fan
M Terminal block
T Earth plant
3
4
21
3
4
21
F2
F3
F4
F5
S2
PR
S1
F1
P1
P2
P3
P4
3 421
CR
1
6
1a
6a
4
9
4a
9a
3
8
3a
8a
2
7
2a
7a
5
10
11
5a
10a
11a
TL
C
G
S
V
CIR
TM
LF
CF
1
4
3
2
5
P2
P1
P3
1
4
3
2
5
P2
P1
P3
1
4
3
2
5
P2
P1
P3
N/7
1
1a
L/8
5
4321
M
S1
S2
4
P1
P2
PILOT
2
T
1131309

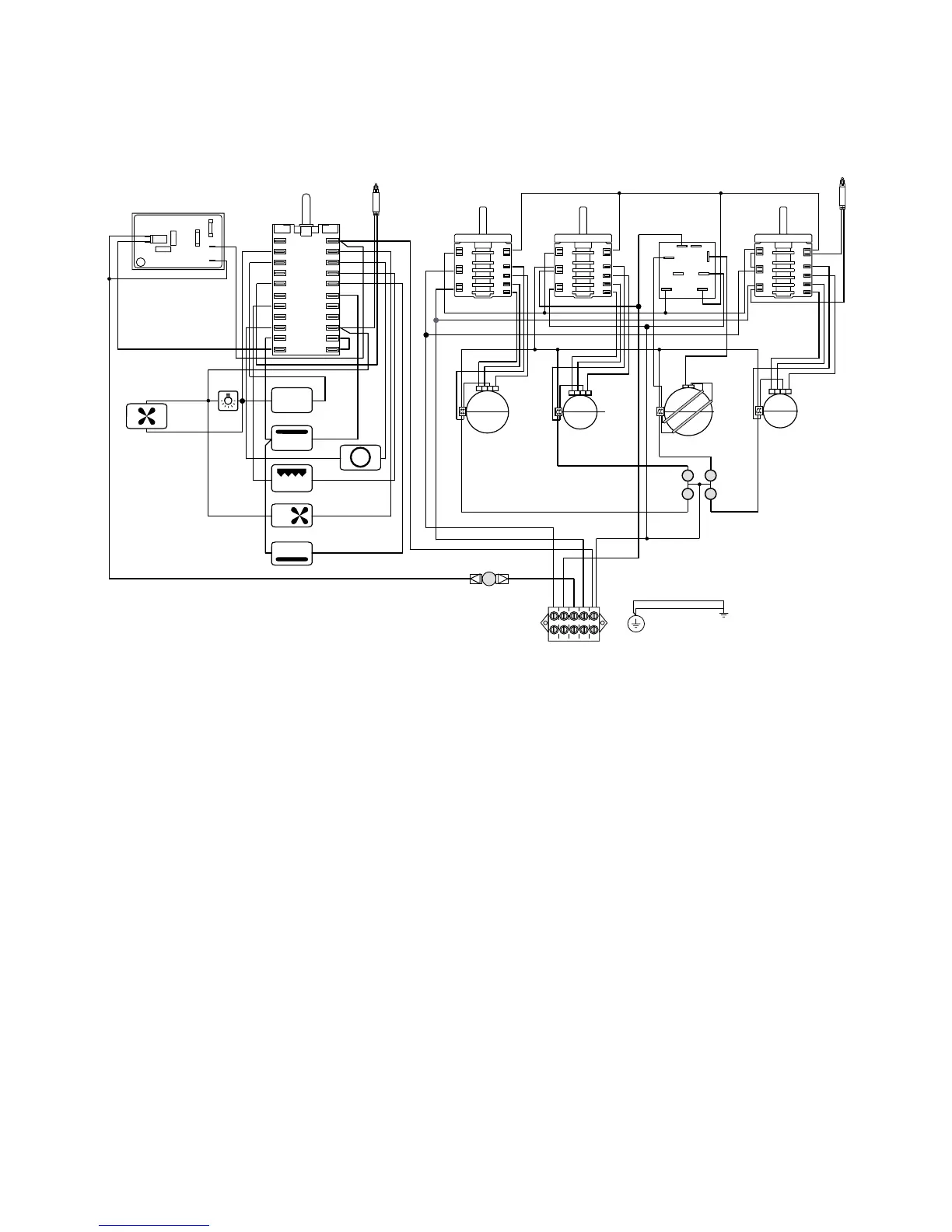

WIRING DIAGRAM
Figure 32
