Figure 8
ANTI-TILT BRACKET

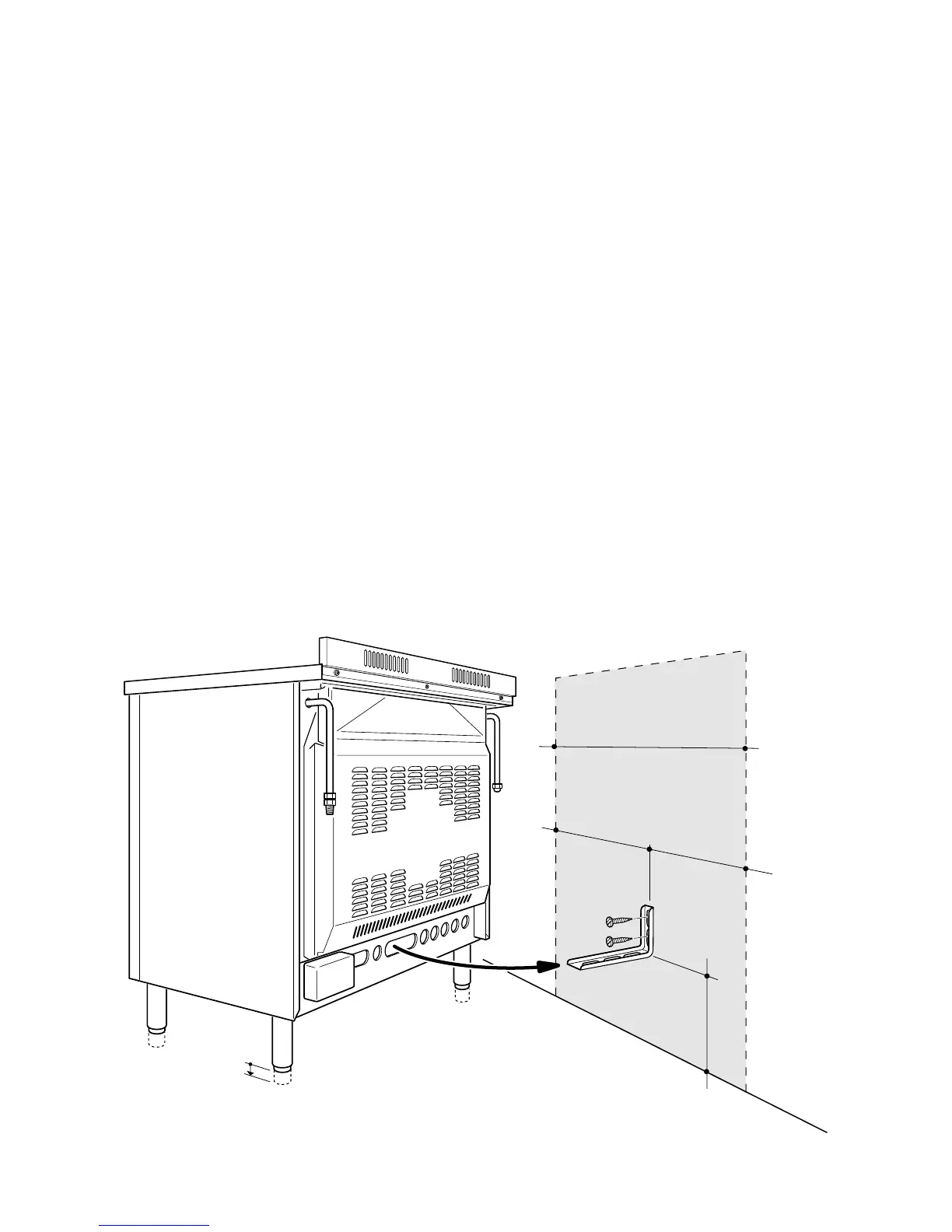

Fixing the anti-tilt bracket:
■ After you have located where the cooker is to be positioned mark, on the wall,
the place where the 2 screws of the anti-tilt bracket have to be fitted. Please fol-
low the indications given in the drawing below.
■ Make two holes of diameter 8mm diameter on the wall and insert the plastic
plugs.
■ Attach the anti-tilt bracket loosely by means of 2 screws.
■ Move the cooker to the wall and adjust the height of the anti-tilt bracket so that
it can engage in one slot of the cooker back.
■ Attach the anti-tilt bracket tight.
■ Push the cooker against the wall so that the anti-tilt bracket is fully inserted in
one slot of the cooker back.
