DeLonghi DFS 090 SO - Control Panel Layout and Functions

5
2 Control panel
A
U
T
O
12
10
45 7 8 9

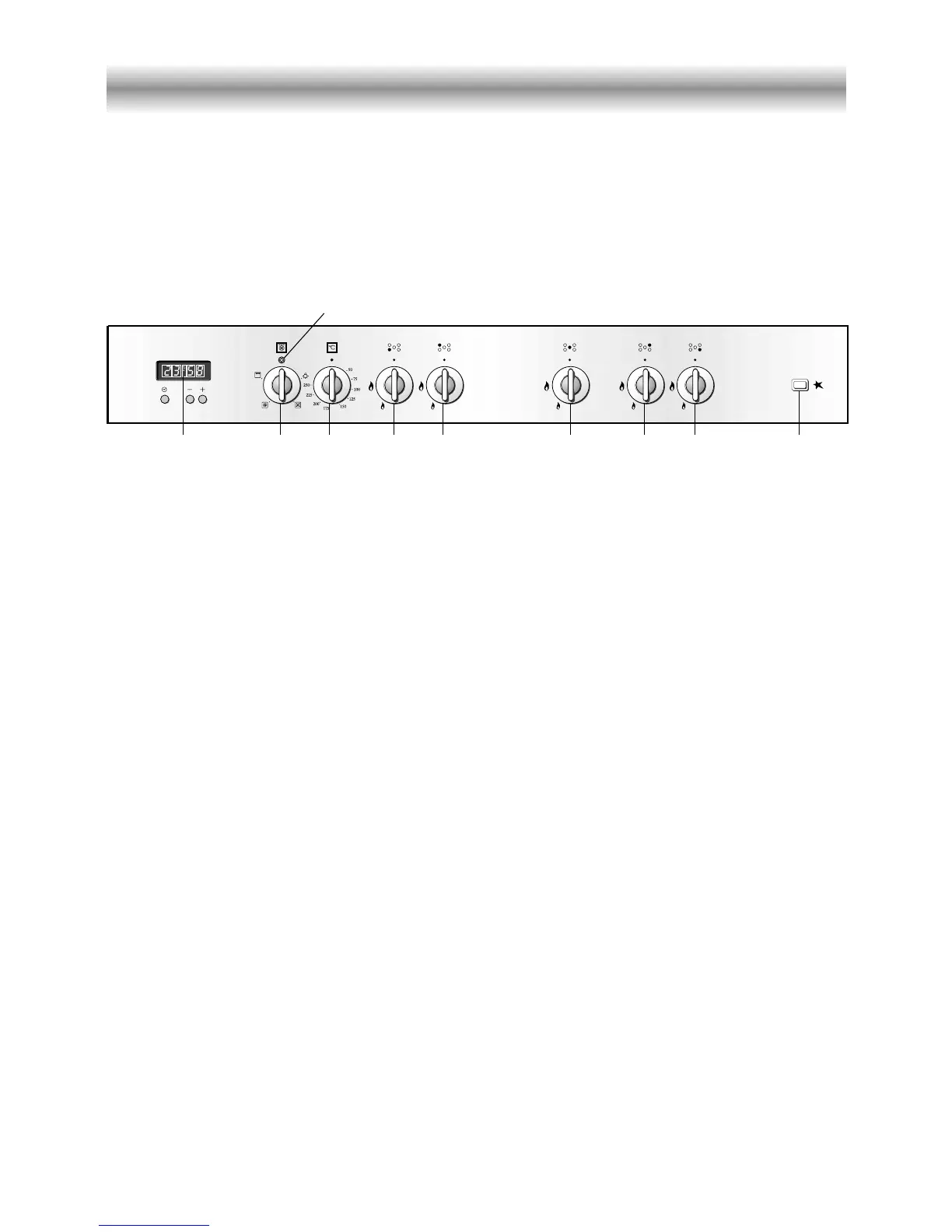

CONTROL PANEL - Controls description
1. Electronic clock/end cooking timer
2. Fan oven switch knob
3. Fan oven thermostat knob
4. Front left burner control knob
5. Rear left burner control knob
6. Central burner control knob
7. Rear right burner control knob
8. Front right burner control knob
Pushbutton and pilot lamps:
9. Electronic ignition pushbutton
10. Oven indicator light
3
Fig. 2.1
