DeLonghi DOUBLE OVEN - Page 47

47
D
Fig. 6.13
Fig. 6.10
Fig. 6.9
E
F
Fig. 6.12
H
Fig. 6.11
A
Fig. 6.14
G
The top oven
door has a
sealed gasket
in the top part.
It is normal the opened gap between the
top edge of the inner glass and the sealed
gasket. This allows the cooling air
circulation.

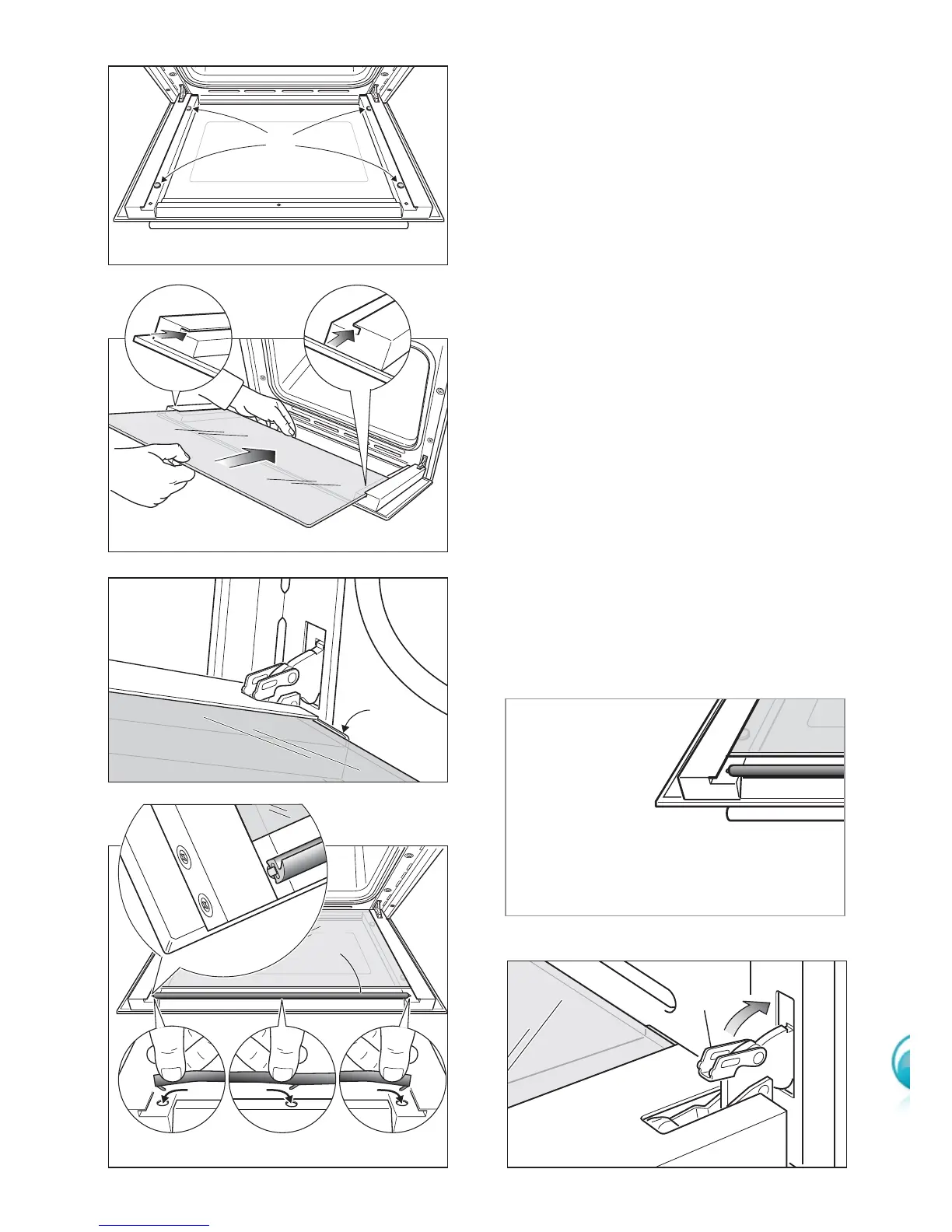

REPLACING THE INNER PANE OF
GLASS
1. Make sure the door is locked open
(see figs. 6.4, 6.5, 6.6).
2. Replace the inner pane:
• Check that the four rubber pads are
in place (D in Fig. 6.9)
• Check that you are holding the pane
the correct way. You should be able
to read the wording on it as it faces
you.
• Insert the pane in the left E and right
F slide guides (fig. 6.10), and gently
slide it to the retainers H (fig. 6.11).
• Replace the seal G by hooking in the
three fixing hooks (fig. 6.13).
Make sure that you put it in the correct
way. (Fig. 6.12).
• Unlock the oven door by opening it
completely and closing the lever A on
the left and right hinges (Fig. 6.14),
