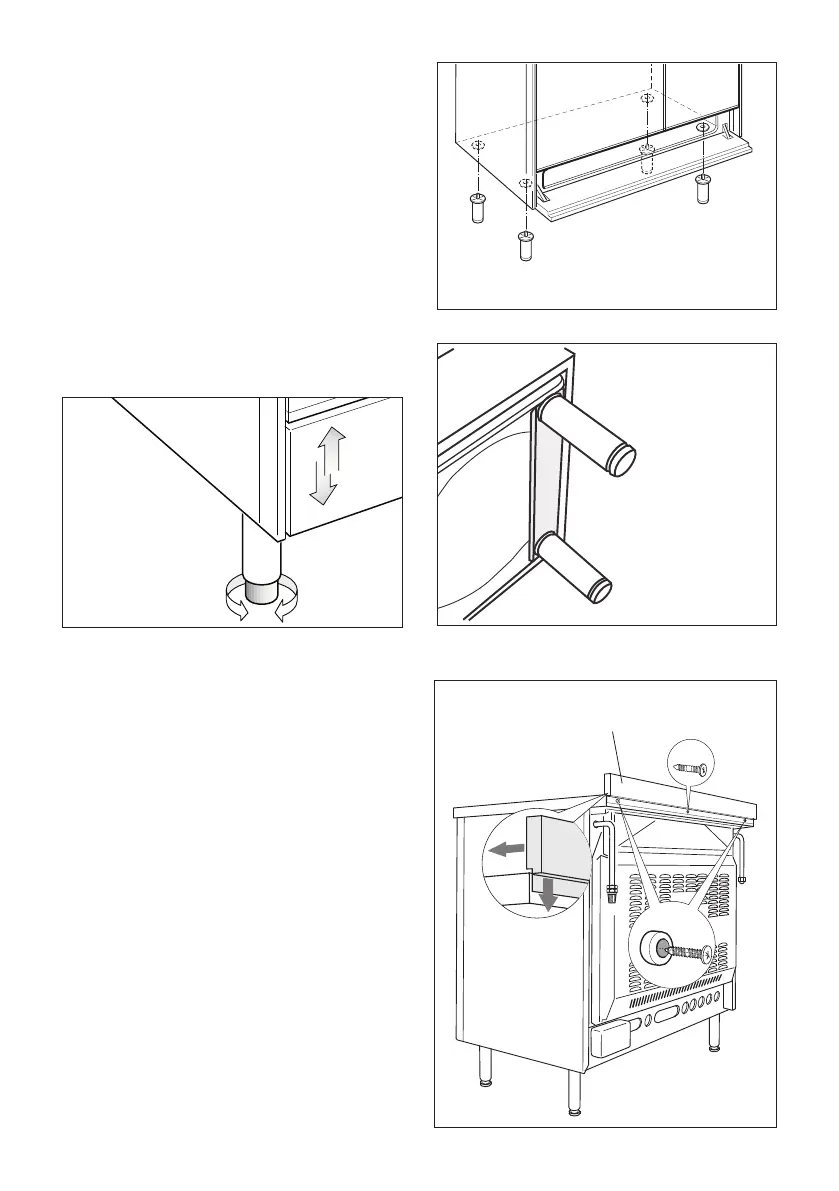

FITTING THE ADJUSTABLE FEET
The adjustable feet must be tted to the
base of the cooker before use (g. 1.2).
Rest the rear of the cooker on a piece of
the polystyrene packaging exposing the
base for the tting of the feet.
Fit the 4 legs by screwing them tight into
the support base as shown in gure 1.3.
LEVELLING THE COOKER
The cooker may be levelled by screwing
the lower ends of the feet IN or OUT (g.
1.4).
Fig. 1.4
Fig. 1.3
Fig. 1.2
C
B
A
Fig. 1.4
BACKGUARD (SUPPLIED WITH
SOME MODELS ONLY)
Before installing the cooker, assemble the
backguard “C” (g. 1.4).
• The backguard “C” can be found
packed at the rear of the cooker.
• Before assembling remove any
protective lm/adhesive tape.
• Remove the two spacers “A” and the
screw “B” from the rear of the cooktop.
• Assemble the backguard as shown
in gure 1.4 and x it by screwing the
central screw “B” and the spacers “A”.
