Please note: This appliance incorporates a safety cooling fan which you will hear operating
whenever the oven or grill is being used.
The cooling fan may even run on after the appliance has been switched o.
The duration of this time is dependent on several factors, including previous cooking
temperature, duration and ambient temperature. Times in excess of 30 minutes are not
uncommon
2 - CONTROL PANEL

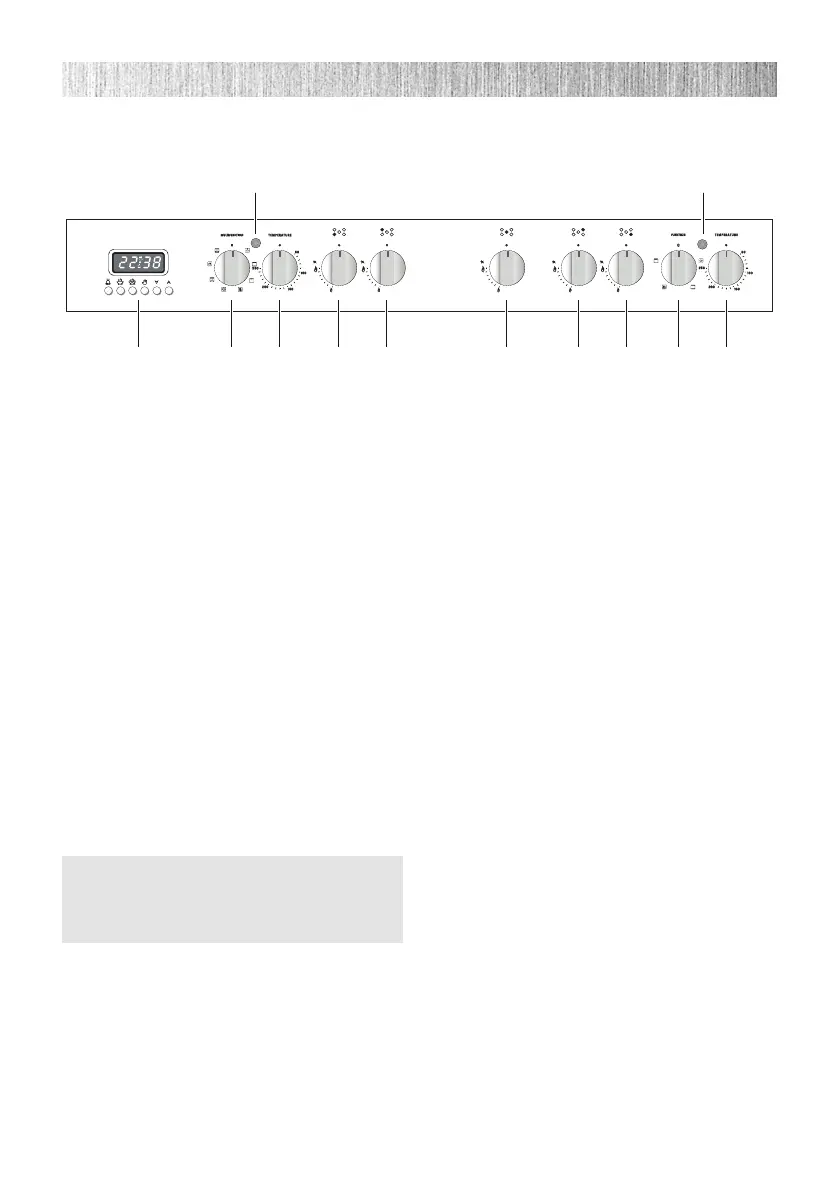

Fig. 2.1
CONTROL PANEL - Controls description
1. Conventional oven thermostat knob (right oven)
2. Conventional oven switch knob (right oven)
3. Front right burner control knob
4. Rear right burner control knob
5. Central burner control knob
6. Rear left burner control knob
7. Front left burner control knob
8. Multifunction oven thermostat knob
(left oven)
9. Multifunction oven switch knob
(left oven)
10. Electronic clock/programmer
(left main oven only)
Pilot lamps:
11. Multifunction oven temperature indicator light
(left oven)
12. Conventional oven temperature indicator light
(
right oven
)
NOTE:
The knob and symbols may vary.
6 5 4 3 1278910
11 12
A
U
T
O
