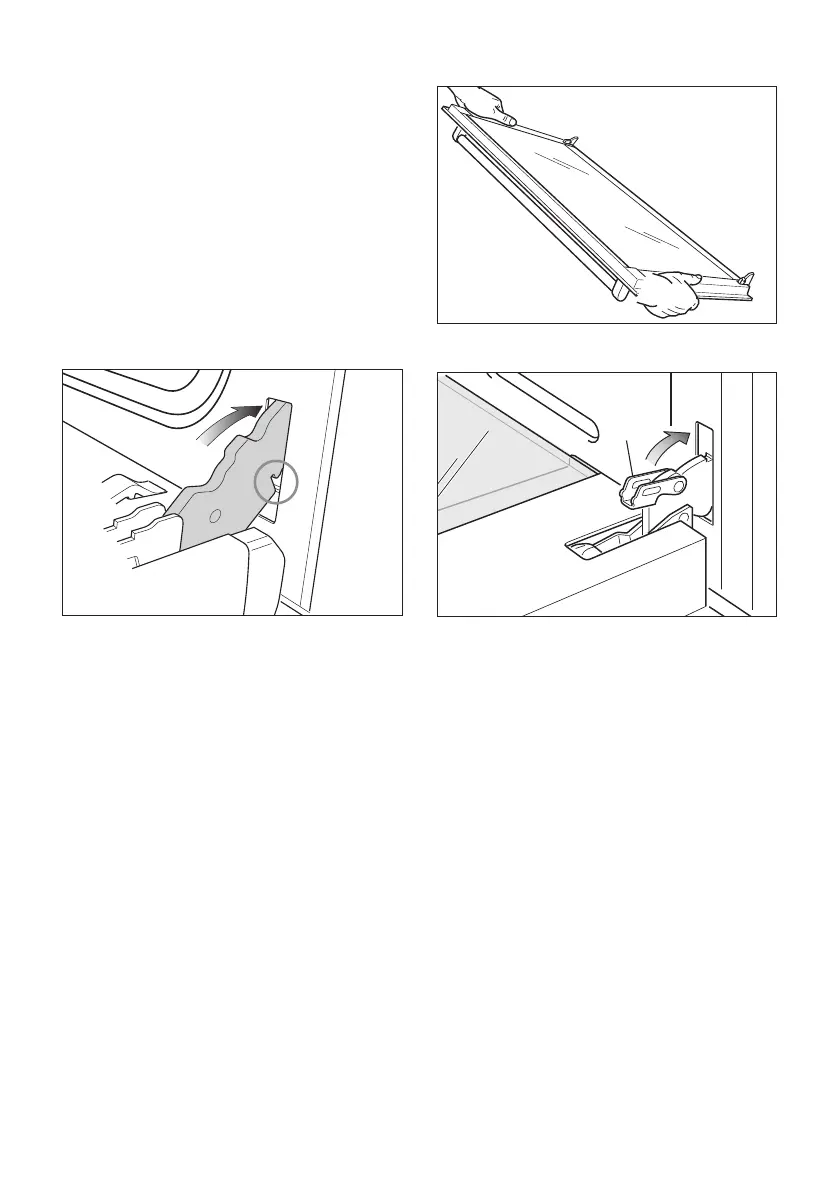

REFIT THE DOOR
• Hold the door rmly (g. 8.11a).
• Insert the hinge tongues into the slots,
making sure that the groove drops into
place as shown in the g. 8.11b.
• Open the door to its full extent.
• Fully close the levers “A” on the left
and right hinges, as shown in the
gure g. 8.11c.
• Close the door and check that it is
properly in place.
Fig. 8.11a
Fig. 8.11b
Fig. 8.11c
