DELTA DORE PACK TYXIA 541 - Connection Instructions for IN1 - COM - IN2 Terminals

28
2/ Receiver installation

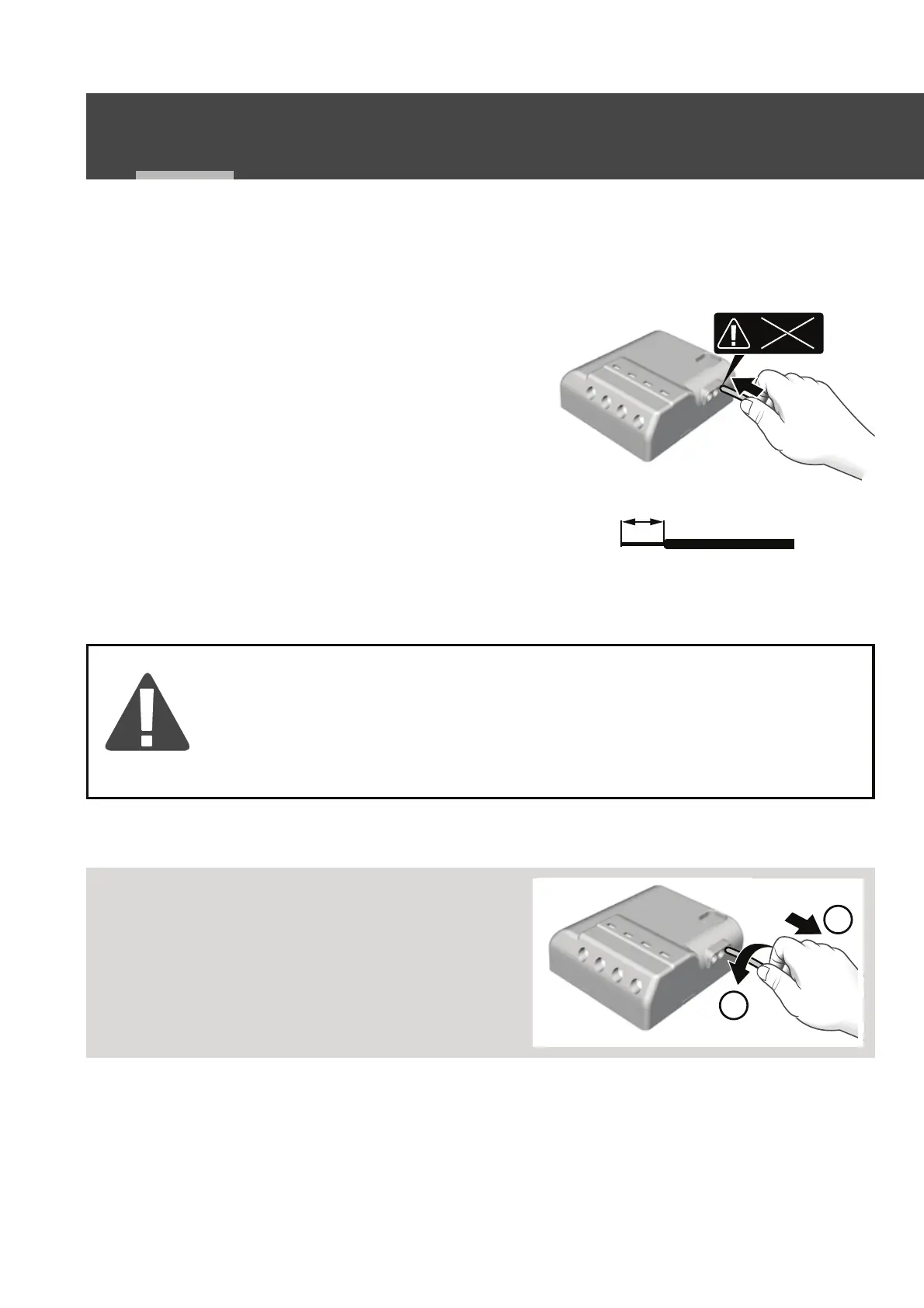

2.2 Connection instructions
for IN1 - COM - IN2 terminals
Use the wires supplied.
Push the wire fully
into the terminal.
Do not strip the wires when they are con-
nected to the product as you
could damage the internal connector.
2
7mm
0,5 mm
KY31A02
1
2
3
4
230V
Removal
recommendations
Turn the wire
while pulling on it.
1
2
1
2
