EN
29

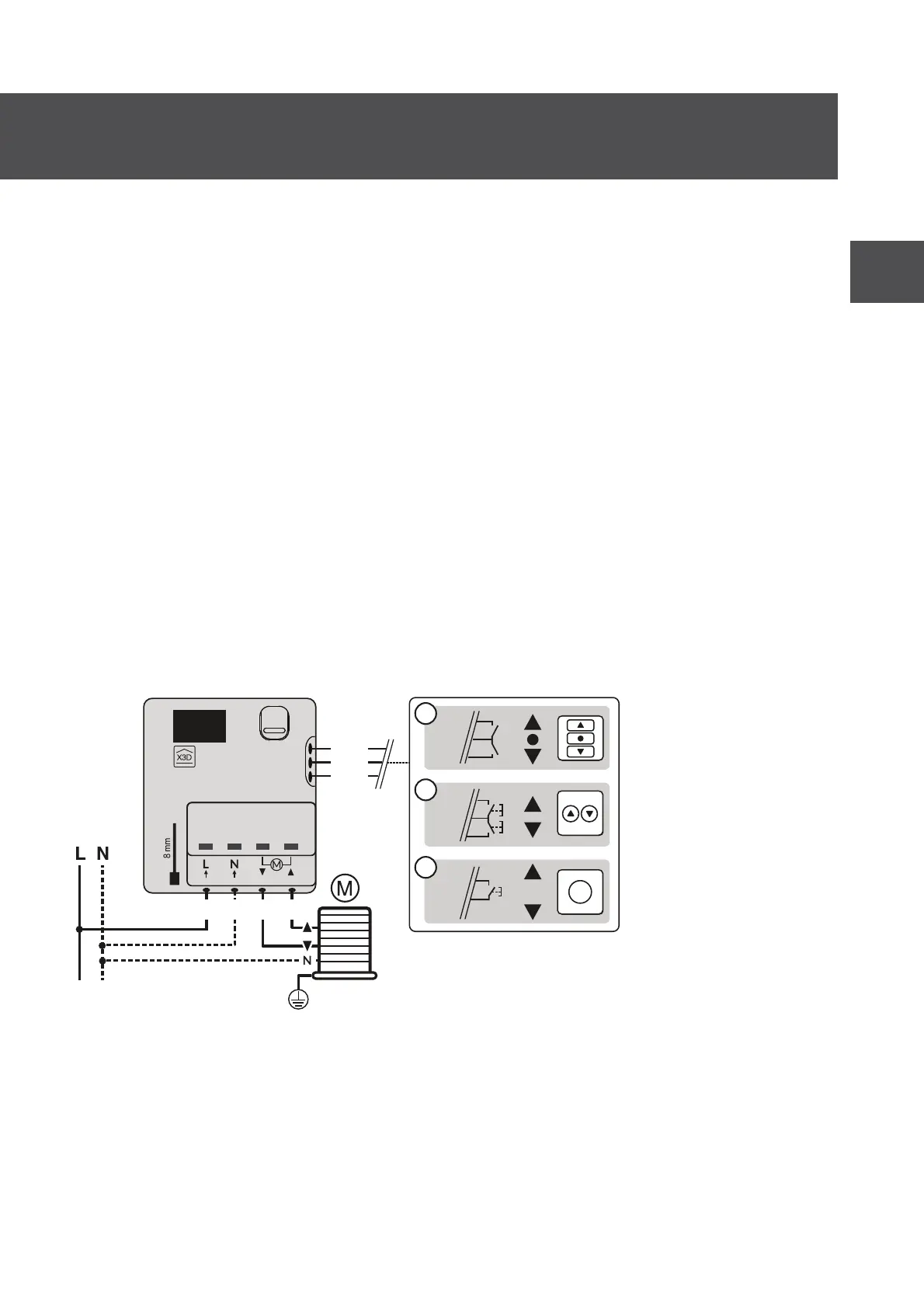

2.3 Connection
Connect the motor control wires
to terminals 3 and 4 (motor lowering control wire
to terminal 3, raising control wire to terminal 4).
Connect the switch to the IN1 - COM - IN2 termi-
nals.
Connect the 230 V power supply to terminals 1
and 2.
Switch the installation power back on to continue
with the association operation.
230 V~
IN1
COM
IN2
1234
TYXIA
1234
IN1
COM
IN2
IN1
COM
IN2
IN1
COM
1
2
3
1
2
1
2
Hold switch
Double push-but-
ton
Push button
