Chapter 1 Introduction|
1-4 Revision August 2008, 2ELE, V1.02

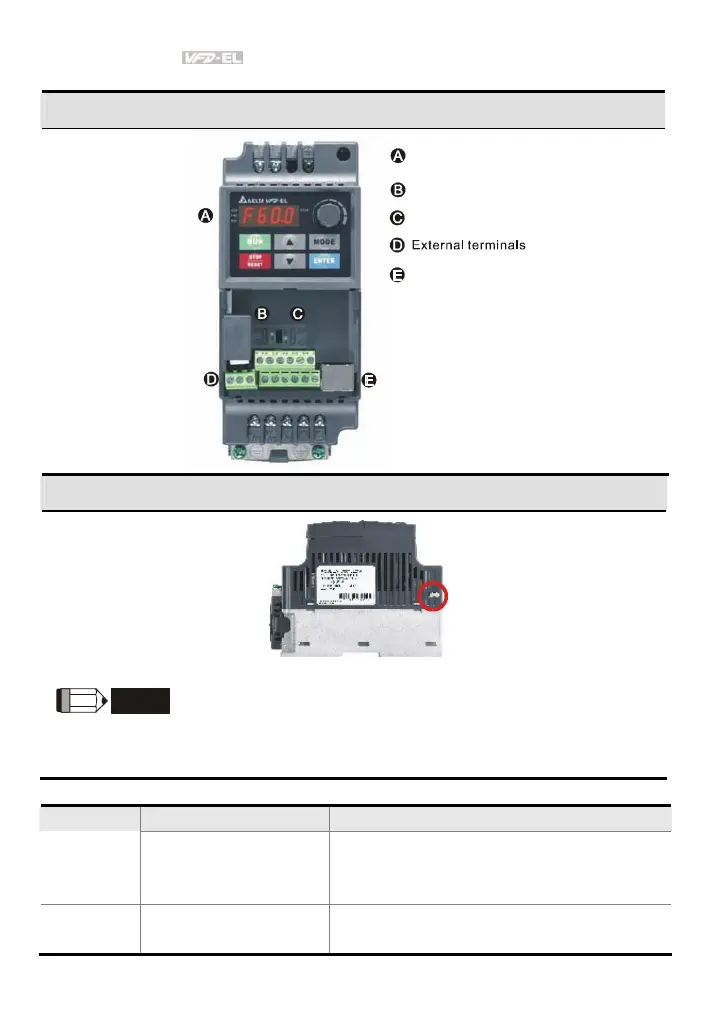

Internal Structure
Digital keypad
ACI/AVI
RS485 port (RJ-45)
NPN/PNP
RFI Jumper Location
at the right side
NOTE
RFI jumper is near the input terminals as shown in the above figure and can be removed by taking
off screws.
Frame Power range Models
A 0.25-2hp (0.2-1.5kW)
VFD002EL11A/21A/23A,
VFD004EL11A/21A/23A/43A,
VFD007EL21A/23A/43A, VFD015EL23A/43A
B 1-5hp (0.75-3.7kW)
VFD007EL11A, VFD015EL21A,
VFD022EL21A/23A/43A, VFD037EL23A/43A
