Delta Electronics AC Motor Drive VFD-EL

Chapter 3 Keypad and Start Up|
3-4 Revision August 2008, 2ELE, V1.02

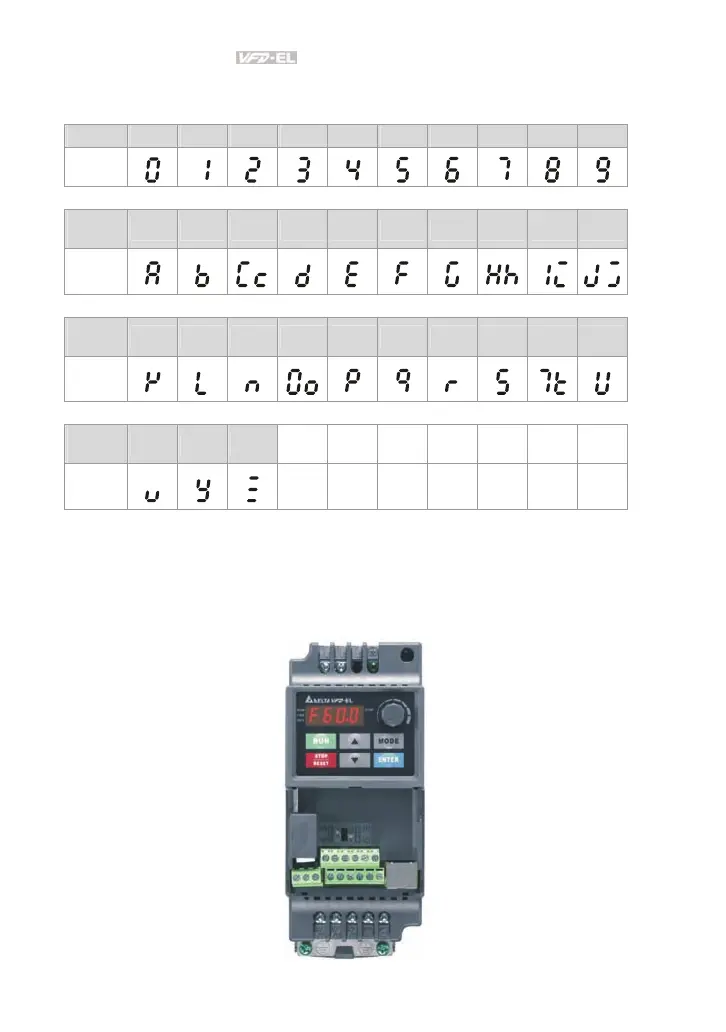

3.3 Reference Table for the 7-segment LED Display of the Digital Keypad
Digit 0 1 2 3 4 5 6 7 8 9
LED
Display
English
alphabet
A b Cc d E F G Hh Ii Jj
LED
Display
English
alphabet
K L n Oo P q r S Tt U
LED
Display
English
alphabet
v Y Z
LED
Display
3.4 Operation Method
The operation method can be set via communication, control terminals and digital keypad.
