Chapter 6 Control Modes of Operation|ASDA-A&A+ Series
Revision April 2009 6-45

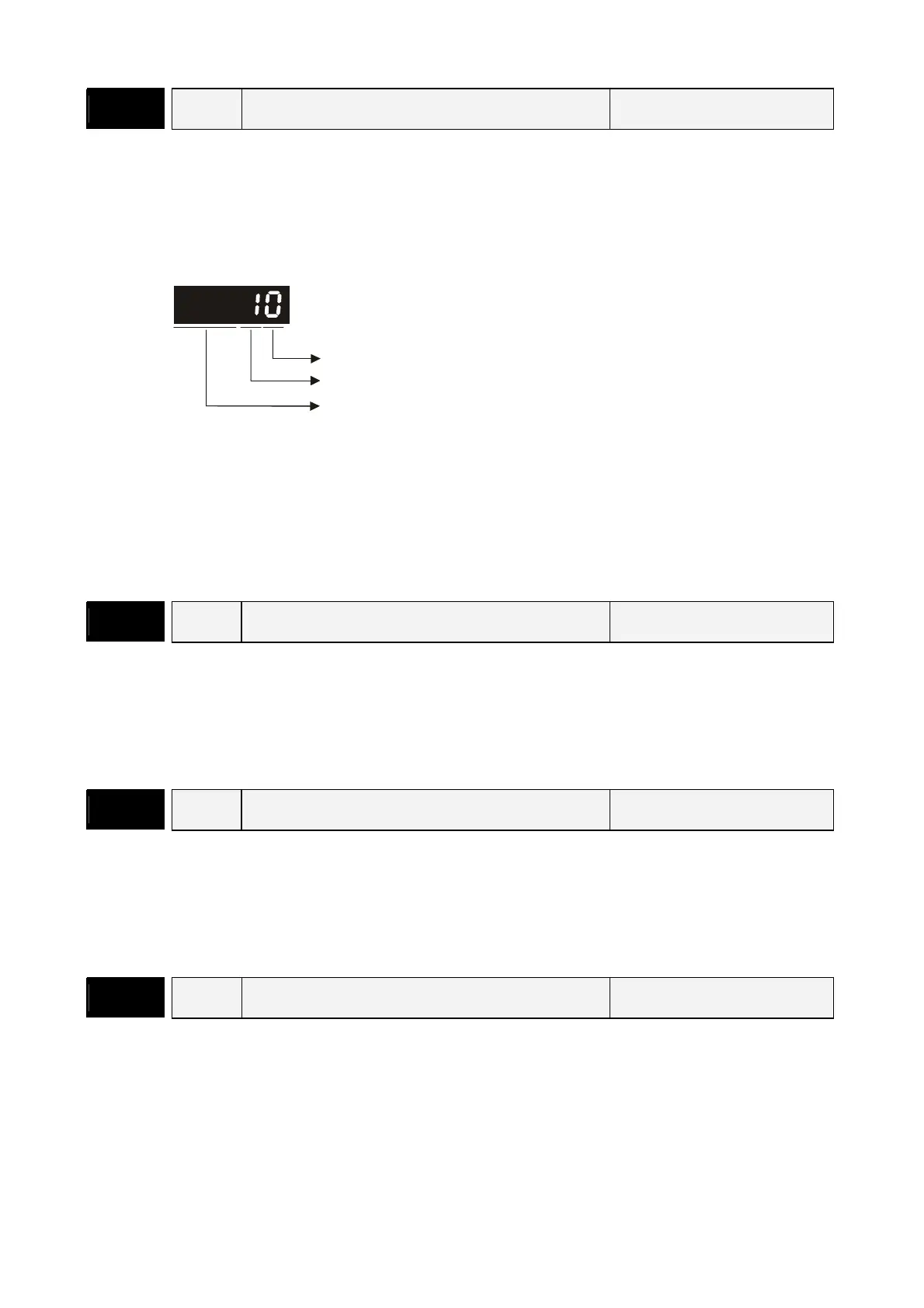

P1 - 03
AOUT Pulse Output Polarity Setting Communication Addr.: 0103H
Default: 0 Related Section:
Applicable Control Mode: ALL Section 3.3.3
Unit: N/A
Range: 0 ~ 1
Settings:
not used
B
A: Monitor analog output polarity
A=0: MON1(+), MON2(+)
A=1: MON1(+), MON2(-)
A=2: MON1(-), MON2(+)
A=3: MON1(-), MON2(-)
B: Position pulse output polarity
B=0: Forward output
B=1: Reverse output
P1 - 04
MON1 Analog Monitor Output Proportion 1 (CH1) Communication Addr.: 0104H
Default: 100 Related Section:
Applicable Control Mode: ALL Section 6.4.4
Unit: % (full scale)
Range: 0 ~ 100
P1 - 05
MON2 Analog Monitor Output Proportion 2 (CH2) Communication Addr.: 0105H
Default: 100 Related Section:
Applicable Control Mode: ALL Section 6.4.4
Unit: % (full scale)
Range: 0 ~ 100
P4 - 20
DOF1 Analog Monitor Output Drift Adjustment (CH1) Communication Addr.: 0414H
Default: Factory setting Related Section:
Applicable Control Mode: ALL Section 6.4.4
Unit: mV
Range: -800~800
Settings:
When P2-08 is set to 10, users cannot reset this parameter.
